January 2016
WorkCentre 4150/4250/4260/4265WorkCentre 4150/4250/4260WorkCentre
PL 12.45
Parts List

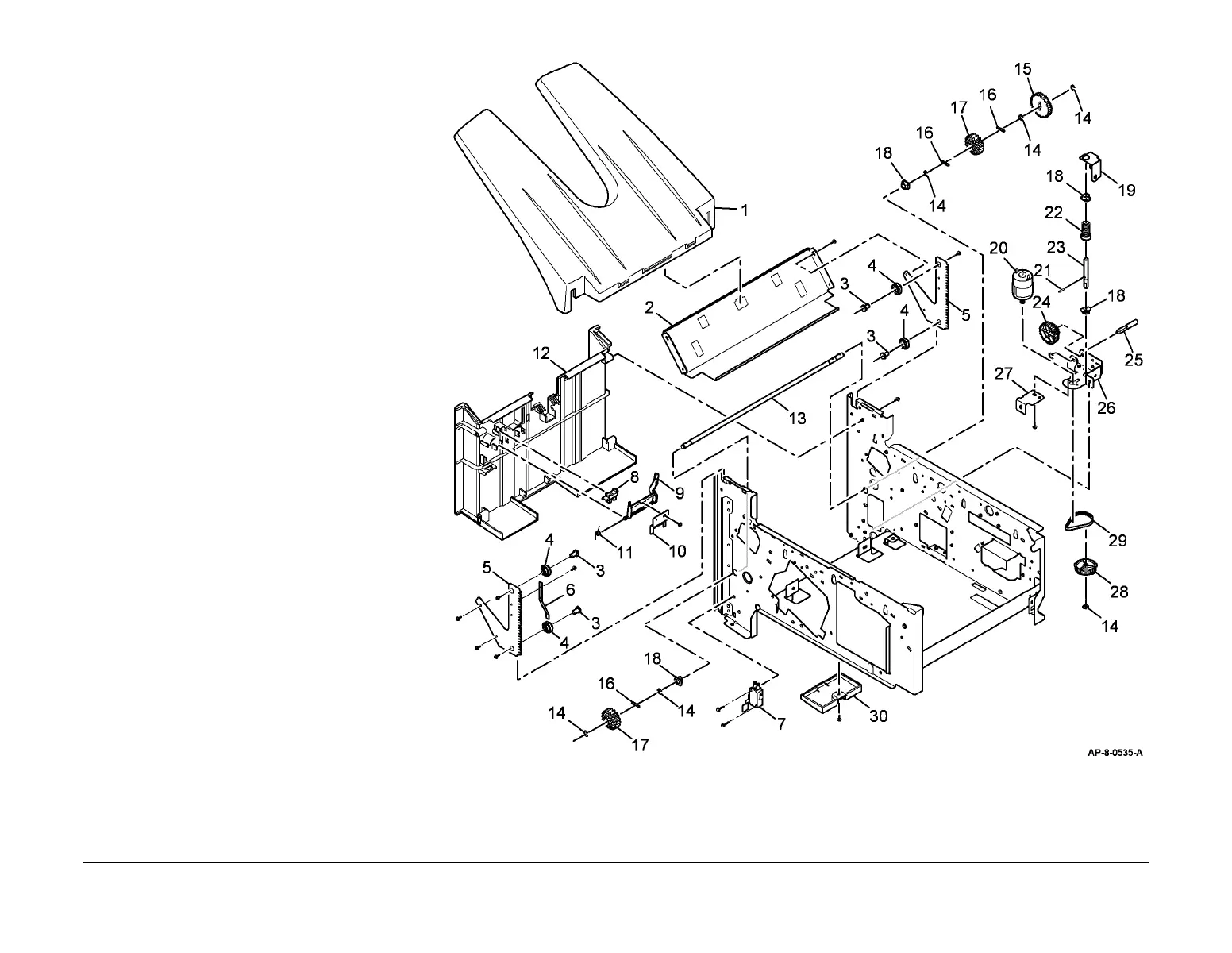

PL 12.45 Stacker Assembly
Item Part Description
1 050N00489 Stacker tray
2 – Tray support (P/O PL 12.50 Item 1)
3 – Stud (P/O PL 12.50 Item 1)
4– Roller (P/O PL 12.50 Item 1)
5 – Rack bracket (P/O PL 12.50 Item 1)
6 – Grounding strip (P/O PL 12.50 Item
1)
7 050N00490 Stacker bottom switch (S12-845)
8 130N01274 Stacker top sensor (Q12-840)
9 – Actuator (P/O PL 12.50 Item 1)
10 – Retainer (P/O PL 12.50 Item 1)
11 – spring (P/O PL 12.50 Item 1)
12 – Left cover (P/O PL 12.50 Item 1)
13 – Drive shaft (P/O PL 12.50 Item 1)
14 – E-Clip (Not Spared)
15 007N01491 Gear 35T (REP 12.9)
16 – Pin (2x14) (P/O PL 12.50 Item 1)
17 007N01490 Pinion gear (REP 12.9)
18 – Bearing (P/O PL 12.50 Item 1)
19 – Worm gear bracket (P/O PL 12.50
Item 1)
20 127N07494 Stacker tray motor (MOT 12-600)
(REP 12.9)
21 – Pin (2x10) (P/O PL 12.50 Item 1)
22 050N00491 Worm gear (REP 12.9)
23 – Shaft (P/O PL 12.50 Item 1)
24 020N00828 Worm wheel (REP 12.9)
25 – Worm shaft (P/O PL 12.50 Item 1)
26 – Motor bracket (P/O PL 12.50 Item
1)
27 – Motor support bracket (P/O PL
12.50 Item 1)
28 – Pulley (P/O PL 12.50 Item 1)
29 023N01156 Belt (REP 12.9)
30 – PWB access cover (P/O PL 12.50
Item 1)
