January 2016
WorkCentre 4150/4250/4260/4265WorkCentre 4150/4250/4260WorkCentre
PL 7.25
Parts List

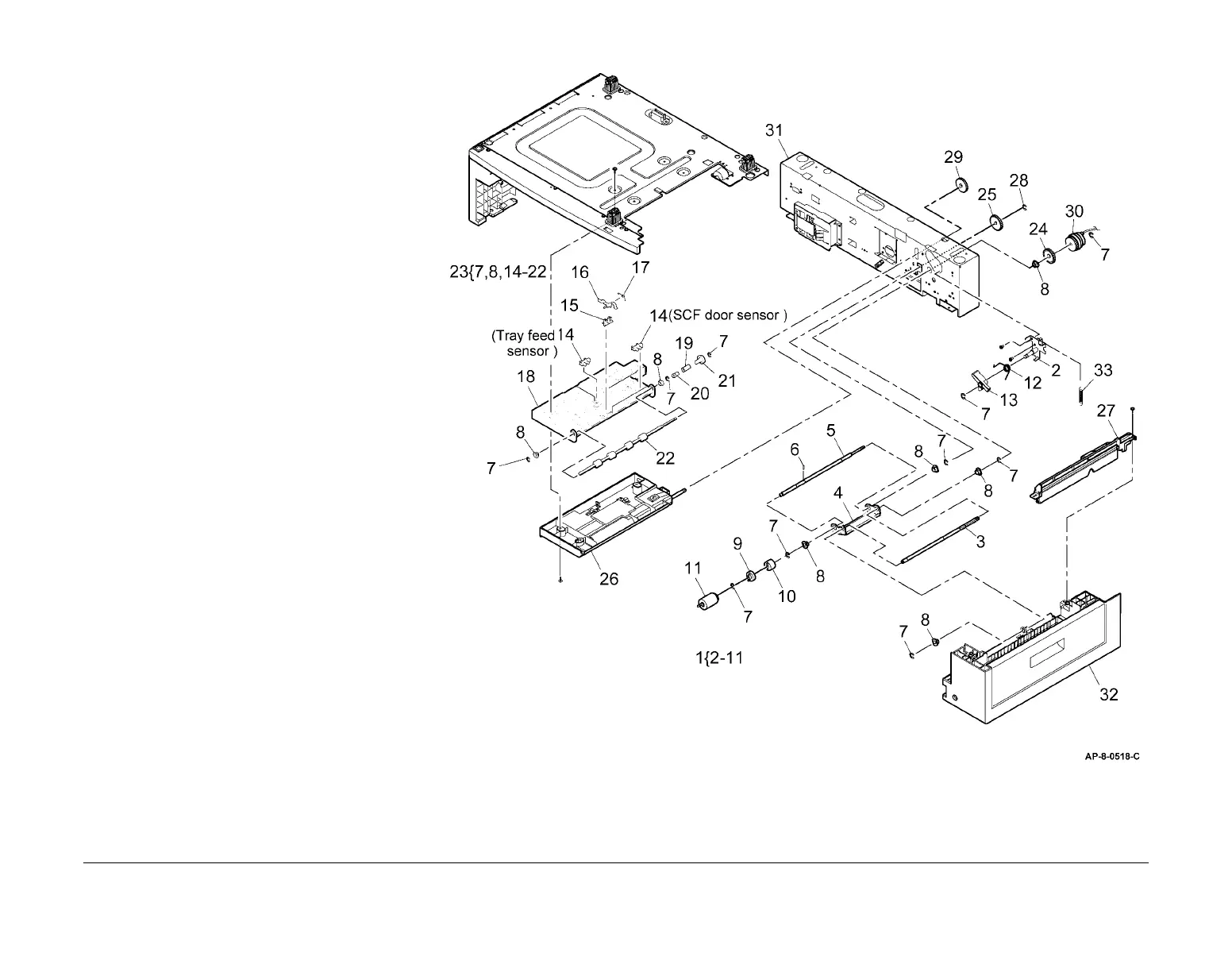

PL 7.25 Trays 2 - 4 Frame Assembly (2
of 2)
Item Part Description
1 022N02230 Retard assembly
2 – Link arm bracket (P/O PL 7.20 Item
1)
3 – Drive shaft (P/O PL 7.20 Item 1)
4 – Retard bracket (P/O PL 7.20 Item
1)
5 – Retard shaft (P/O PL 7.20 Item 1)
6 006N01293 Pin
7 – E-Clip (Not Spared)
8 – Bearing (P/O PL 7.20 Item 1)
9 022N02231 Drive dog Coupling
10 017N00259 Drive dog
11 022N02232 Roll assembly (See Note 2)
12 – Spring (P/O PL 7.20 Item 1)
13 – Feed head link arm (P/O PL 7.20
Item 1)
14 130N01274 Tray feed sensor, SCF door sensor
(See Note 1)
15 – Cradle (P/O PL 7.20 Item 1)
16 – Actuator (P/O PL 7.20 Item 1)
17 – Spring (P/O PL 7.20 Item 1)
18 – Paper transport housing (P/O PL
7.20 Item 1)
19 009N01605 Spring Clutch
20 – Bush holder (P/O PL 7.20 Item 1)
21 007N01529 Gear
22 – Transport roll (P/O PL 7.20 Item 1)
23 – Paper transport (P/O PL 7.20 Item
1)
24 007N01498 Gear, retard assembly
25 007N01532 Gear, paper transport assembly
26 – Tray feed assembly (REF: PL 8.10)
27 – Paper guide assembly (P/O PL
7.20 Item 1)
28 – E-Clip (Not Spared)
29 007N01531 Gear, tray feeder assembly
30 005N01085 Tray pickup clutch (Tray 2
CL08-820), (Tray 3 CL08-830),
(Tray 4 CL08-840)
31 – Rear frame (P/O PL 7.20 Item 1)
32 – R/H base (P/O PL 7.20 Item 1)
33 009N01596 Spring
NOTE: 1. The tray feed sensor and the SCF door sensor
component control codes are common, (Tray 2 Q08-200),
(Tray 3 Q08-300), (Tray 4 Q08-400). 2. HFSI. To reset the
HFSI count, go to GP 16.
To Next Page
