Xerox WorkCentre 4150 Service Manual

January 2016
WorkCentre 4150/4250/4260/4265WorkCentre 4150/4250/4260WorkCentre
PL 2.10
Parts List

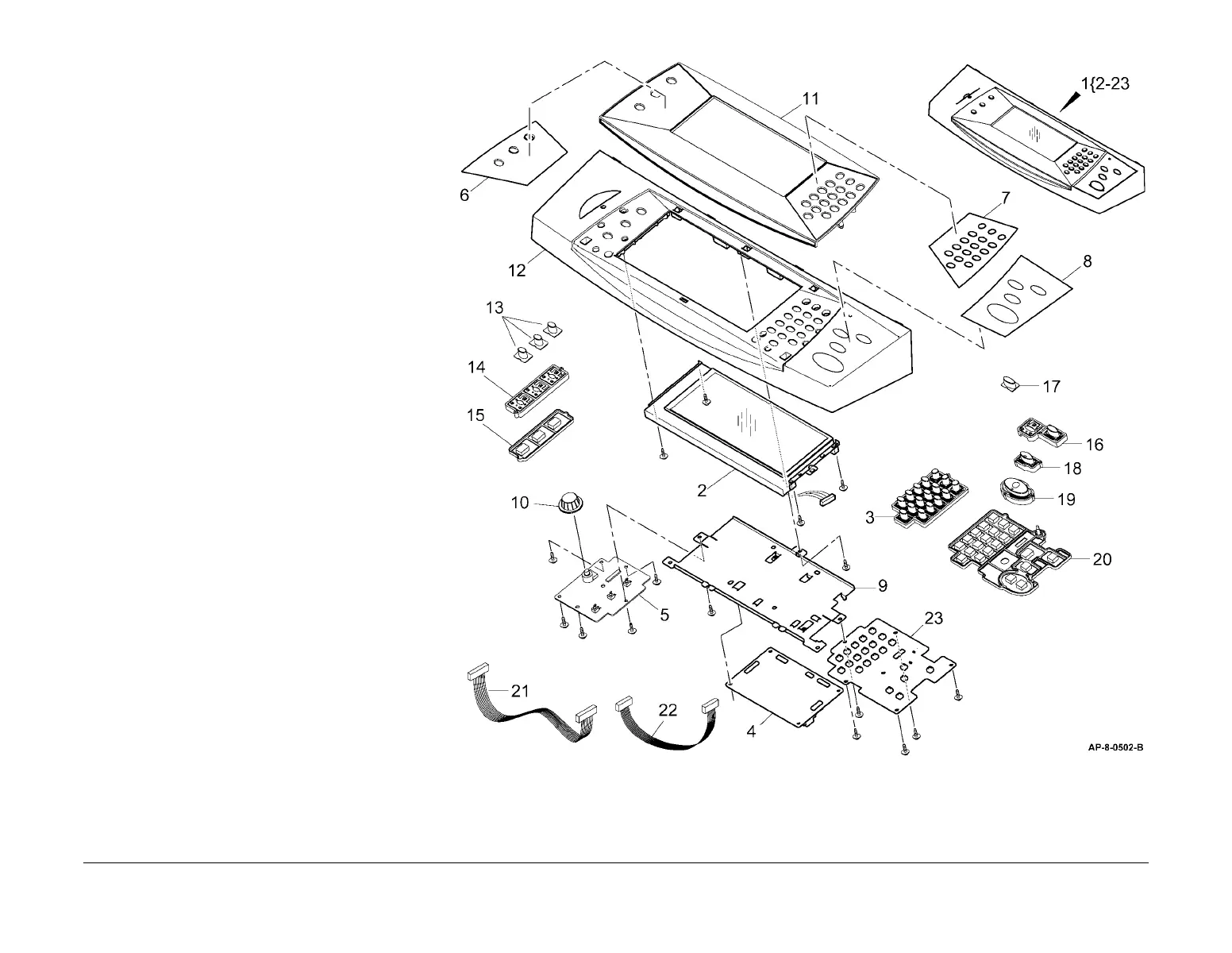

PL 2.10 User Interface (4150)
Item Part Description
1 002N02562 User interface assembly (REP 2.1)
2 123N00244 Touch screen
3 003N01009 Numerical key matrix
4 140N63147 User interface PWB
5 140N63146 Left keys PWB
6 101N01390 Status label (English)
– 101N01393 Status label (French)
– 101N01396 Status label (International)
7 101N01394 Numerical label (French)
– 101N01391 Numerical label (English)
– 101N01397 Numerical label (International)
8 101N01395 Start label (French)
– 101N01392 Start label (English)
– 101N01398 Start label (International)
9 – Cover (P/O PL 2.10 Item 1)
10 003N01007 Contrast control knob
11 002N02578 UI inlay
12 – UI housing (P/O PL 2.10 Item 1)
13 123N00243 Job status key
14 003N01006 Job status key pad
15 003N01008 Left hand PWB membrane
16 029N00351 Interrupt key
17 018N00194 All clear key
18 029N00352 Stop key
19 029N00353 Start key
20 003N01010 Right PWB membrane
21 152N11712 Left keys PWB harness
22 152N11713 Right keys PWB harness
23 140N63145 Right keys PWB
NOTE: User interface Assembly part 002N0261 includes
English labels. User Interface Assembly part 002N02562
doses not include labels.
