PL 12.10
Parts List

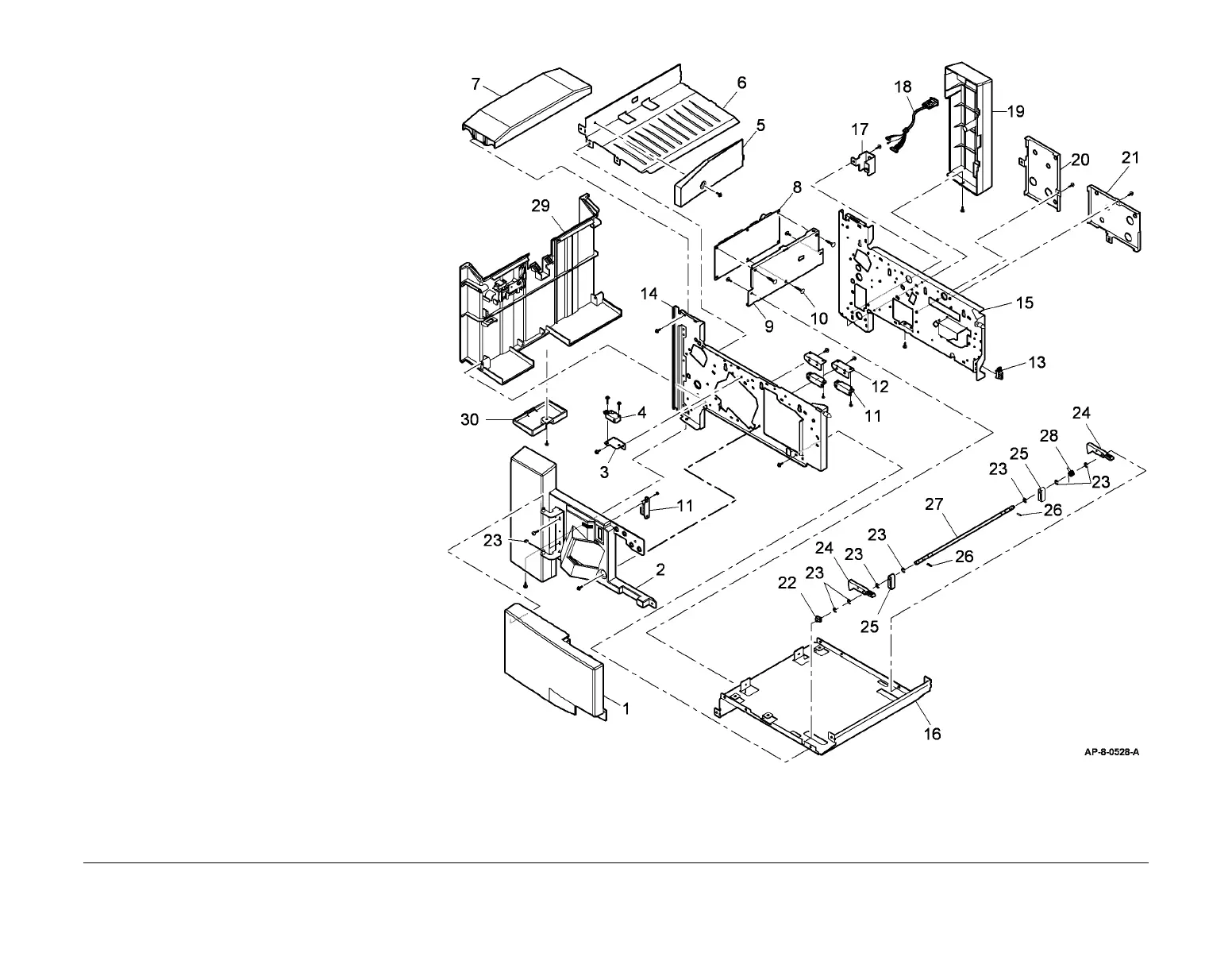

PL 12.10 Finisher Frame
Item Part Description
1 101N01389 Door
– 101N01495 Door (WC4265 Only) (4265)
2 002N02626 Front cover
3 – Interlock switch bracket (P/O PL
12.50 Item 1)
4 109N00655 Finisher door switch (S12-870)
5 101N01496 Top infill cover (WC4265 Only)
(4265)
– 101N01406 Top infill cover
6 – Exit cover (P/O PL 12.50 Item 1)
7 002N02572 Top cover (REP 12.4)
8 140N63743 Finisher PWB (WC4265 Only)
(4265)
– 140N63143 Finisher PWB (REP 12.2)
9 – PWB bracket (P/O PL 12.50 Item 1)
10 – Stand off (P/O PL 12.50 Item 1)
11 121N01131 Magnet
12 – Magnet bracket (P/O PL 12.50 Item
1)
13 130N01274 IOT Set Sensor (Q12-875)
14 – Front side plate (P/O PL 12.50 Item
1)
15 – Rear side plate (P/O PL 12.50 Item
1)
16 – Base plate (P/O PL 12.50 Item 1)
17 – Interface harness bracket (P/O PL
12.50 Item 1)
18 113N01304 Interface harness
19 002N02573 Rear cover (REP 12.4)
20 – Exit belt cover (P/O PL 12.50 Item
1)
21 – Entry belt cover (P/O PL 12.50 Item
1)
22 – Bearing (P/O PL 12.50 Item 1)
23 – E-Clip (Not Spared)
24 – Hook (P/O PL 12.50 Item 1)
25 – Guide (P/O PL 12.50 Item 1)
26 – Pin (P/O PL 12.50 Item 1)
27 – Shaft (P/O PL 12.50 Item 1)
28 – Spring (P/O PL 12.50 Item 1)
29 – Left cover assembly (P/O PL 12.50
Item 1)
30 – PWB Access cover (P/O PL 12.50
Item 1)
NOTE: Alternate Part Numbers for Item 13 (IOT Set Sensor)
are 130N01601 and 130N01574.
