January 2016
4-23
WorkCentre WorkCentre 4150/4250/4260WorkCentre 4150/4250/42604150/
REP 2.5
Repairs and Adjustments
REP 2.5 User Interface Sub PWB (4265)
Parts List on PL 2.14
Removal
NOTE: This procedure should only be performed on the 4265. For other configurations, refer
to the table of contents.
WARNING
Switch off the electricity to the machine. Disconnect the power cord from the customer
supply while performing tasks that do not need electricity. Electricity can cause death or
injury. Moving parts can cause injury.
WARNING
Take care during this procedure. Sharp edges may be present that can cause injury.
CAUTION
Before performing this procedure, refer to General Disassembly Precautions, GP 10.
1. Remove the User Interface Inlay (Figure 1).

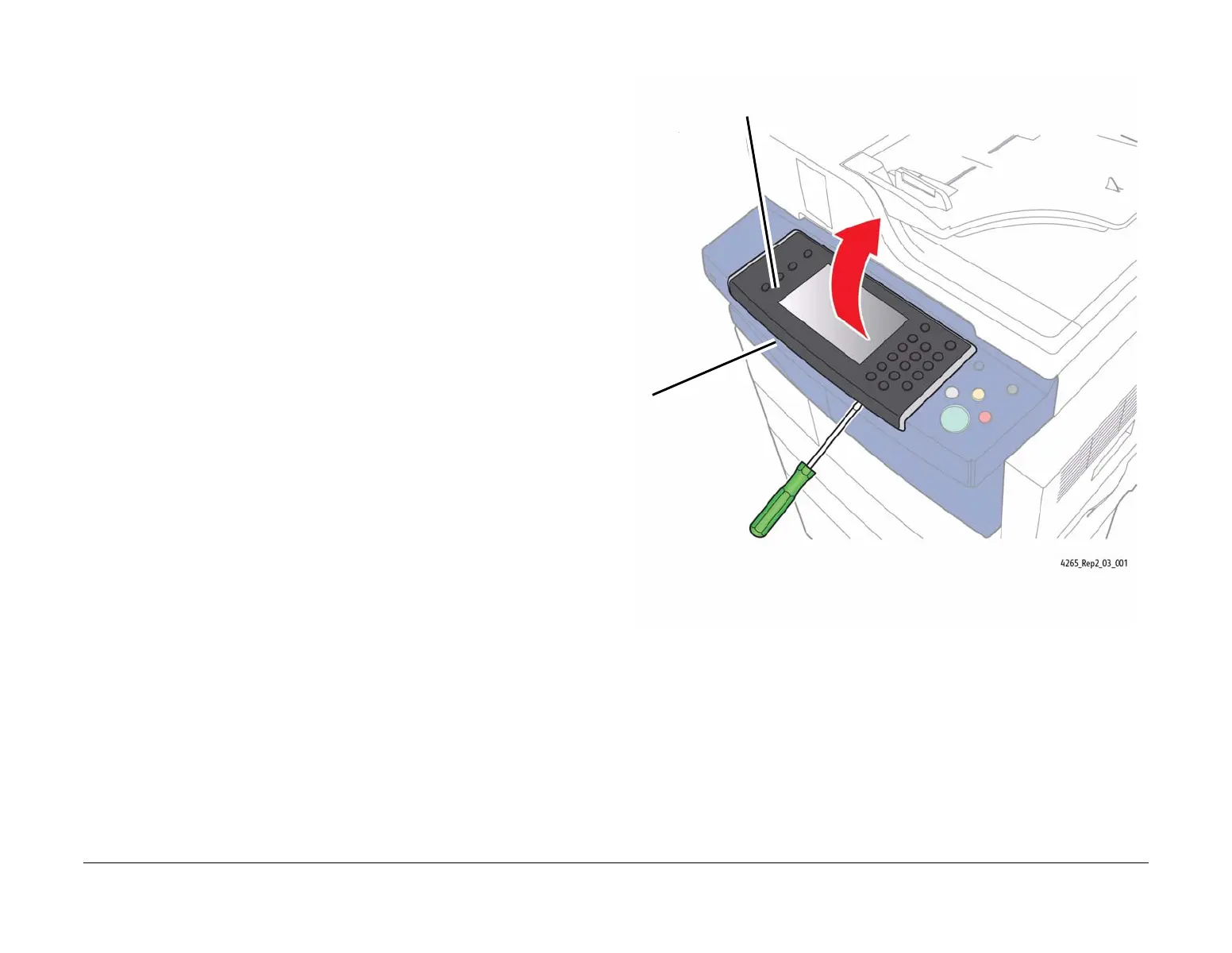

Figure 1 Removing the User Interface Inlay
1
Use a flat-blade
screwdriver to
carefully lift the
front lower cor-
ners of the UI
inlay.
2
Lift and remove the UI Inlay from the machine.
To Next Page
