January 2016
4-35
WorkCentre 4150/4250/4260WorkCentre WorkCentre 4150/4250/42604150/
REP 5.1
Repairs and Adjustments

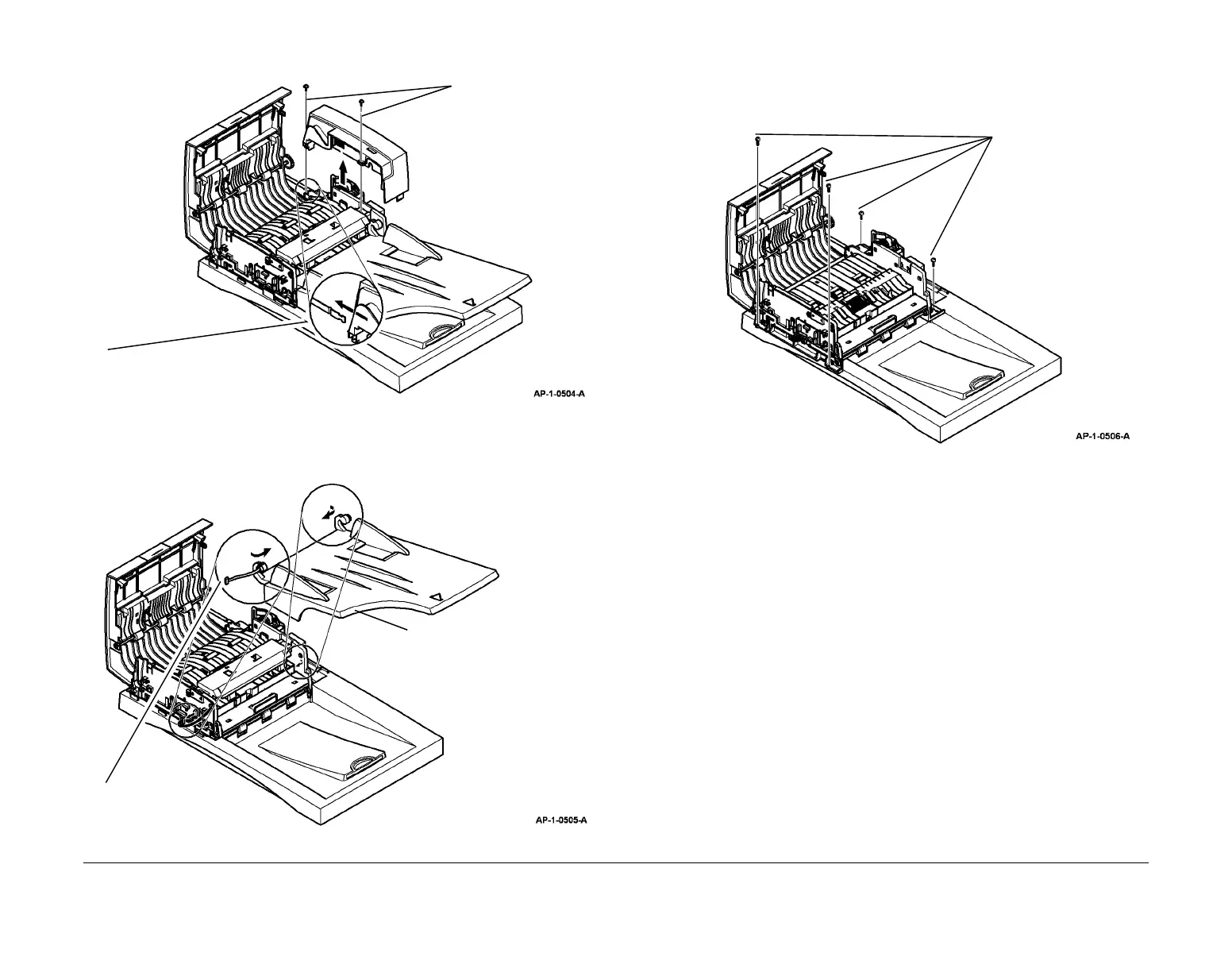

6. Remove the rear cover, Figure 5.
Figure 5 Rear cover removal
7. Remove the input tray, Figure 6.
Figure 6 Input tray removal
8. Prepare to remove the top cover assembly, Figure 7.
NOTE: Removing the 4 screws that secure the document transport assembly will ease
the removal of the top cover assembly.
Figure 7 Preparation
2
Remove 2 screws,
then the rear cover.
1
Release the top cover
restraining strap.
2
Remove the input tray. Ensure
the harness is released through
the hole in the frame.
1
Disconnect CN3.
To Next Page
