January 2016
4-43
WorkCentre 4150/4250/4260WorkCentre WorkCentre 4150/4250/42604150/
REP 5.3
Repairs and Adjustments
REP 5.3 DADF (4250/4260/4265)
Parts List on PL 5.60
Removal
WARNING
Switch off the electricity to the machine. Disconnect the power cord from the customer
supply while performing tasks that do not need electricity. Electricity can cause death or
injury. Moving parts can cause injury.
WARNING
Take care during this procedure. Sharp edges may be present that can cause injury.
CAUTION
Before performing this procedure, refer to General Disassembly Precautions, GP 10.
1. Power off the machine. Disconnect the power cord.
2. If installed, remove the DADF securing bracket, PL 14.13 Item 36.
3. Disconnect the DADF communication harness, Figure 1.

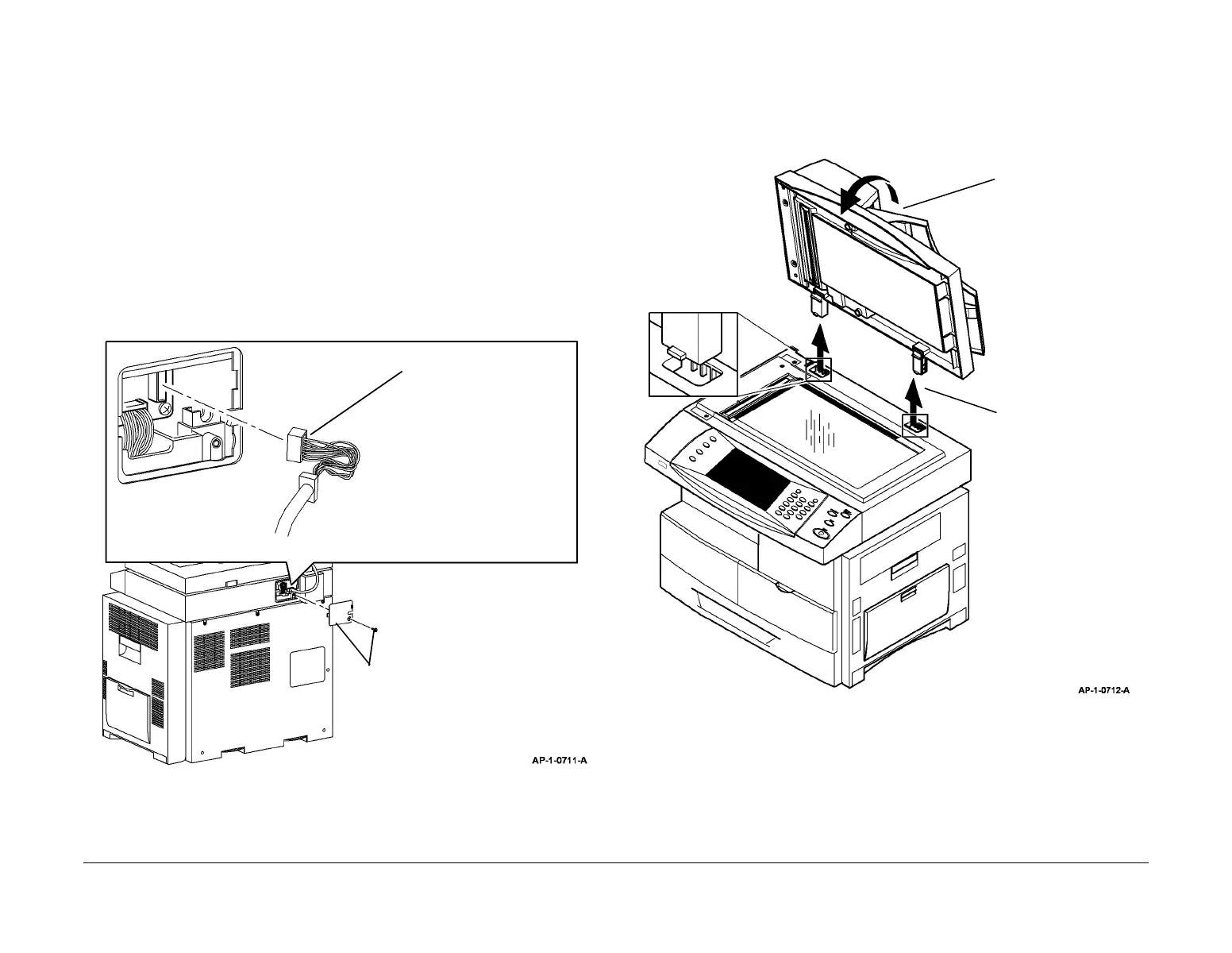

Figure 1 DADF Communication Harness
4. Remove the Rear Cover (4265 only) (PL 28.10).
5. Disconnect CN 39 from the Main PWB (4265 only).
6. Raise the DADF.
WARNING
Do not remove the DADF while the DADF is lowered. In the lowered position the coun-
terbalance springs are compressed and can cause injury when released.
7. Remove the DADF, Figure 2. Place the DADF on a solid flat surface.
Figure 2 DADF Removal
Replacement
Replacement is the reverse of the removal procedure.
1
Remove 1 screw, then
the infill cover.
2
Disconnect the DADF
communication harness.
NOTE: The 4265 machine
has two communication
harnesses to disconnect in
this area.
1
Pull up the DADF.
2
Tilt the DADF forward
then remove.
To Next Page
