January 2016
4-65
WorkCentre 4150/4250/4260WorkCentre WorkCentre 4150/4250/42604150/
REP 5.18
Repairs and Adjustments
REP 5.18 DADF Charge Coupled Device (CCDM) (4265)
Parts List on PL 5.70
Removal
NOTE: This procedure should only be performed on the 4265 machine. For the 4150 proce-
dure, refer to the table of contents.
WARNING
Switch off the electricity to the machine. Disconnect the power cord from the customer
supply while performing tasks that do not need electricity. Electricity can cause death or
injury. Moving parts can cause injury.
CAUTION
Do not allow the optics cavity to become contaminated. Contamination of the optics cavity can
cause image quality defects.
1. Power off the machine. Disconnect the power cord.
2. Remove the DADF (REP 5.3).
3. Dislocate the DADF Rear Cover (Figure 1).

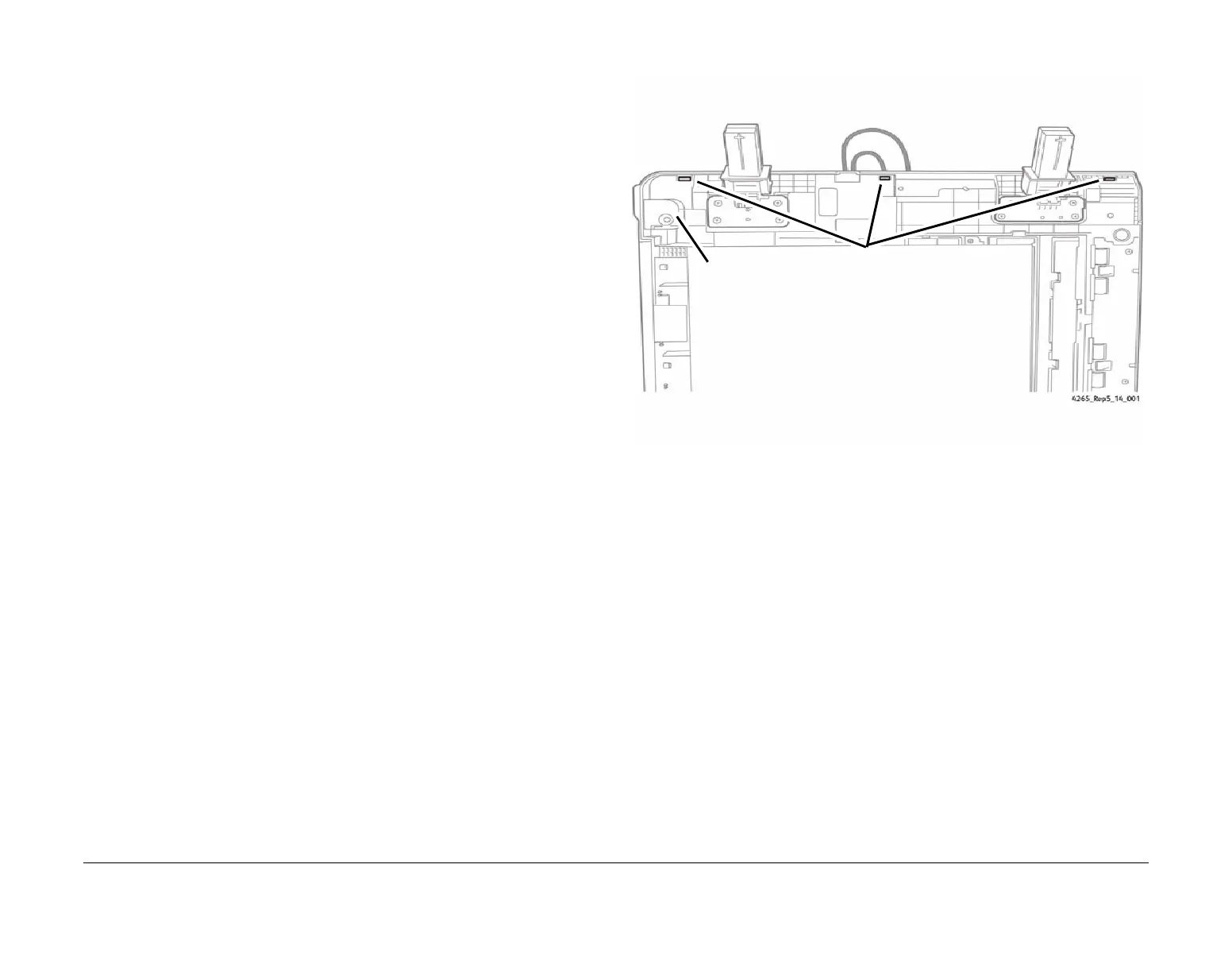

Figure 1 Dislocating the DADF Rear Cover
1
Set the DADF on its side, with the rear of the DADF facing upwards.
3
Carefully dislocate the
three locking tabs using a
flat-blade screwdriver.
4
Set the DADF down on the
table top, with the top side
facing upwards.
2
Remove the screw.
To Next Page
