REP 5.22
Repairs and Adjustments

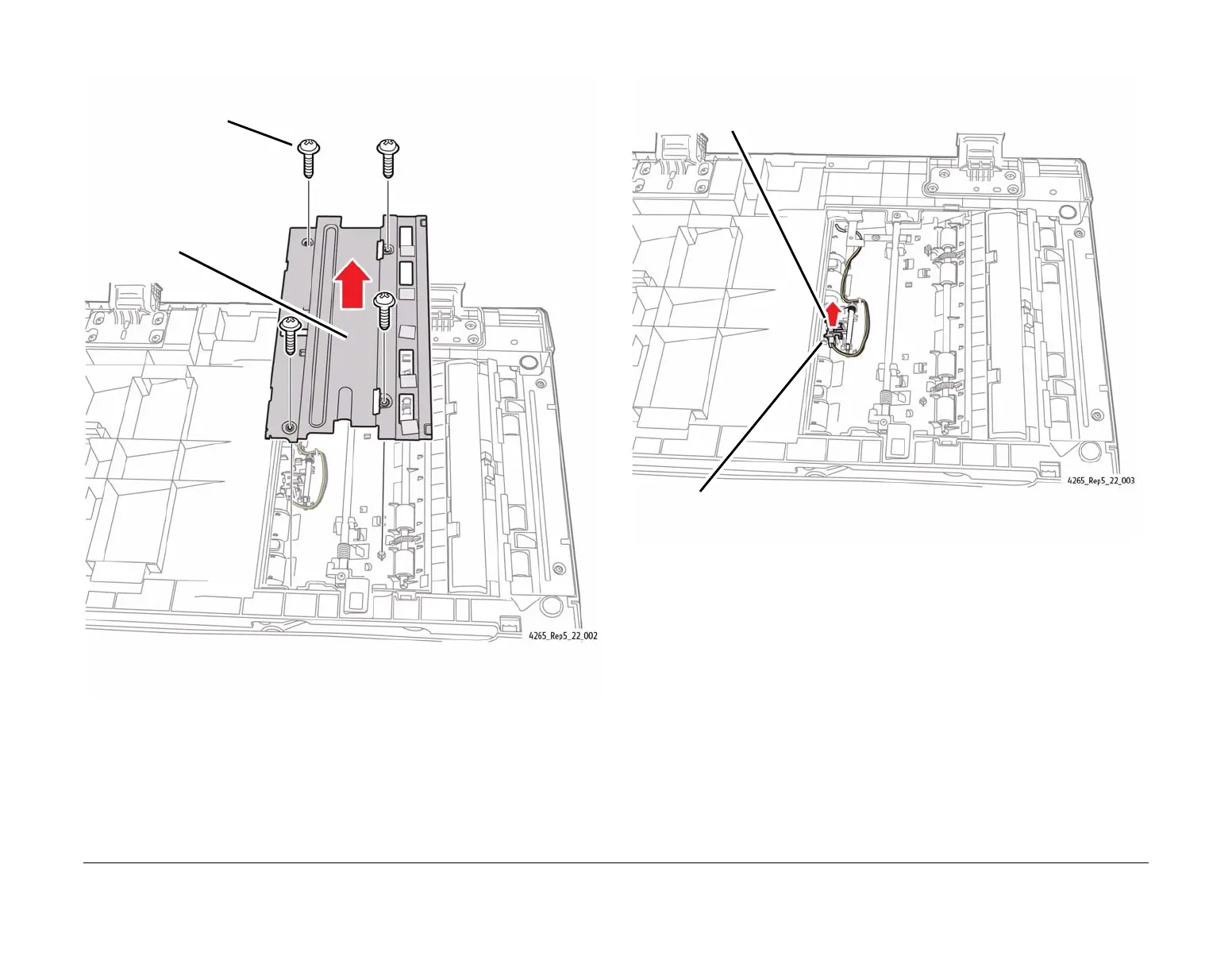

5. Remove the Lower Exit Frame (Figure 2).
Figure 2 Removing the Lower Exit Frame
6. Remove the DADF Exit Sensor (Figure 3).
Figure 3 Removing the DADF Exit Sensor
Replacement
1. Reinstallation is the reverse of the Removal procedure.
1
Remove the four
mounting screws.
2
Remove the Lower
Exit Frame.
1
Disconnect the connector.
2
Remove the DADF Exit Sensor.
