Xerox WorkCentre 4150 Service Manual

January 2016
4-95
WorkCentre 4150/4250/4260WorkCentre WorkCentre 4150/4250/42604150/
REP 5.31
Repairs and Adjustments
4. Set the Top Cover and the Inner Cover on a clean table top as shown, and locate the
DADF Harness (Figure 2).

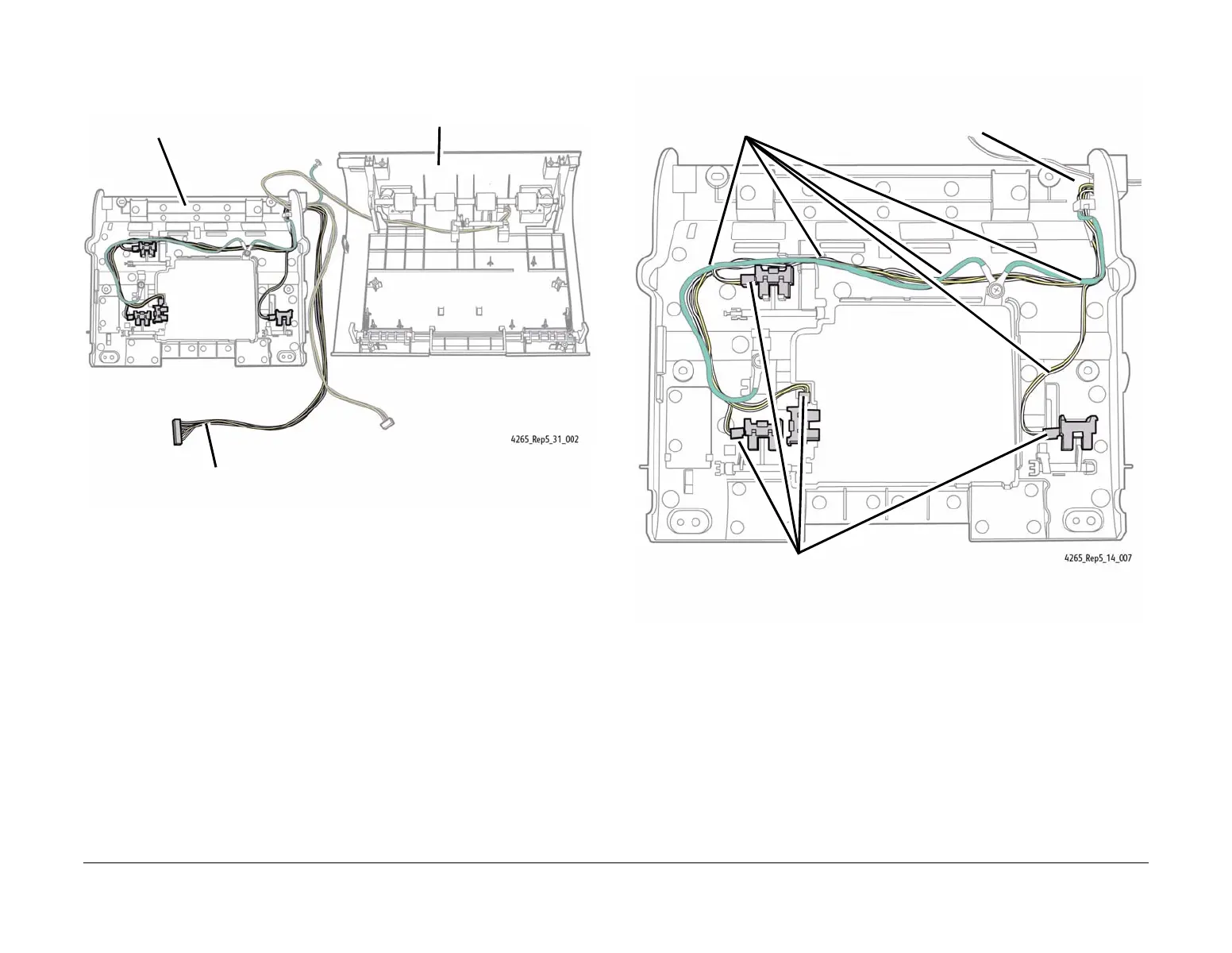

Figure 2 Locating the DADF Harness
5. Remove the DADF Harness from the Inner Cover (Figure 3).
Figure 3 Removing the DADF Harness
Replacement
1. Reinstallation is the Reverse of the Removal procedure.
Inner Cover
DADF Harness
Top Cover
4
Remove the
DADF Harness.
3
Disconnect the four
connectors.
2
Remove the DADF Har-
ness from the wire guides.
1
Route the DADF Harness
through the hole in frame.
