Xerox WorkCentre 4150 Service Manual

January 2016
4-100
WorkCentre WorkCentre 4150/4250/4260WorkCentre 4150/4250/42604150/
REP 5.32
Repairs and Adjustments
12. Prepare to remove the DADF Sub Assembly (Figure 8).

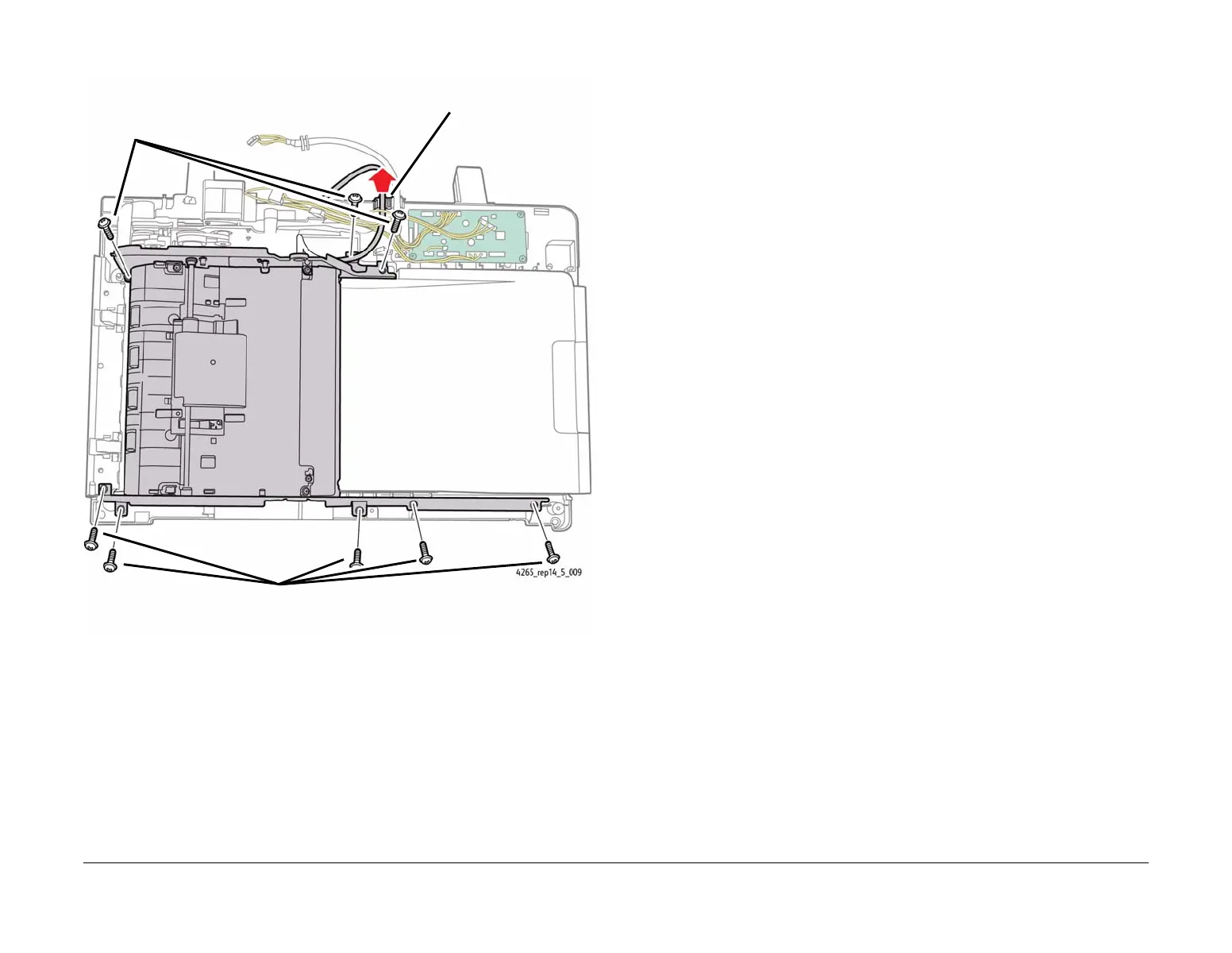

Figure 8 Preparing to Remove the DADF Sub Assembly
13. Remove the DADF Sub Assembly by carefully lifting it out of the lower frame.
Replacement
1. Reinstallation is the reverse of the Removal procedure.
1
Remove the five mounting screws.
2
Remove the three
mounting screws.
3
Remove the cable from
its press-fit mount.
