January 2016
4-117
WorkCentre WorkCentre 4150/4250/42604150/4250/4260WorkCentre 4150/
REP 7.5
Repairs and Adjustments

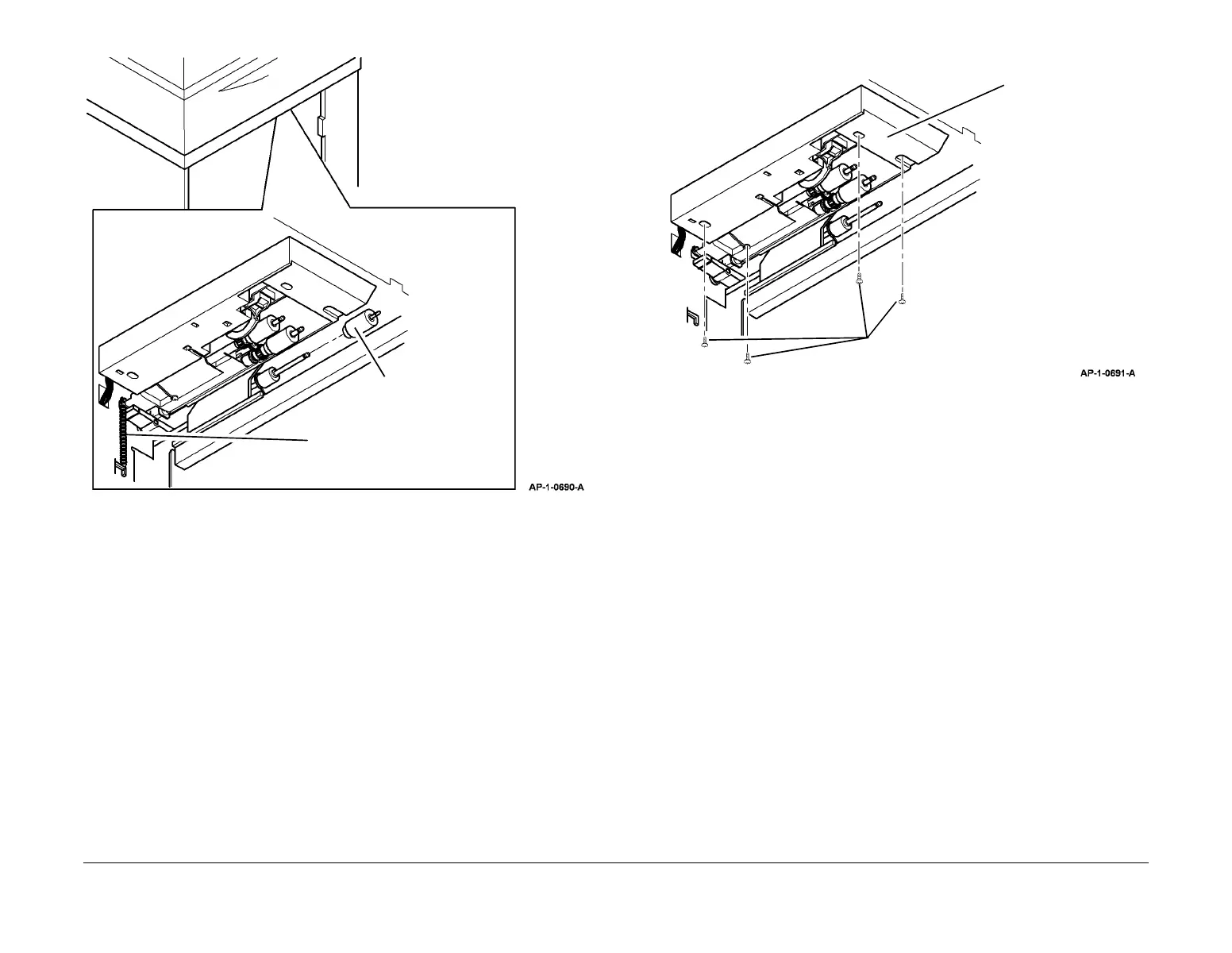

Figure 3 Spring and retard pad removal
7. Remove the HCF feed assembly, Figure 4.
Figure 4 Remove the feed assembly
1
Remove the feed head support
spring.
2
Remove the retard
roll.
1
Remove the 4 screws.
2
Remove the HCF feed
assembly.
