Xerox WorkCentre 4150 Service Manual

January 2016
4-121
WorkCentre WorkCentre 4150/4250/42604150/4250/4260WorkCentre 4150/
REP 7.6
Repairs and Adjustments
Replacement
Replacement is the reverse of the removal procedure. When reinstalling the paper transport
and tray feed unit, refer to Figure 4.

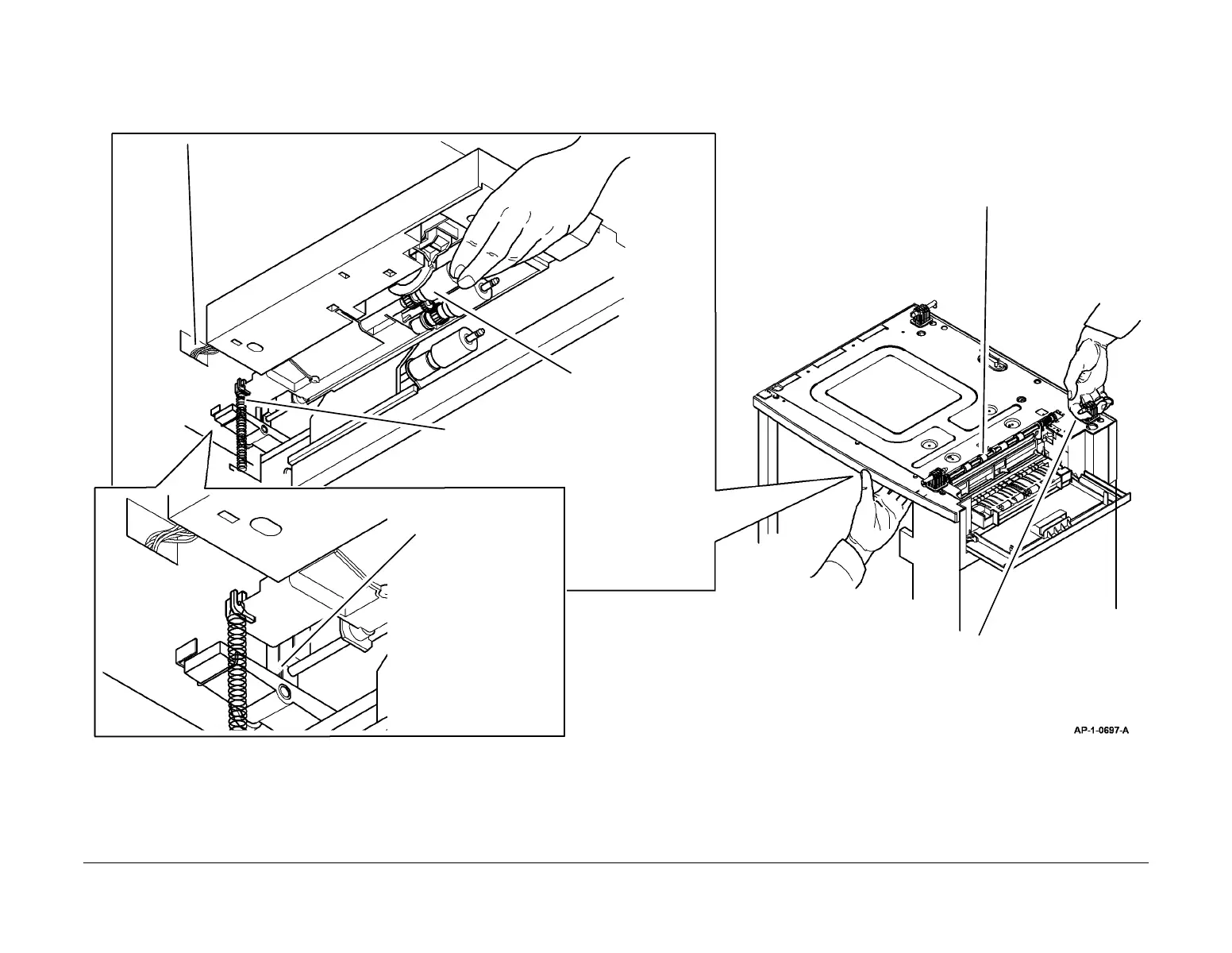

Figure 4 Replacement
1
Put the harness through the
rear of the tray module frame.
3
Hold the feed head
horizontal.
4
Locate the drive shaft
through the hole in the
tray module frame.
5
Lift the corner of the tray
module.
6
Reinstall the paper
transport and tray feed
unit.
2
Reinstall the feed
head support spring.
