REP 8.1
Repairs and Adjustments
5. Remove the Side Cover Assembly (Figure 3).

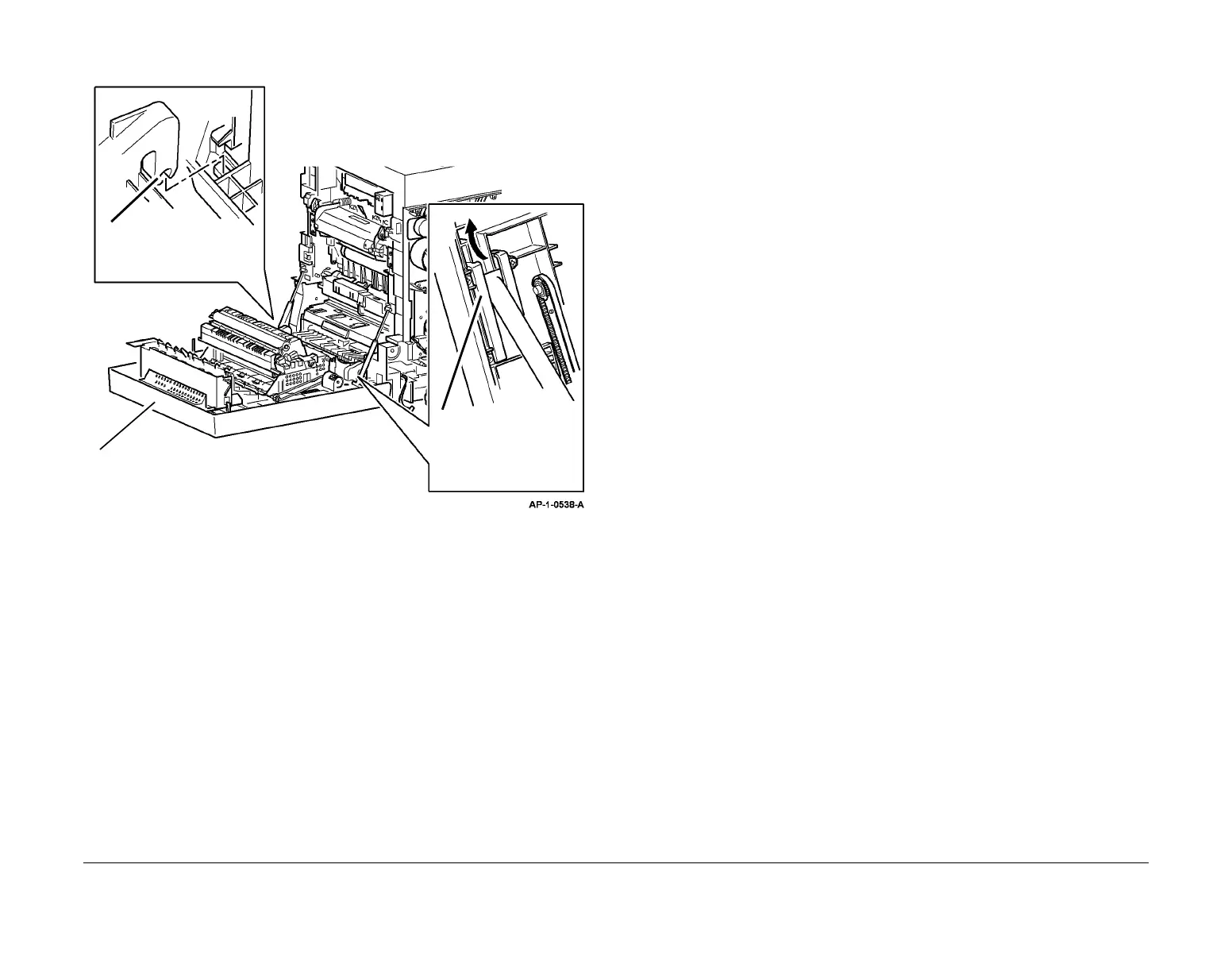

Figure 3 Removing the Side Cover Assembly
Replacement
Replacement is the reverse of the removal procedure.
1
Disengage the front and
rear dampers by sliding
them upwards and out of
the Damper Bracket.
2
Disengage the front and
rear hinges by pulling
upwards.
3
Remove the side cover assembly.
