January 2016
4-135
WorkCentre 4150/4250/4260WorkCentre WorkCentre 4150/4250/42604150/
REP 8.3
Repairs and Adjustments
Replacement
1. Insert the wire harness back into the opening in the Back Panel prior to reinserting the
Paper Transport Assembly back into the machine (Figure 4).

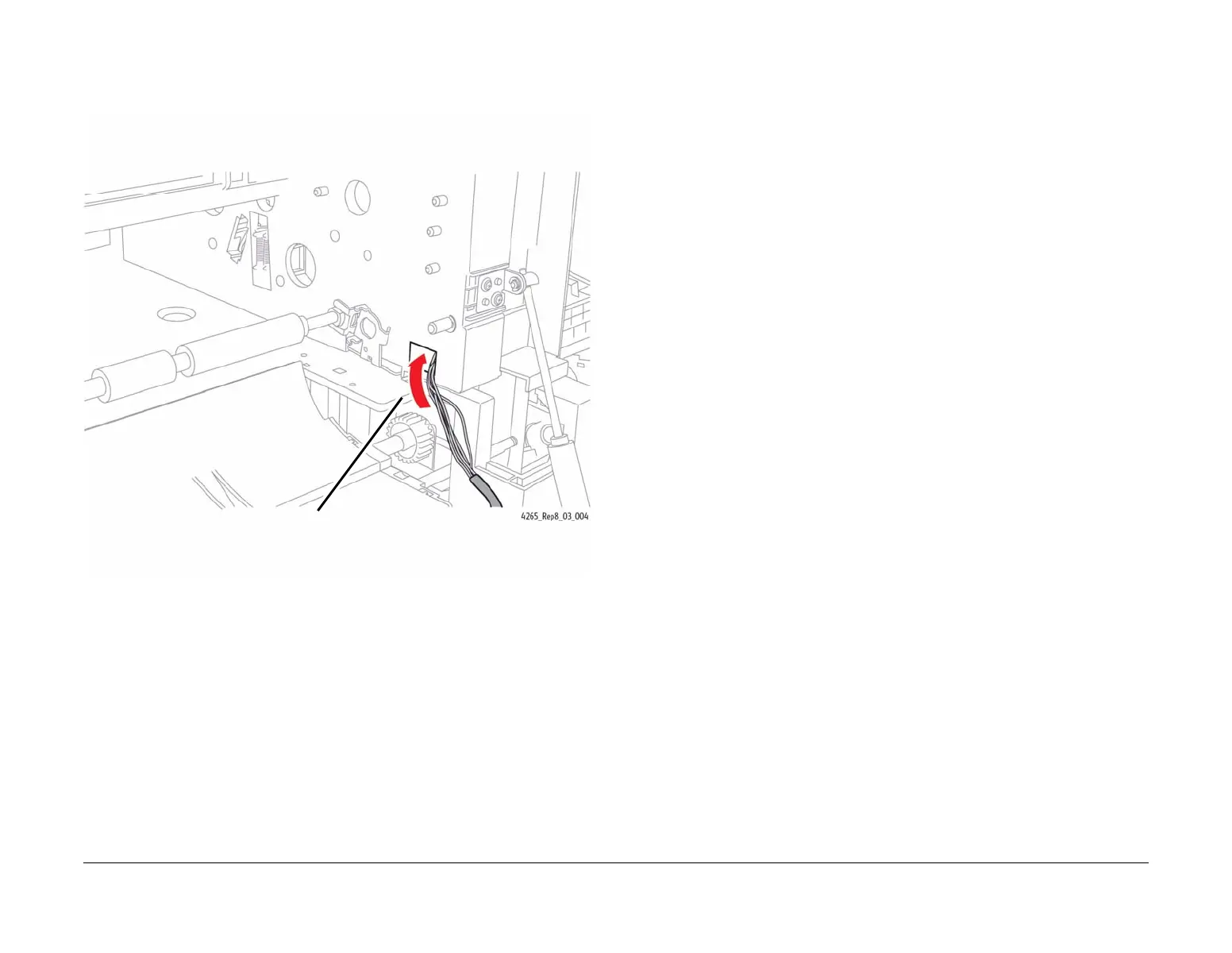

Figure 4 Inserting Wire Harness through the Back Panel
2. Reinstallation is the reverse of the Removal procedure.
1
Insert the wire harness into the
opening in the Back Panel.
