January 2016
4-180
WorkCentre WorkCentre 4150/4250/4260WorkCentre 4150/4250/42604150/
REP 12.9
Repairs and Adjustments
8. Remove the Stacker Tray Motor Assembly (Figure 4).

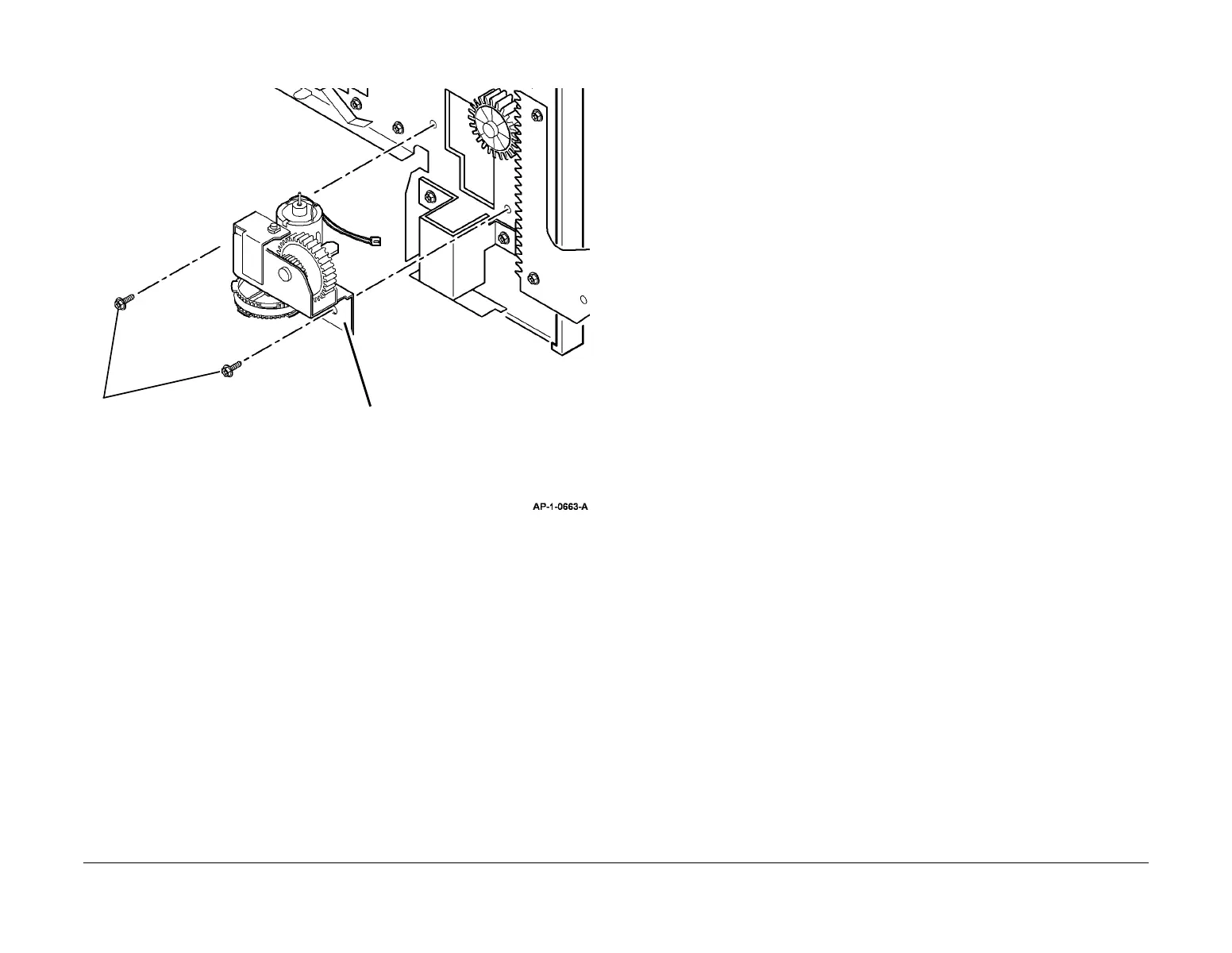

Figure 4 Removing the Stacker Tray Motor Assembly
9. If necessary, remove 1 E-clip, then the pinion gear, PL 12.45 Item 17.
10. Remove components from the Stacker Motor Assembly as necessary:
• Stacker Motor, PL 12.45 Item 20.
• Stacker Motor Belt, PL 12.45 Item 29.
• Worm Wheel, PL 12.45 Item 24.
• Worm Gear, PL 12.45 Item 22.
Replacement
Replacement is the reverse of the removal procedure.
2
Remove the Stacker Tray
Motor Assembly.
1
Remove 2 screws.
To Next Page
