ADJ 8.2
Repairs and Adjustments
5. Measure the distance between the side edge of the paper and the ADG line on the printed
test pattern, Figure 1.

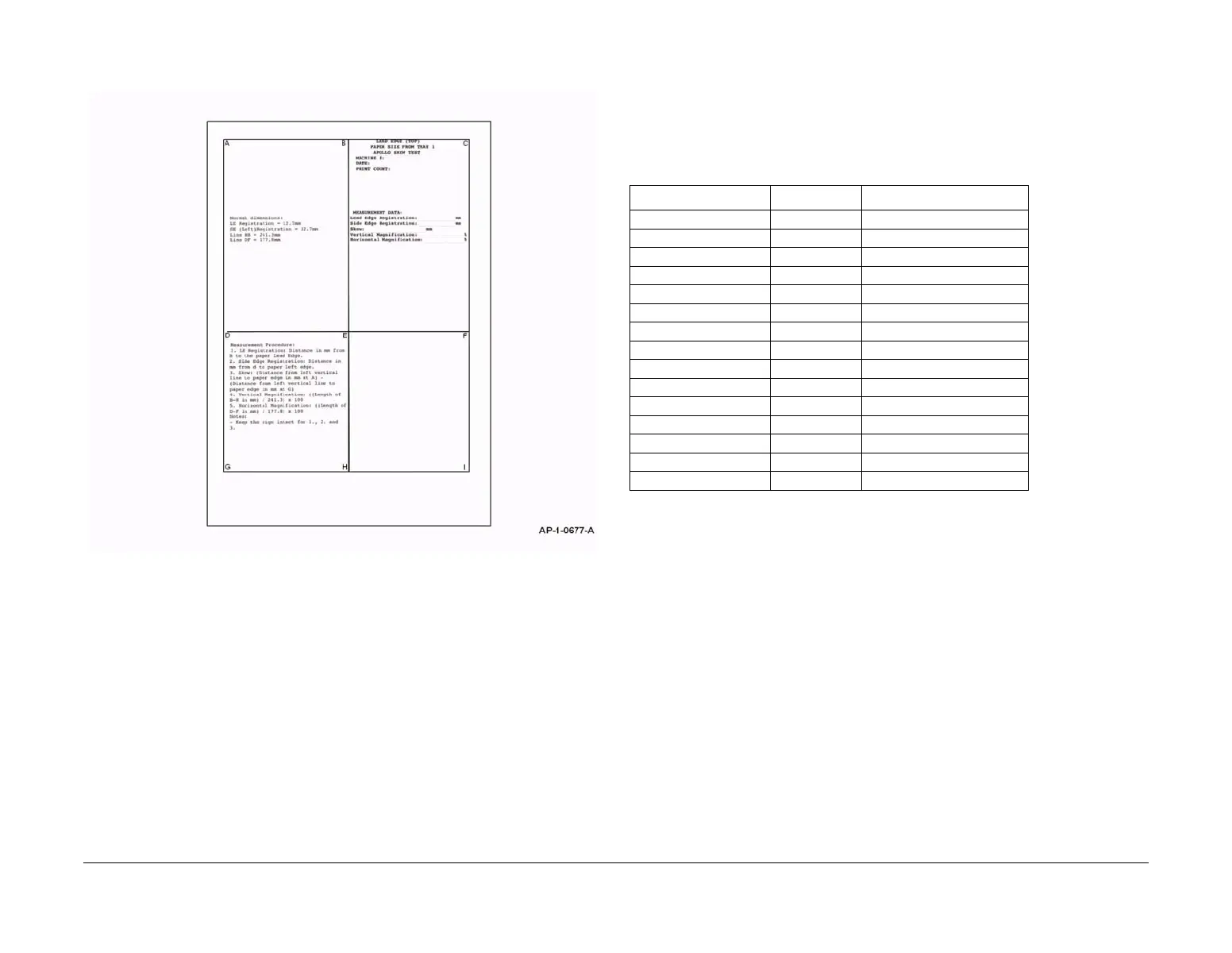

Figure 1 Test pattern 7
6. If the distance measured is not 12.7mm (0.5 inch) +/-3mm (1/8 inches), perform the
Adjustment.
Adjustment
1. Select Exit (on the dC606 Internal Print Test Patterns screen).
2. Select Diagnostic Routines.
3. Select Copier Routines.
4. Select 131 NVM Read Write.
5. Refer to Table 1. Select the relevant NVM setting.
6. Select Read/Write. Enter a new value as follows:
• To increase the side edge registration (move the ADG line away from the paper
edge), enter a value larger than the current value.
• To decrease the side edge registration (move the ADG line toward the paper edge),
enter a value smaller than the current value.
NOTE: A change of 12 will change the registration by approximately 6mm (0.25
inch)
7. Save the adjustment.
a. Select Save.
b. Select OK.
8. Prepare to check the adjustment.
a. Select Close.
b. Select Diagnostic Routines.
c. Select Other Routines.
9. Perform again the Check.
Table 1 NVM location
Mode Tray Location
Simplex 1 07-110
Simplex 2 07-210
Simplex 3 07-310
Simplex 4 07-410
Simplex Bypass 07-510
Duplex Side 1 1 07-150
Duplex Side 1 2 07-250
Duplex Side 1 3 07-350
Duplex Side 1 4 07-450
Duplex Side 1 Bypass 07-550
Duplex Side 2 1 07-130
Duplex Side 2 2 07-230
Duplex Side 2 3 07-330
Duplex Side 2 4 07-430
Duplex Side 2 Bypass 07-530
