January 2016
6-40
WorkCentre WorkCentre 4150/4250/4260WorkCentre 4150/4250/
GP 13
General Procedures and Information
Machine Dimensions and Installation Space Requirements
Table 1 shows the dimension of the machine and the installation space required for safe oper-
ation.
NOTE: The dimensions shown in Table 1 allow for a 1 metre (39.4 inches) minimum safety
workspace around the machine. To acquire the minimum safety workspace it may be neces-
sary to move the machine within the area specified.

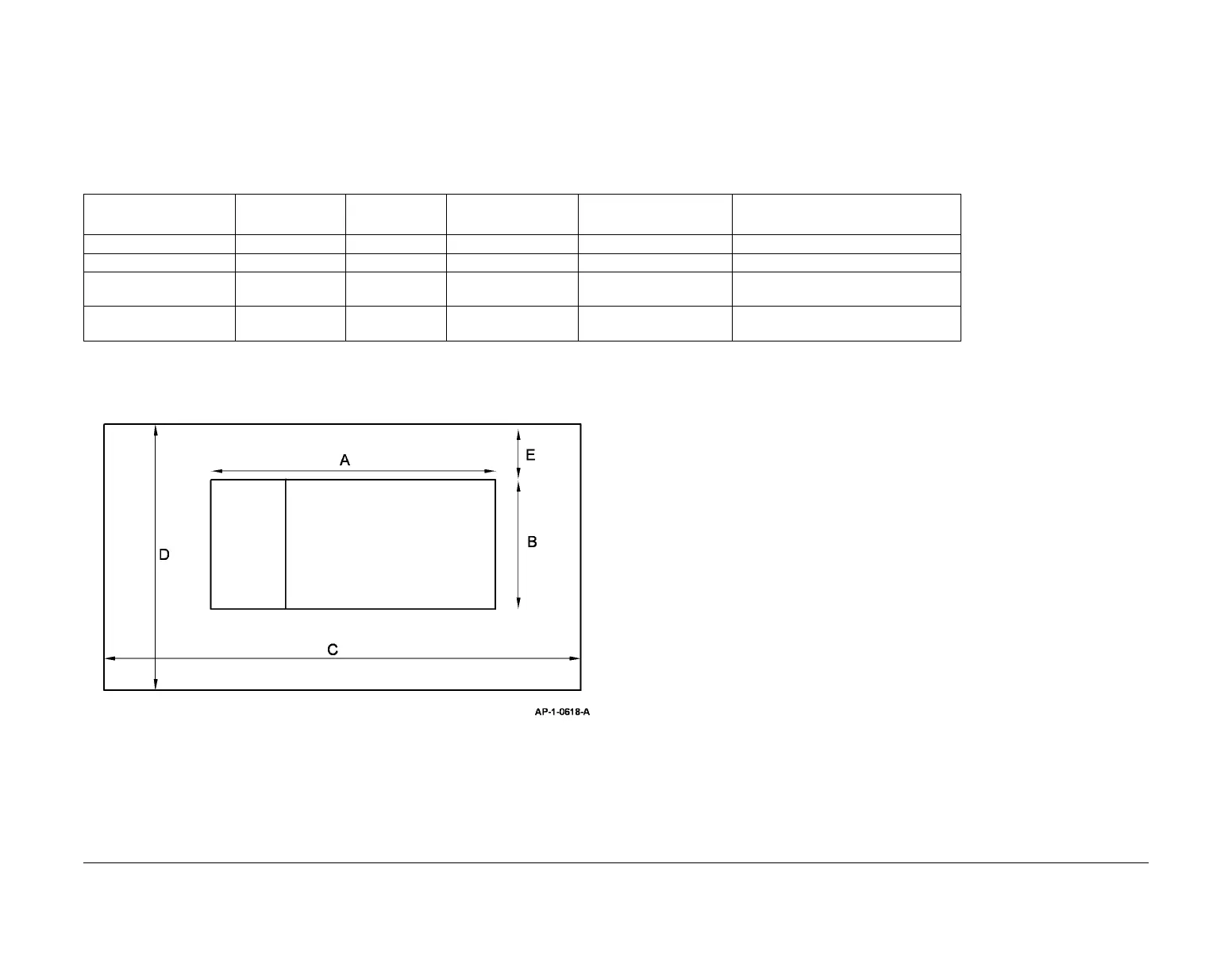

Figure 1 represents a plan view of a machine installation and is to be read in conjunction with
Table 1. The dimensions A and B outline a footprint of the machine within the boundary of safe
operation, dimensions C and D. The dimension E indicates the area required for airflow / work-
space at the rear of the machine.
NOTE: The machine depth dimension does not include the stand stabilizing feet. The machine
with finisher dimensions includes the stacker tray.
Figure 1 Installation Plan
Table 1 Working space requirements
Configuration
Machine width
(A) mm / inches
Machine depth
(B) mm / inches
Install width required
(C) mm / inches
Install depth required
(D) mm / inches
Install airflow / service workspace
(E) mm / inches
4150 (without finisher) 622 / 24.4 490 / 19.2 1622 / 63.8 1490 / 58.6 178 / 7
4150 (with finisher) 1005 / 39.5 490 / 19.2 2005 / 78.9 1490 / 58.6 178 / 7
4250/4260/4265 (without
finisher)
621.7 / 24.5 511.3 / 20.1 1622 / 63.8 1516 / 59.6 178 / 7
4250/4260/4265 (with fin-
isher)
1005 / 39.5 511.3 / 20.1 2005 / 78.9 1516 / 59.6 178 / 7
