January 2016
7-57
WorkCentre 4150/4250/4260WorkCentre 4150/4250/4260WorkCentre Work-
PWB Connectors
Wiring Data
UI PWB (4250/4260)
Location: PL 2.12 Item 4

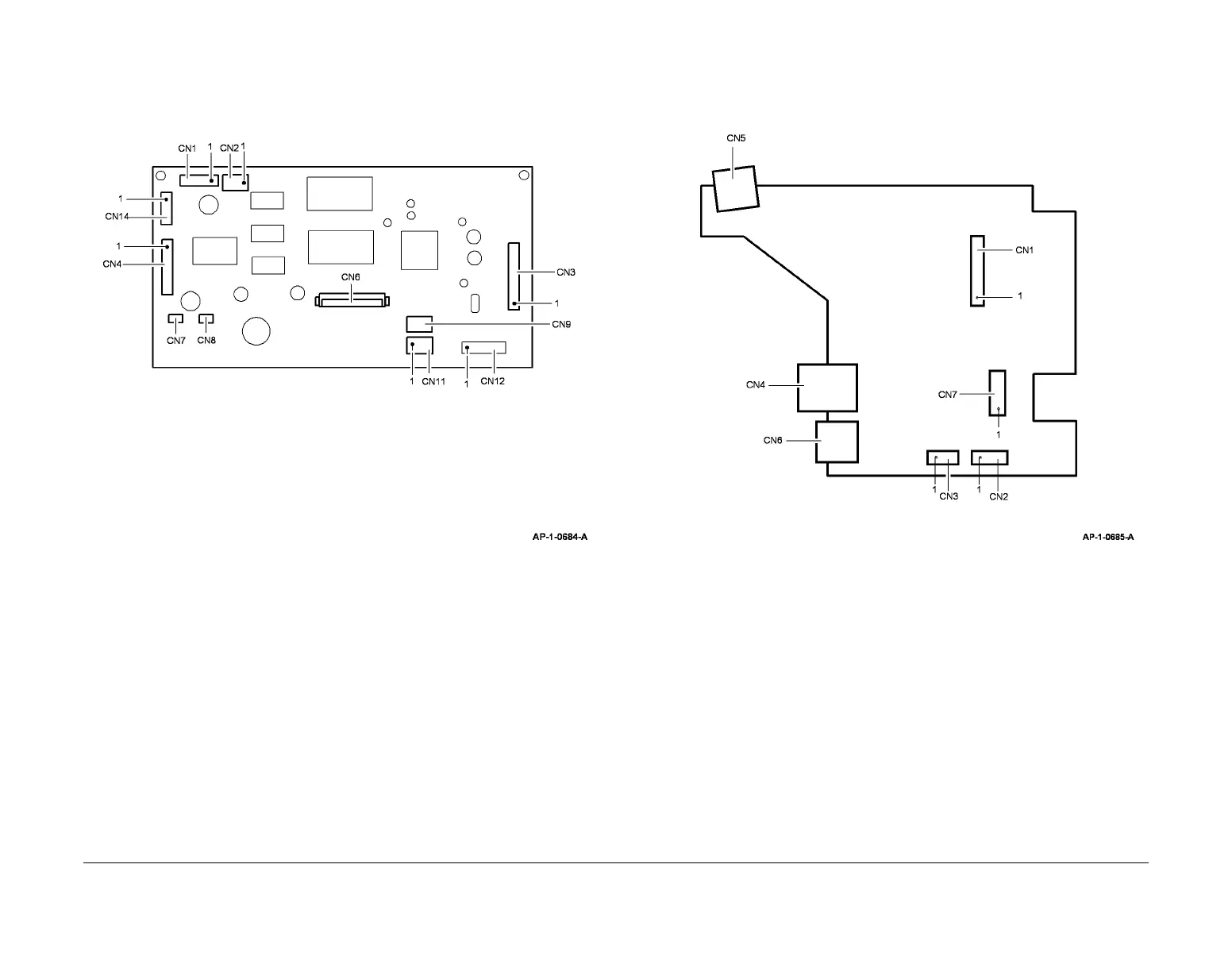

Figure 16 UI PWB (4250/4260)
UI Left Keys PWB (4250/4260)
Location: PL 2.12 Item 5
Figure 17 UI Left Keys PWB (4250/4260)
