Clearing Jams in Top Left Cover A

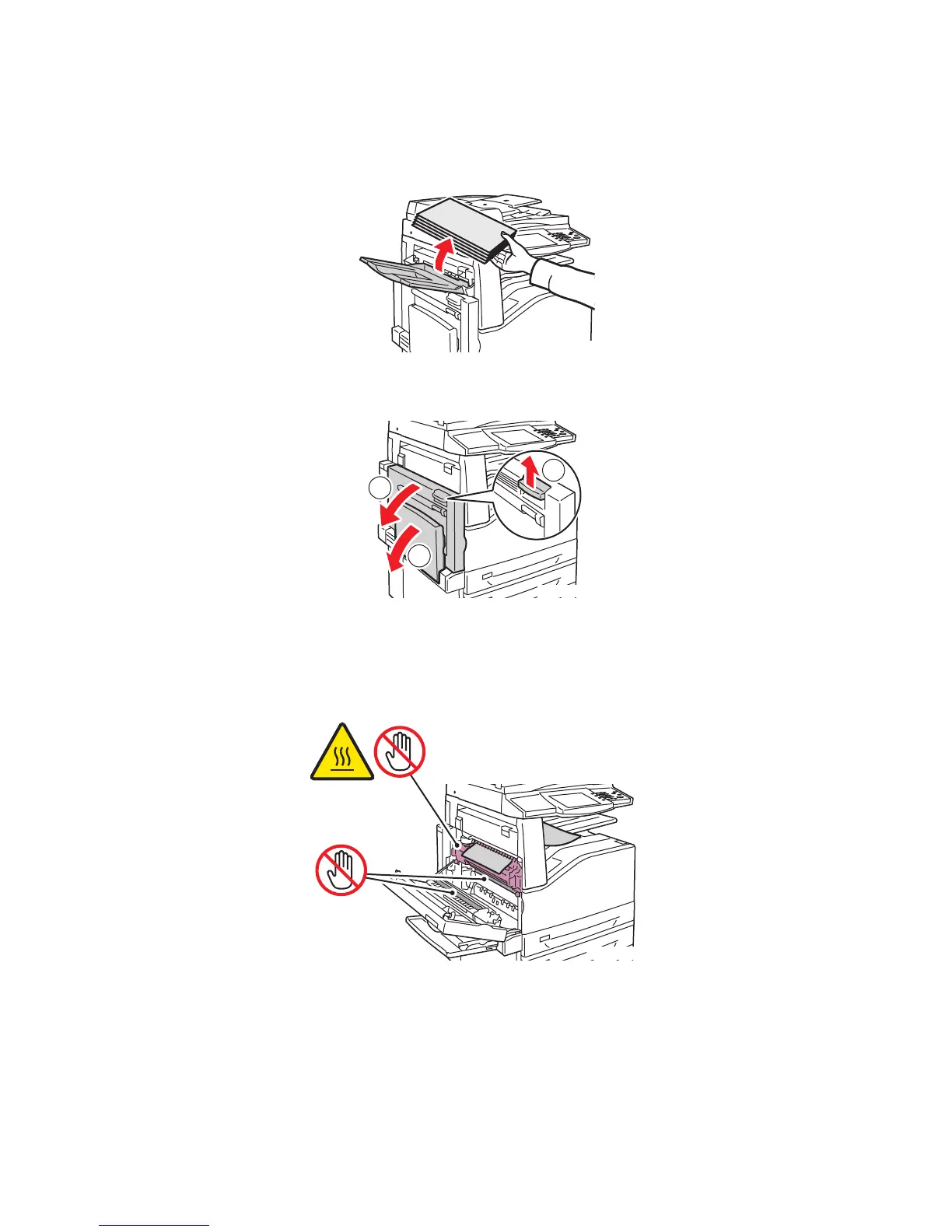

1. Remove paper from the Top Left Tray, then fold the tray up.
2. Open Tray 5 (Bypass) (1). While lifting up the release lever (2), open the top left cover (3).
Warning: The area around the fuser may be hot. Use caution to avoid injury.
Note: Do not touch the transfer belt. This could reduce image quality or damage the transfer belt.
Do not touch the transfer roller. This could reduce image quality.
3. If paper is jammed at the exit to the output tray, remove the paper by carefully pulling it straight
out in the direction shown.
2
3
1
-
-
To Next Page
