Clearing Paper Jams
WorkCentre 7425/7428/7435
User Guide
201

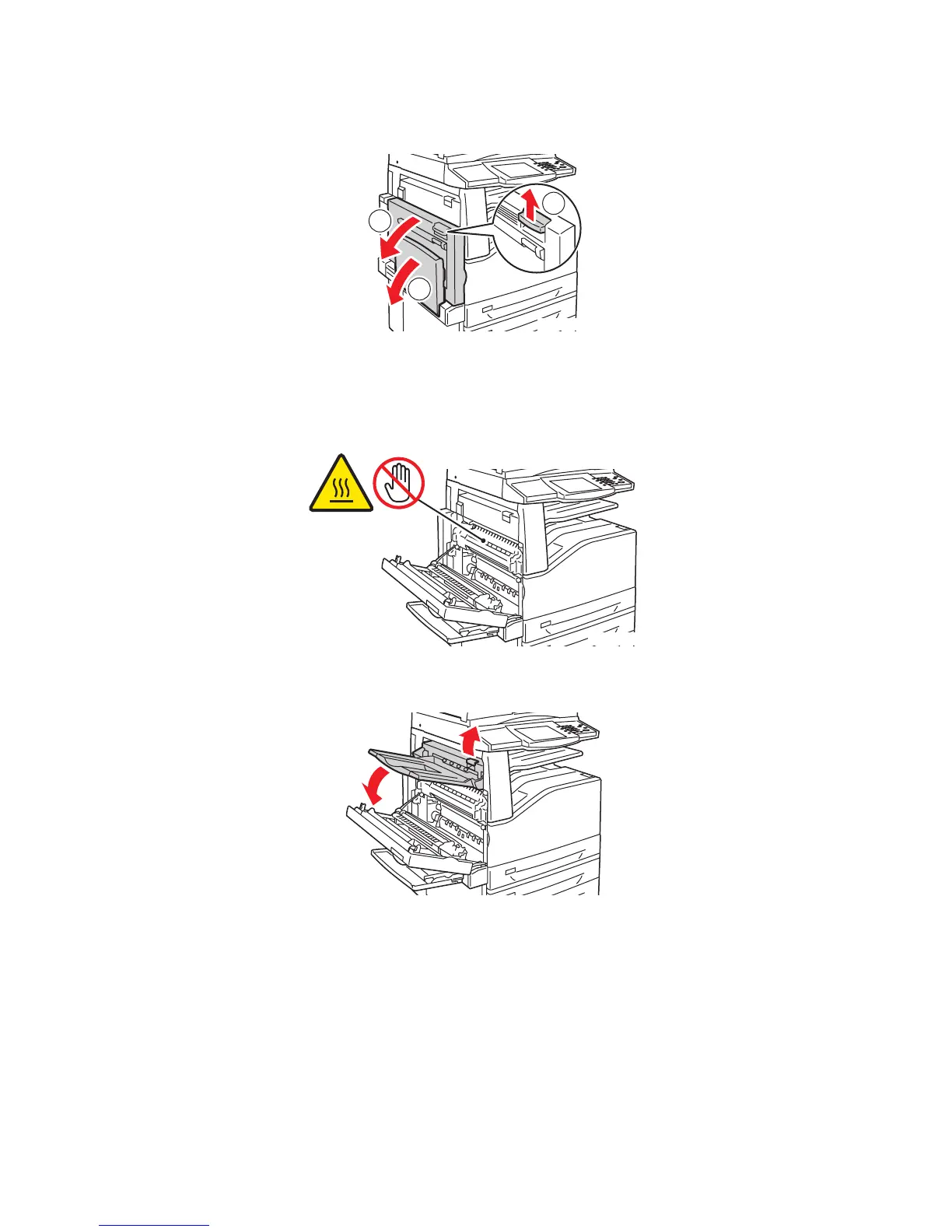

2. Open Tray 5 (Bypass) (1). While lifting up the release lever (2), open the top left cover (3).
Warning: The area around the fuser may be hot. Use caution to avoid injury.
Note: Do not touch the transfer belt. This could reduce image quality or damage the transfer belt.
Do not touch the transfer roller. This could reduce image quality.
3. Lift the lever up to open top left cover D.
2
3
1
-
-
w
74xx-
1
To Next Page
