Troubleshooting
WorkCentre 7425/7428/7435
User Guide
204

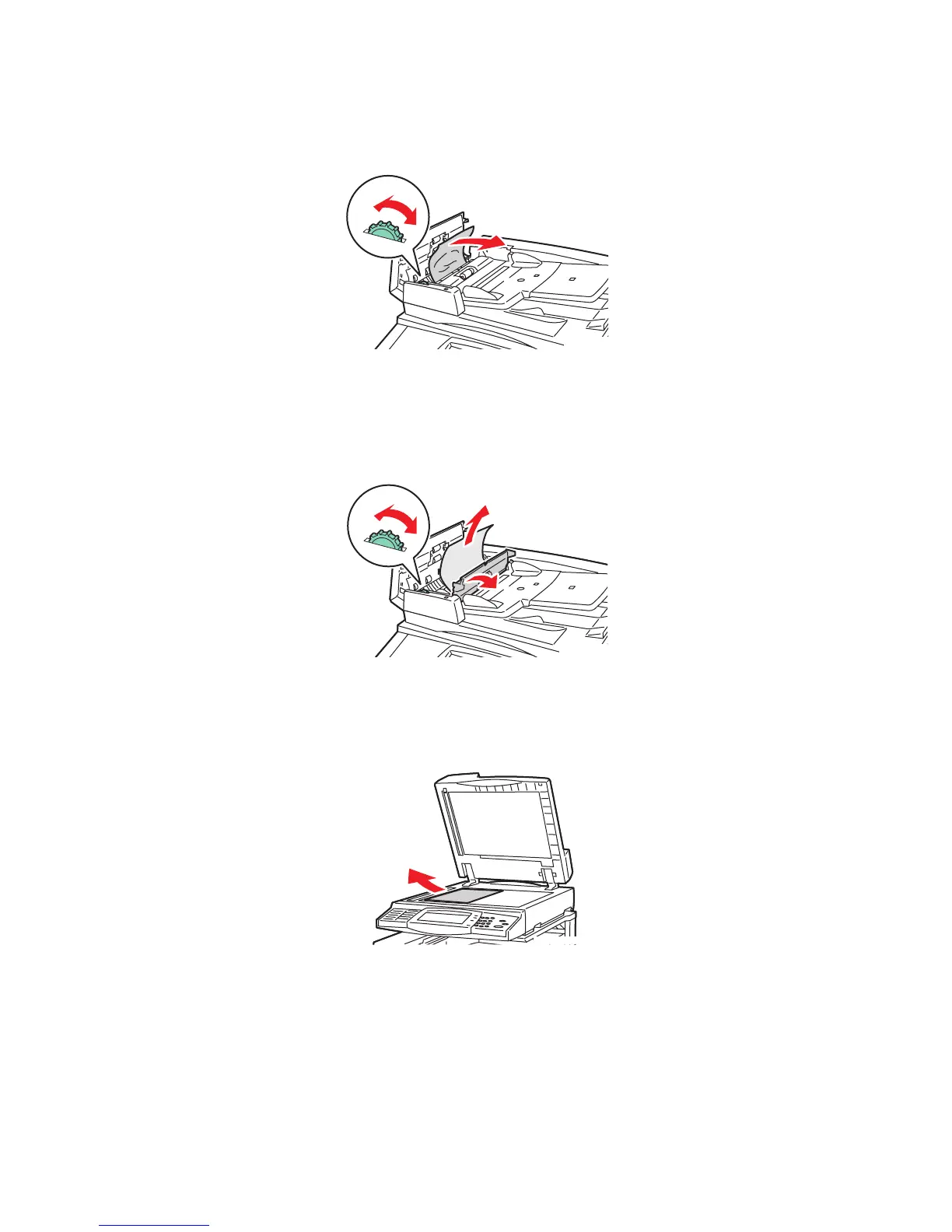

3. If the message on the printer touch screen instructs you to turn the wheel, turn the green wheel in
the direction shown to move the original out of the feeder.
4. If the message on the printer touch screen instructs you to open the inner cover, lift up the lever
with the green tab to open the inner cover.
5. Turn the green wheel in the direction shown to move the original out of the feeder. Carefully
remove the jammed original.
6. Close the inner cover, then close the top cover, pressing it down until it clicks into place.
7. If the original is not visible when the top cover is opened, lift the document cover, then remove
the original.
wc74xx-029
wc74xx-030
-
