Clearing Paper Jams
WorkCentre 7425/7428/7435
User Guide
209

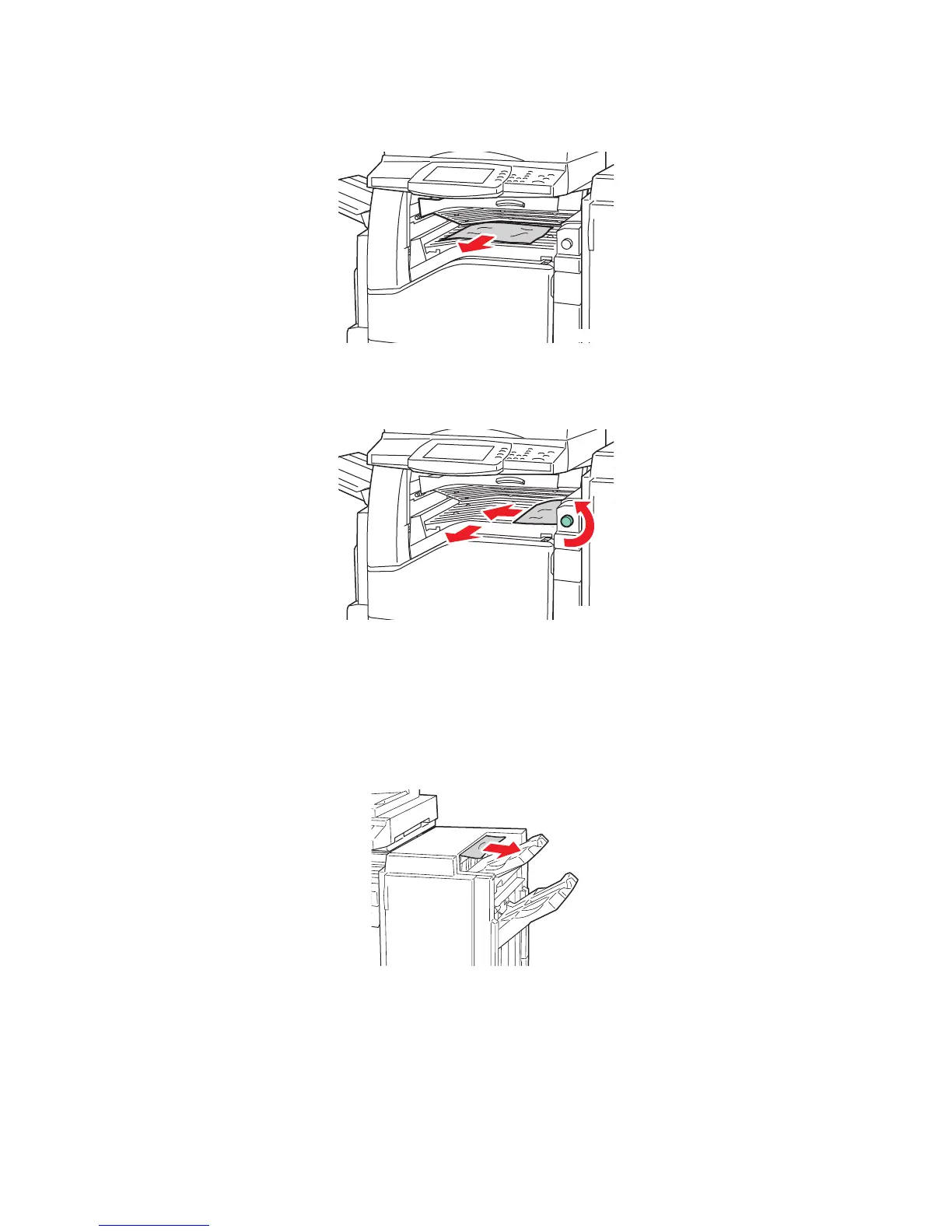

2. Remove the jammed paper.
3. If no paper is visible, turn green knob 1 in the direction shown and carefully pull out the jammed
paper.
4. Close the finisher transport cover.
Paper Jams at 2a in the Finisher
1. If the paper is visible at the output tray exit, carefully remove the paper by pulling it in the direction
shown.
wc74xx-047
wc74xx-048
wc74xx-04
