03/02 8.18 Printer Kit
WorkCentre Pro 423/428 8-43 CHAPTER 8 ACCESSORIES

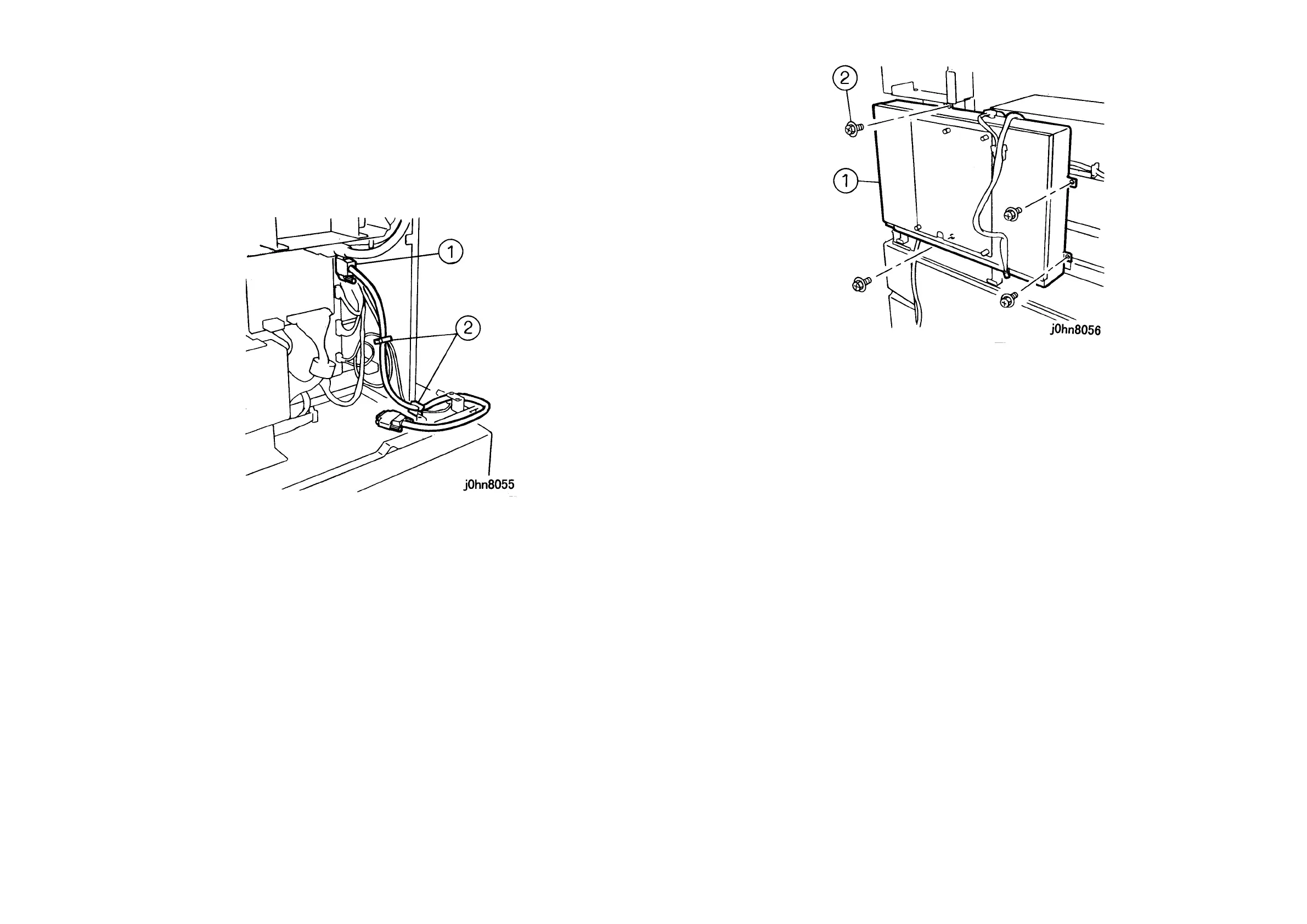

13. Install the Cable. (Figure-3)
CAUTION
Electric parts may be damaged by static electricity. Be sure to wear a wrist strap when handling
electric parts. If no wrist strap is available, touch a metal section before work to eliminate static
electricity as far as possible.
1) Connect the Connector.
2) Secure it with the Clamps (2).
(Figure-3) j0hn8055
14. Install the ESS Box. (Figure-4)
1) Install the ESS Box.
2) Tighten the screws (4).
(Figure-4) j0hn8056
