Xerox WorkCentre Pro 423 Service Manual

03/02 8.20 Token Ring
WorkCentre Pro 423/428 8-49 CHAPTER 8 ACCESSORIES

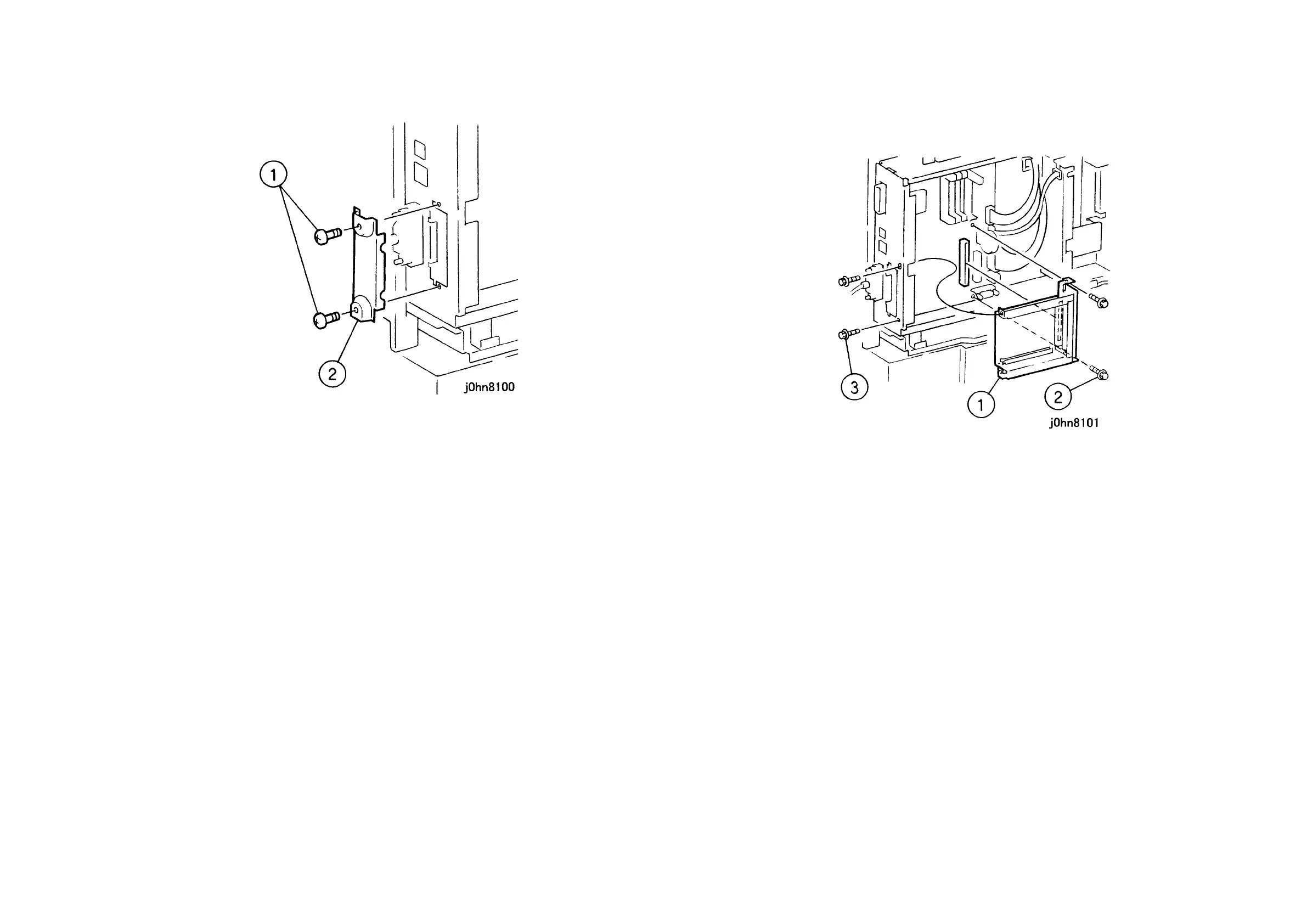

4. Remove the Slot Cover. (Figure-3)
1) Remove the Screws (2).
2) Remove the Slot Cover.
(Figure-3) j0hn8100
5. Install the Mother PWB Assembly with the Screws (2) in the kit and the Screws (2)
removed in Step 3. (Figure-4)
1) Install the Mother PWB Assembly.
2) Tighten the Screws (2).
3) Tighten the Screws (2).
(Figure-4) j0hn8101
