HW-130 Programmer User Guide
1-4 Xilinx Development System

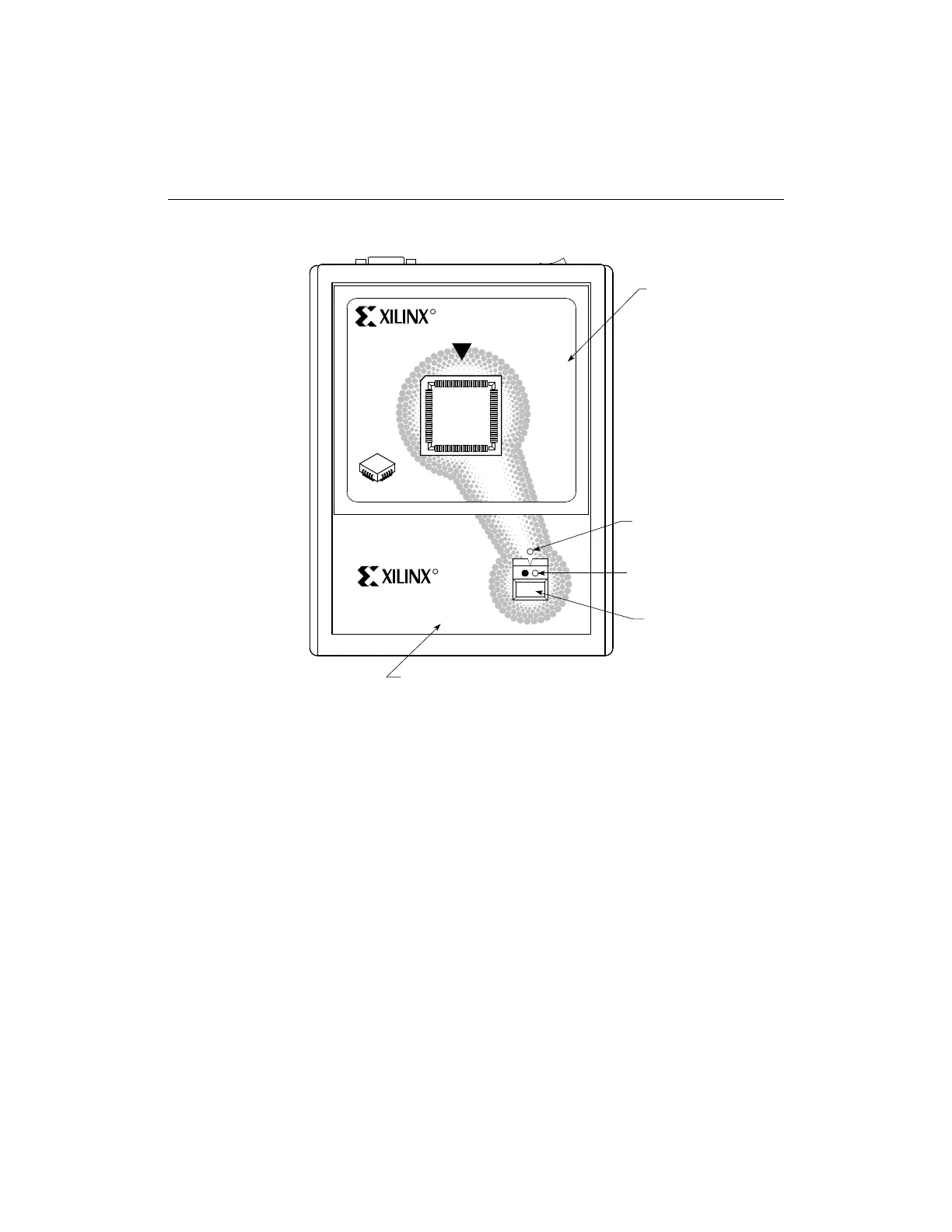

Figure 1-1 Top Panel of Programmer
On the back panel of the programmer, there is a power jack, an ON-
OFF power switch, a female DB9 serial port connector, and a Ground
jack for use with an ESD wrist strap. Figure 1-2 illustrates these
features.
FAIL
PASS
PIN
1
HW-133-PC84
Socket Adapter,
Removable
LED, 
Power Indicator
Switch, 
Push-button
LEDs (2), 
Fail or Pass Indicators
XC7300 EPLD
HW-130 Programmer
INSERT LEADS DOWN
Programming
Adapter
X4904
R
R
PIN
1
Base, HW-130 Programmer
