HW-130 Programmer User Guide C-1
Appendix C
Automation
This chapter describes the setup and operation of the HW-130
programmer in conjunction with autohandling equipment.
Selecting the Autohandler Mode
To select the autohandler mode of operation, follow these
instructions.
1. Connect the HW-130 programmer to the autohandler.
Refer to Figure C-1 for the appropriate interface timing and Figure
C-2 for signal locations.

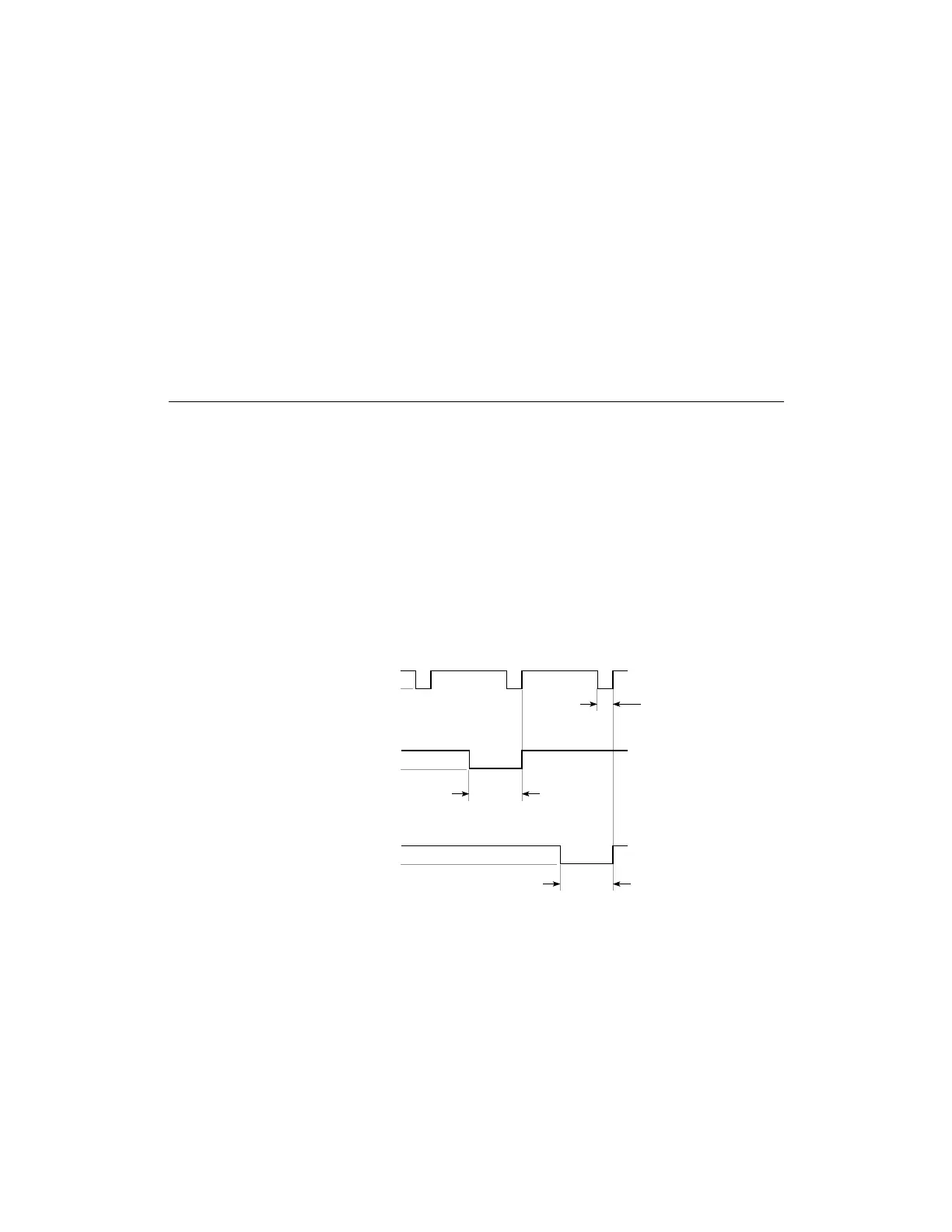

Figure C-1 Handler Timing for HW-130 Programmer
Request assistance from the autohandler manufacturer for proper
connection (both mechanical as well as electrical).
START
OF TEST
PASS SIGNAL
FAIL SIGNAL
Start Pulse
20 ms (typ)
+5
0
+5
0
+5
0
X6616
Handler Binning Occurs
(Pass)
Handler Binning Occurs
(Fail)
