Xilinx Spartan-3E User Manual

Spartan-3E Starter Kit Board User Guide www.xilinx.com 117
UG230 (v1.0) March 9, 2006
Hirose 100-pin FX2 Edge Connector (J3)
R

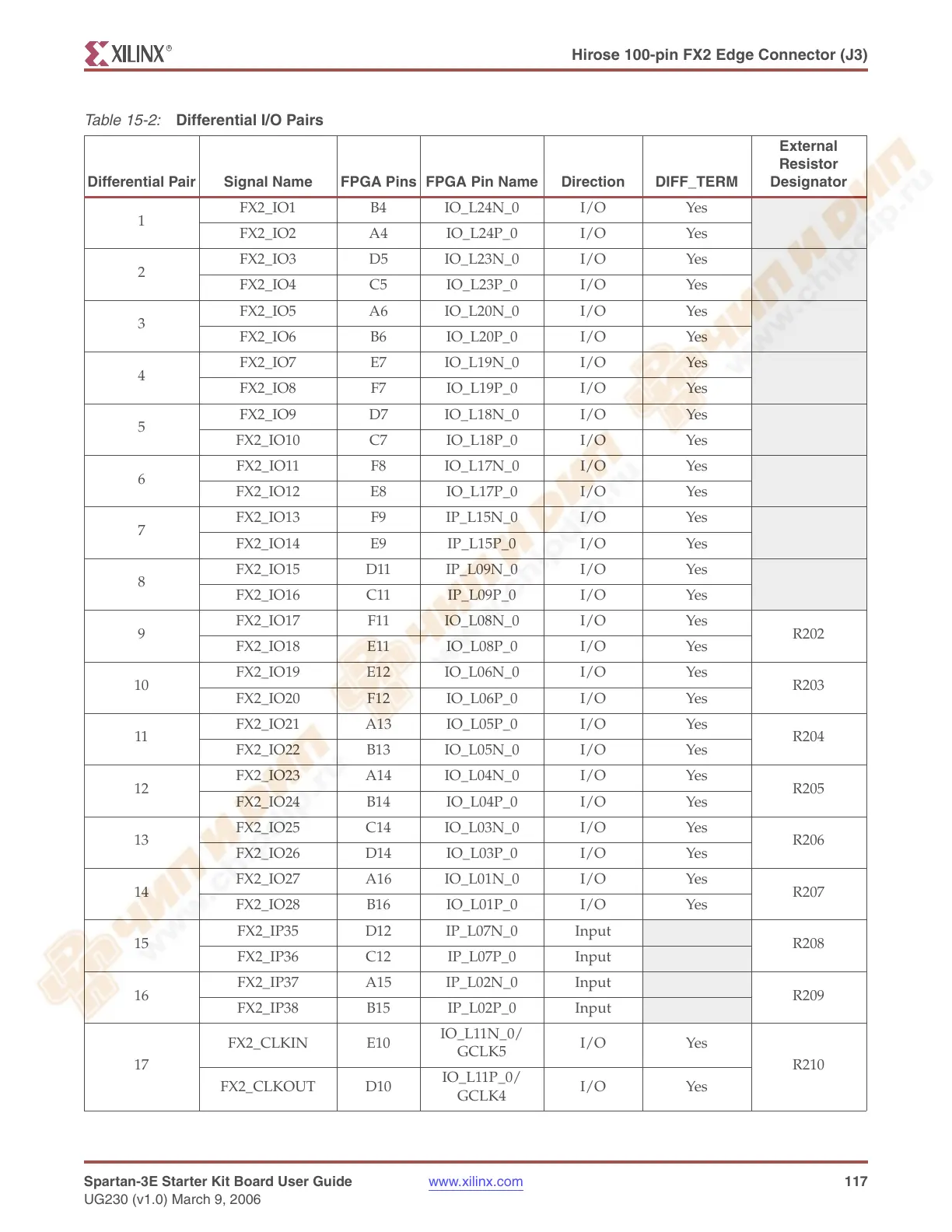

Table 15-2: Differential I/O Pairs
Differential Pair Signal Name FPGA Pins FPGA Pin Name Direction DIFF_TERM
External
Resistor
Designator
1
FX2_IO1 B4 IO_L24N_0 I/O Yes
FX2_IO2 A4 IO_L24P_0 I/O Yes
2
FX2_IO3 D5 IO_L23N_0 I/O Yes
FX2_IO4 C5 IO_L23P_0 I/O Yes
3
FX2_IO5 A6 IO_L20N_0 I/O Yes
FX2_IO6 B6 IO_L20P_0 I/O Yes
4
FX2_IO7 E7 IO_L19N_0 I/O Yes
FX2_IO8 F7 IO_L19P_0 I/O Yes
5
FX2_IO9 D7 IO_L18N_0 I/O Yes
FX2_IO10 C7 IO_L18P_0 I/O Yes
6
FX2_IO11 F8 IO_L17N_0 I/O Yes
FX2_IO12 E8 IO_L17P_0 I/O Yes
7
FX2_IO13 F9 IP_L15N_0 I/O Yes
FX2_IO14 E9 IP_L15P_0 I/O Yes
8
FX2_IO15 D11 IP_L09N_0 I/O Yes
FX2_IO16 C11 IP_L09P_0 I/O Yes
9
FX2_IO17 F11 IO_L08N_0 I/O Yes
R202
FX2_IO18 E11 IO_L08P_0 I/O Yes
10
FX2_IO19 E12 IO_L06N_0 I/O Yes
R203
FX2_IO20 F12 IO_L06P_0 I/O Yes
11
FX2_IO21 A13 IO_L05P_0 I/O Yes
R204
FX2_IO22 B13 IO_L05N_0 I/O Yes
12
FX2_IO23 A14 IO_L04N_0 I/O Yes
R205
FX2_IO24 B14 IO_L04P_0 I/O Yes
13
FX2_IO25 C14 IO_L03N_0 I/O Yes
R206
FX2_IO26 D14 IO_L03P_0 I/O Yes
14
FX2_IO27 A16 IO_L01N_0 I/O Yes
R207
FX2_IO28 B16 IO_L01P_0 I/O Yes
15
FX2_IP35 D12 IP_L07N_0 Input
R208
FX2_IP36 C12 IP_L07P_0 Input
16
FX2_IP37 A15 IP_L02N_0 Input
R209
FX2_IP38 B15 IP_L02P_0 Input
17
FX2_CLKIN E10
IO_L11N_0/
GCLK5
I/O Yes
R210
FX2_CLKOUT D10
IO_L11P_0/
GCLK4
I/O Yes
