Spartan-3E Start Kit Board User Guide www.xilinx.com 131
UG230 (v1.0) March 9, 2006
R

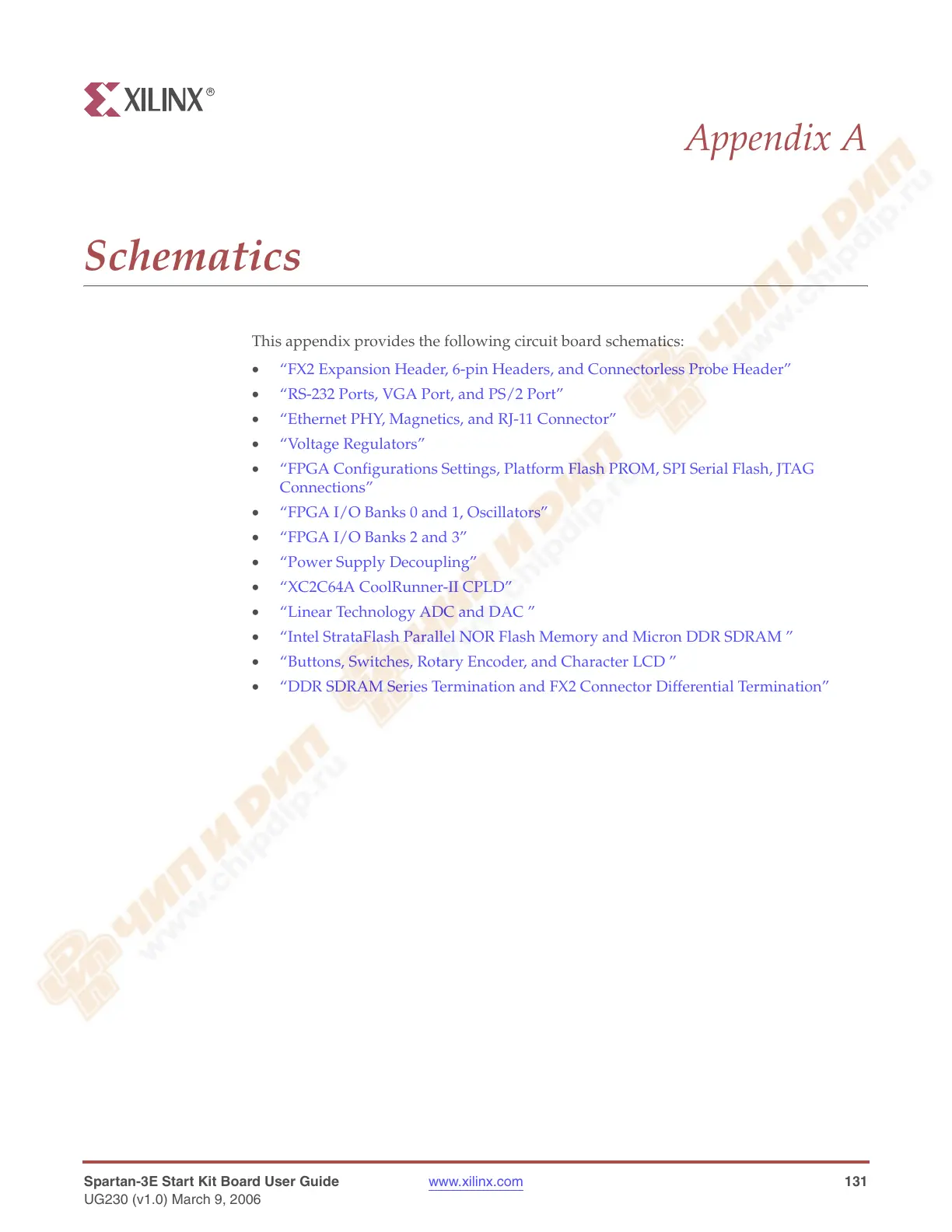

Appendix A
Schematics
This appendix provides the following circuit board schematics:
• “FX2 Expansion Header, 6-pin Headers, and Connectorless Probe Header”
• “RS-232 Ports, VGA Port, and PS/2 Port”
• “Ethernet PHY, Magnetics, and RJ-11 Connector”
• “Voltage Regulators”
• “FPGA Configurations Settings, Platform Flash PROM, SPI Serial Flash, JTAG
Connections”
• “FPGA I/O Banks 0 and 1, Oscillators”
• “FPGA I/O Banks 2 and 3”
• “Power Supply Decoupling”
• “XC2C64A CoolRunner-II CPLD”
• “Linear Technology ADC and DAC ”
• “Intel StrataFlash Parallel NOR Flash Memory and Micron DDR SDRAM ”
• “Buttons, Switches, Rotary Encoder, and Character LCD ”
• “DDR SDRAM Series Termination and FX2 Connector Differential Termination”
