Spartan-3E Start Kit Board User Guide www.xilinx.com 141
UG230 (v1.0) March 9, 2006
FPGA Configurations Settings, Platform Flash PROM, SPI Serial Flash, JTAG Connections
R

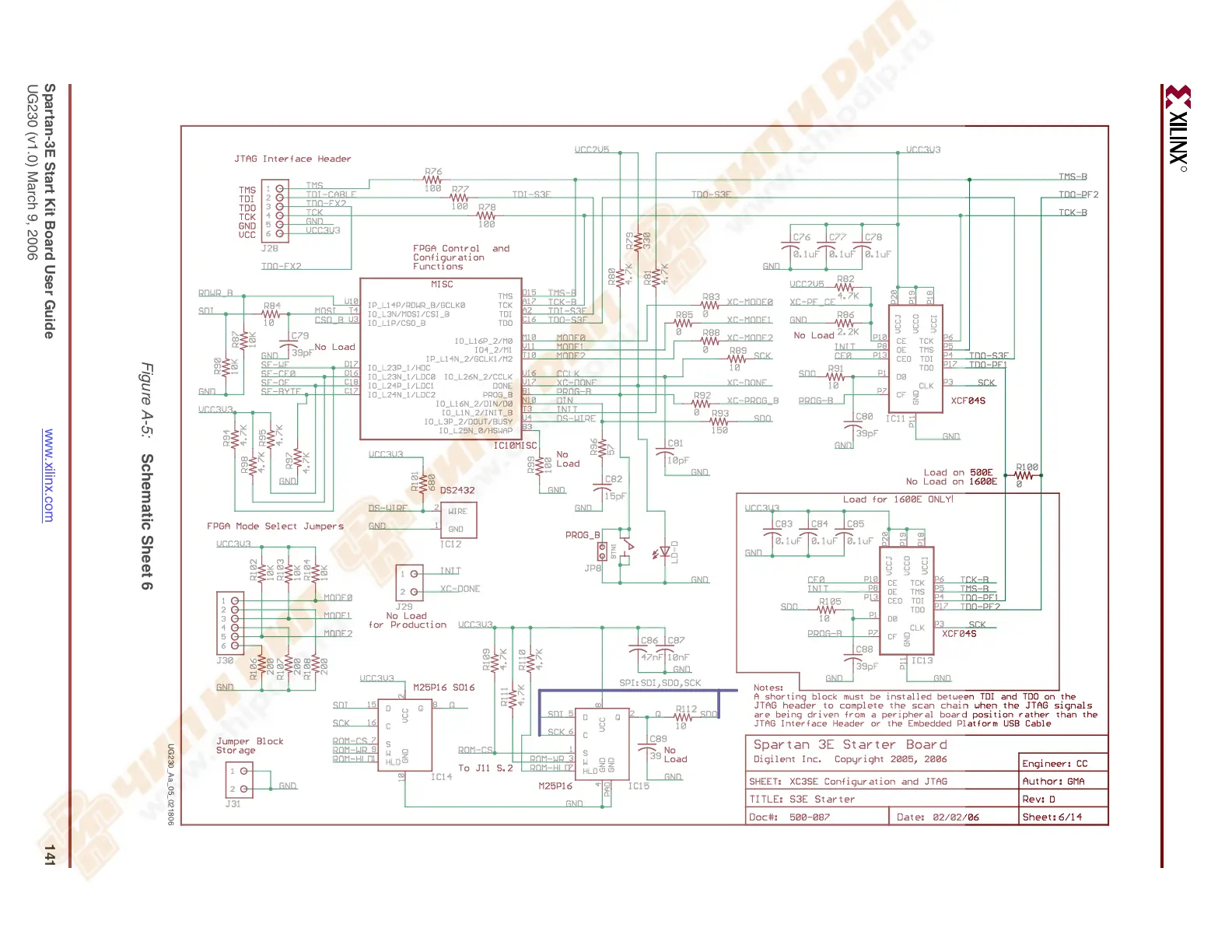

Figure A-5:
Schematic Sheet 6
UG230_Aa_05_021806
