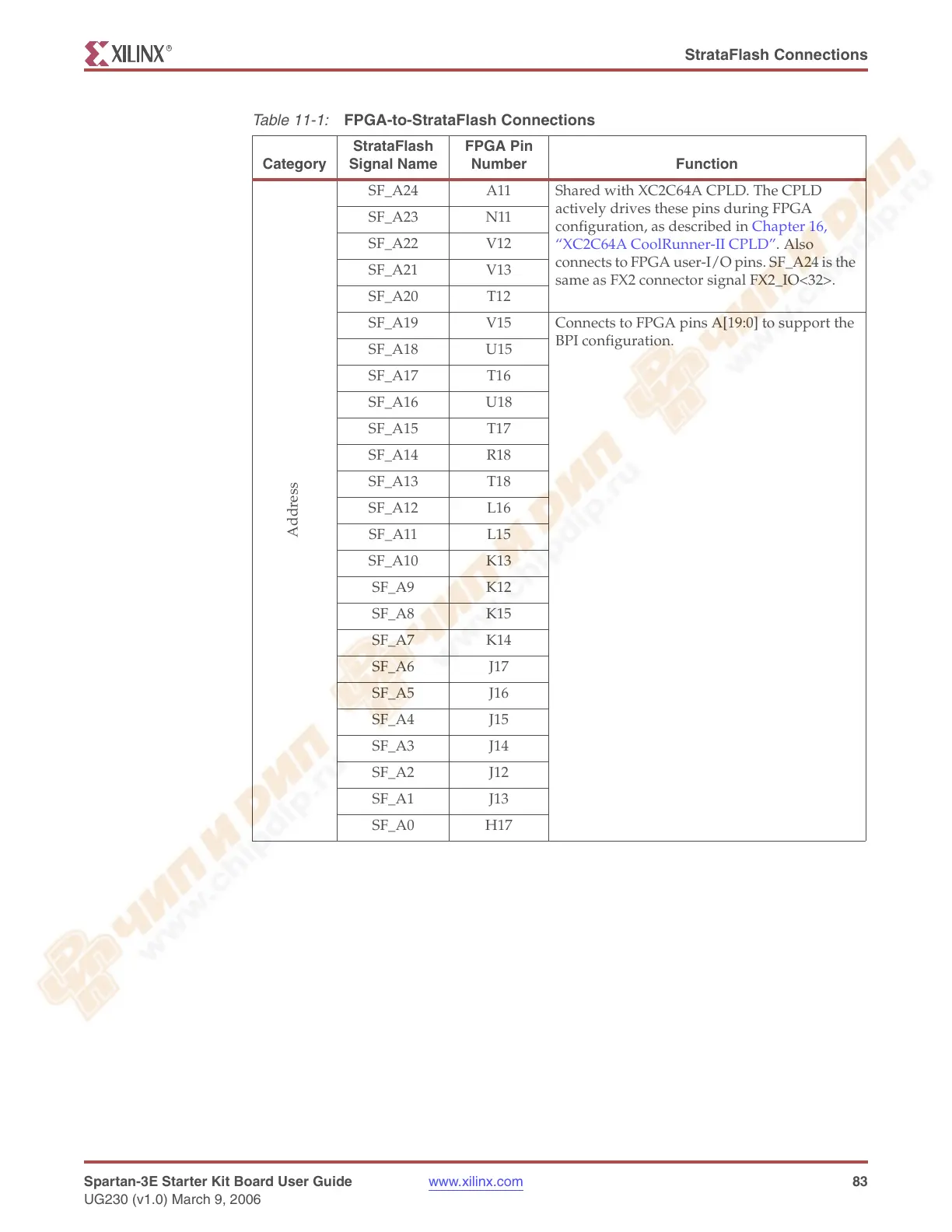

Spartan-3E Starter Kit Board User Guide www.xilinx.com 83

UG230 (v1.0) March 9, 2006

StrataFlash Connections

Table 11-1:

FPGA-to-StrataFlash Connections

Category

StrataFlash

Signal Name

FPGA Pin

Number Function

Address

SF_A24 A11 Shared with XC2C64A CPLD. The CPLD

actively drives these pins during FPGA

configuration, as described in Chapter 16,

“XC2C64A CoolRunner-II CPLD”. Also

connects to FPGA user-I/O pins. SF_A24 is the

same as FX2 connector signal FX2_IO<32>.

SF_A23 N11

SF_A22 V12

SF_A21 V13

SF_A20 T12

SF_A19 V15 Connects to FPGA pins A[19:0] to support the

BPI configuration.

SF_A18 U15

SF_A17 T16

SF_A16 U18

SF_A15 T17

SF_A14 R18

SF_A13 T18

SF_A12 L16

SF_A11 L15

SF_A10 K13

SF_A9 K12

SF_A8 K15

SF_A7 K14

SF_A6 J17

SF_A5 J16

SF_A4 J15

SF_A3 J14

SF_A2 J12

SF_A1 J13

SF_A0 H17
