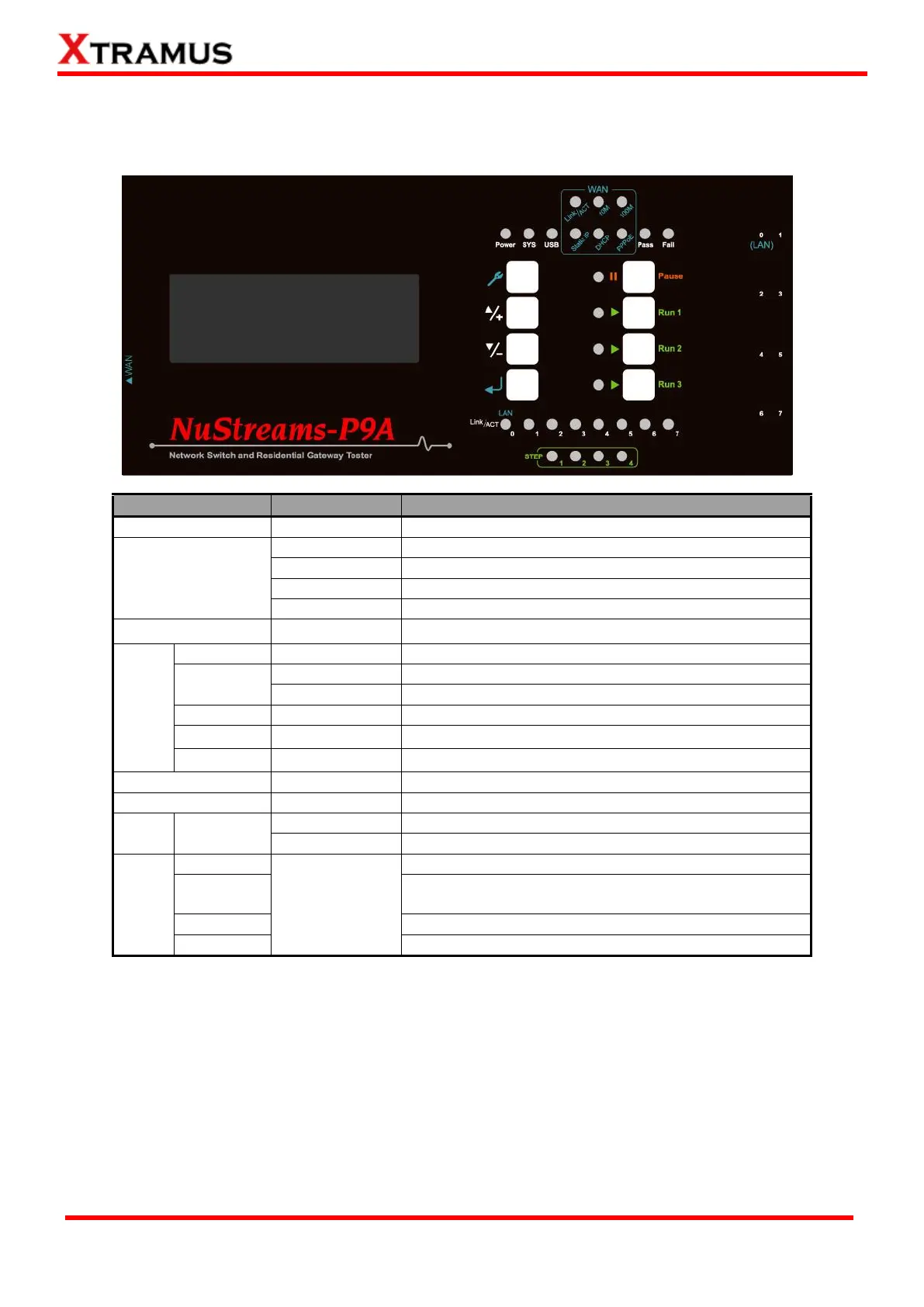

2.3.2. NuStreams-P9A Front Panel – LED Status
The table down below contains NuStreams-P9A’s front panel LED status and their meanings.
LED
Status
Description
Power
On
NuStreams-P9A is on
SYS
Off
NuStreams-P9A’s CPU system down
On
NuStreams-P9A CPU system initializing
Green Blinking
NuStreams-P9A’s CPU system active and running
Yellow On
NuStreams-P9A is not starting properly
USB
Green On
NuStreams-P9A is connecting to PC via USB cable
WAN
10M/100M
Green On
NuStreams-P9A’s connection with DUT is active
Link/ACT
Green On
WAN connection established and standing-by
Green Blinking
Test packets sending via WAN ports
Static IP
Blue On
DUT WAN connection is set to Static-IP
DHCP
Amber On
DUT WAN connection is set to DHCP
PPPoE
Green On
DUT WAN connection is set to PPPoE
Pass
Green On
DUT test passed
Fail
Red On
DUT test failed
LAN
Link/ACT
0 ~ 7
Green On
NuStreams-P9A’s connection with DUT is active
Green Blinking
The corresponding LAN port is performing test
STEP
1
Green On
Auto-Negotiation
2
Residential Gateway: Waiting ARP Reply
Switch: Sending Learning Packets
3
Starting DUT tests
4
Test complete, generating test results and report
