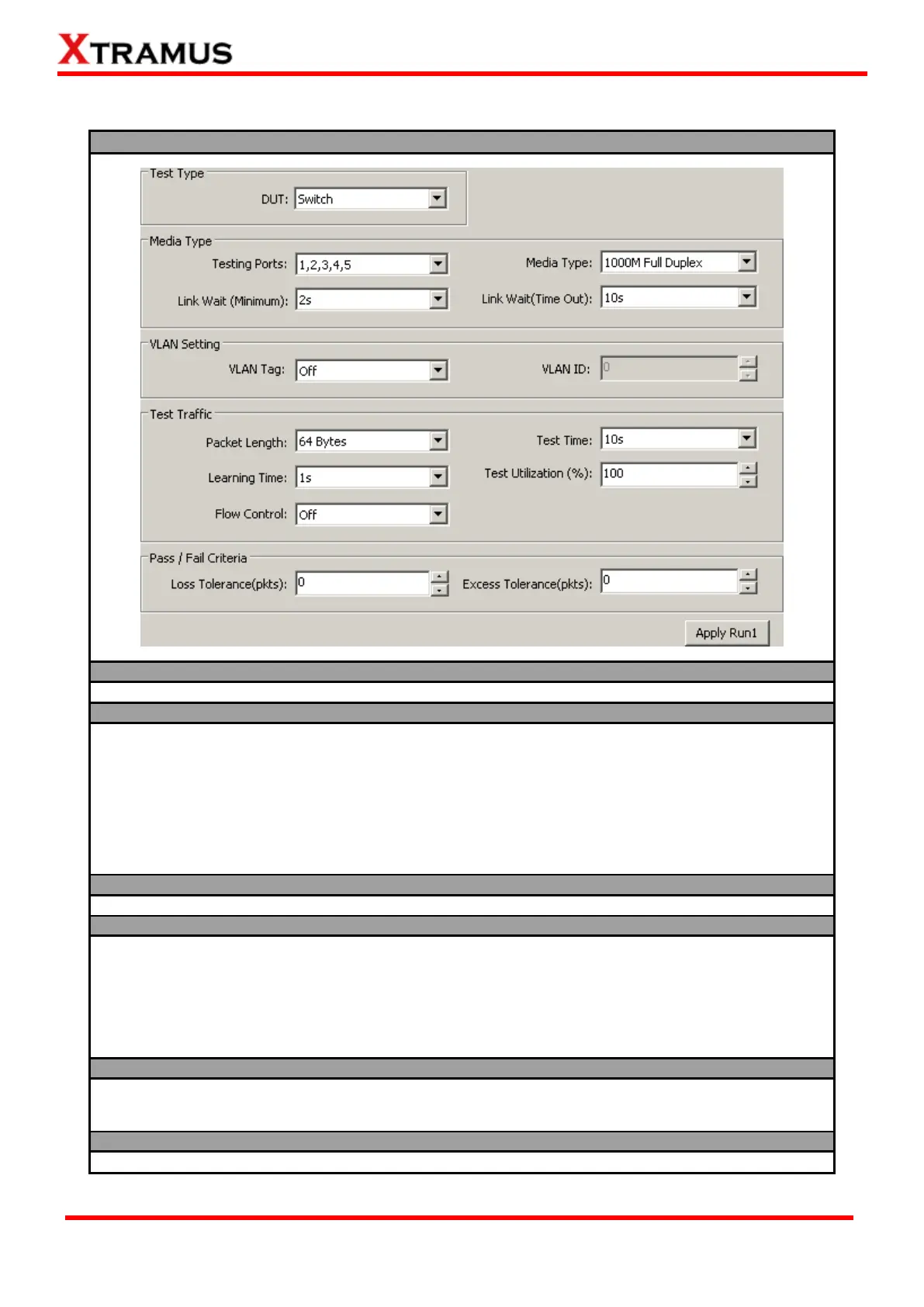

5.3.5.2. NuSet-MiniPG-Config Task Setting – Switch
DUT – Switch
Test Type/DUT Description
 DUT: Choose “Switch” from this scroll-down menu to start configuring switch tests.
Media Type
 Testing Ports: Please connect the DUT with
NuStreams-P5G/P9A’s Switch Ports with Cat-5
cables according to the Testing LAN Ports you set
here.
 Media Type: You can set the connection speed here
with the scroll-down menu.
 Link Wait (Minimum): NuStreams-P5G/P9A will
attempt to establish connection with the DUT and wait
for the minimum time (seconds). NuStreams-P5G/P9A
will keep waiting until the minimum time is met even the
DUT has already responded.
 Link Wait (Time Out): NuStreams-P5G/P9A will
attempt to establish connection with the DUT and wait
for a period of time until time out (second), and
NuStreams-P5G/P9A will not attempt to establish
connection anymore.
VLAN Setting
 VLAN Tag: Add VLAN tags to all packets.
 VLAN ID: VLAN ID.
Test Traffic
 Packet Length: The length of test packets (from
64~1600 Bytes) transmitting by NuStreams-P5G/P9A.
 Test Time: The duration of time for DUT test.
 Learning Time: NuStreams-P5G/P9A will start sending
send learning packets to the DUT. The DUT will record
the MAC addresses of these packets, and learn the
routing to NuStreams-P5G/P9A.
 Test Utilization (%): The traffic flow ratio of the entire
network, presented in percentage (1~99).
 Flow Control: When Flow Control is enabled, the transmitting rate will drop if traffic overflow occurs.
Pass/Fail Criteria
 Loss Tolerance (pkts): The acceptable number of lost
packets in data transmitting during tests (0~9999).
 Excess Tolerance (pkts): The acceptable number of
excess packets in data transmitting during tests
(0~9999).
Apply Run
 Click this button to apply all the settings you’ve made and save the settings to NuStreams-P5G/P9A.
