3.2.3. Installation for Residential Gateway (Broadband Router) + Switch Test

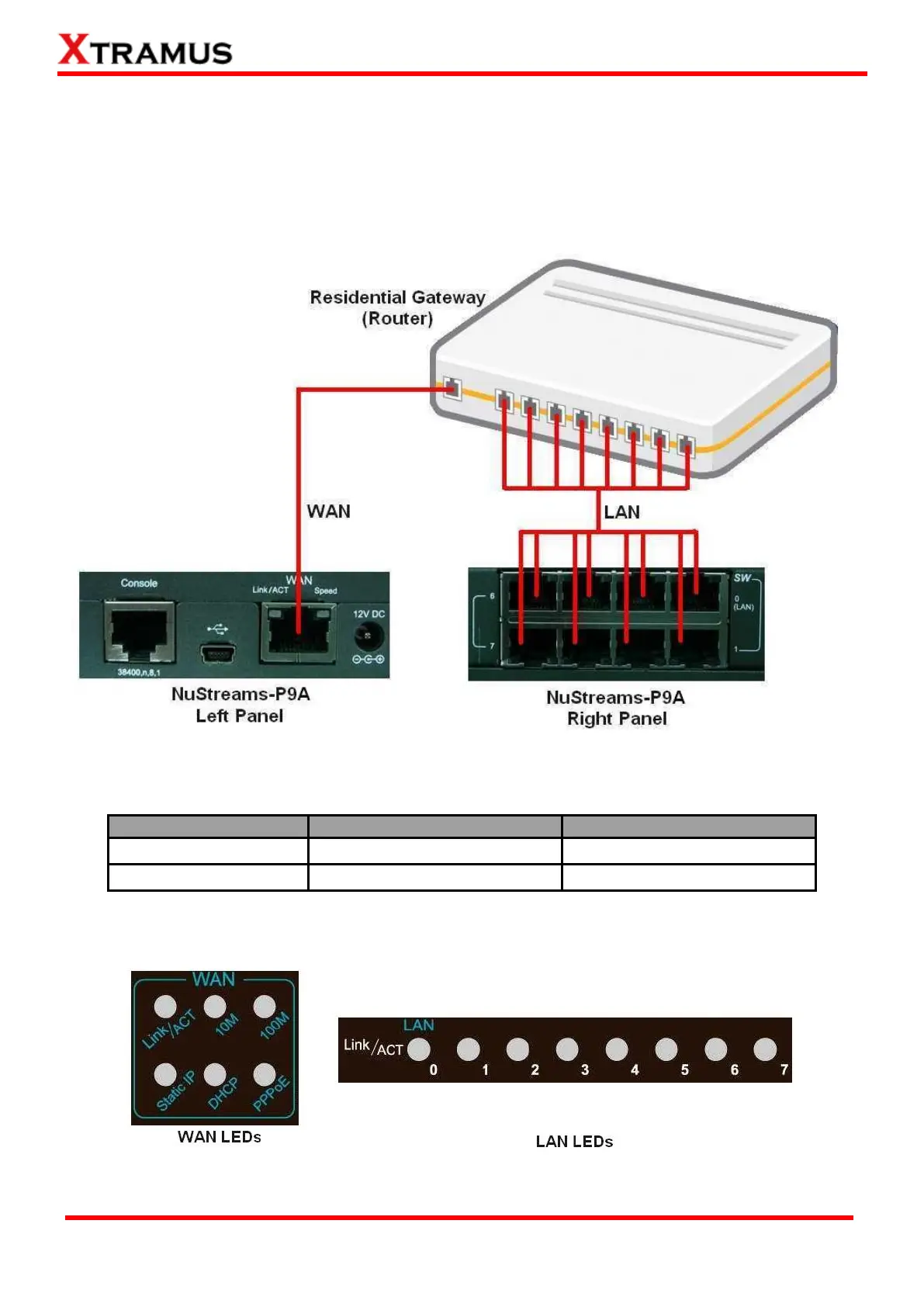

While performing tests on Residential Gateway (Residential Router) + Switch, both WAN and LAN
ports of the DUT must be connected to NuStreams-P9A with CAT-5 UTP cables as the installation
structure when performing tests on Residential Gateway (Residential Router) as shown in the figure
down below:
Test options for Residential Gateway (Residential Router) + Switch and Residential Gateway
(Residential Router) are very similar, with minor differences listed in the table down below:
DUT Type
Residential Gateway + Switch
Residential Gateway
LAN Port Select
✓
✘
Flow Control
✓
✘
If both NuStreams-P9A and the DUT are connected with CAT-5 UTP cables correctly, NuStreams-P9A’s
LAN and WAN LEDs will be ON accordingly.
