3. Hardware Installation of NuStreams-P5G & NuStreams-P9A
NuStreams-P5G and NuStreams-P9A can perform tests on Residential Gateway (Broadband Router),
Switch, or Residential Gateway + Switch. Each test has its own different test options and parameters.
To perform tests on different DUTs mentioned above, you have to connect your NuStreams-P5G or
NuStreams-P9A differently. Please see the installation structure mentioned in this chapter for more detail
information.
3.1. Hardware Installation for NuStreams-P5G
3.1.1. Installation for Residential Gateway (Broadband Router) Test

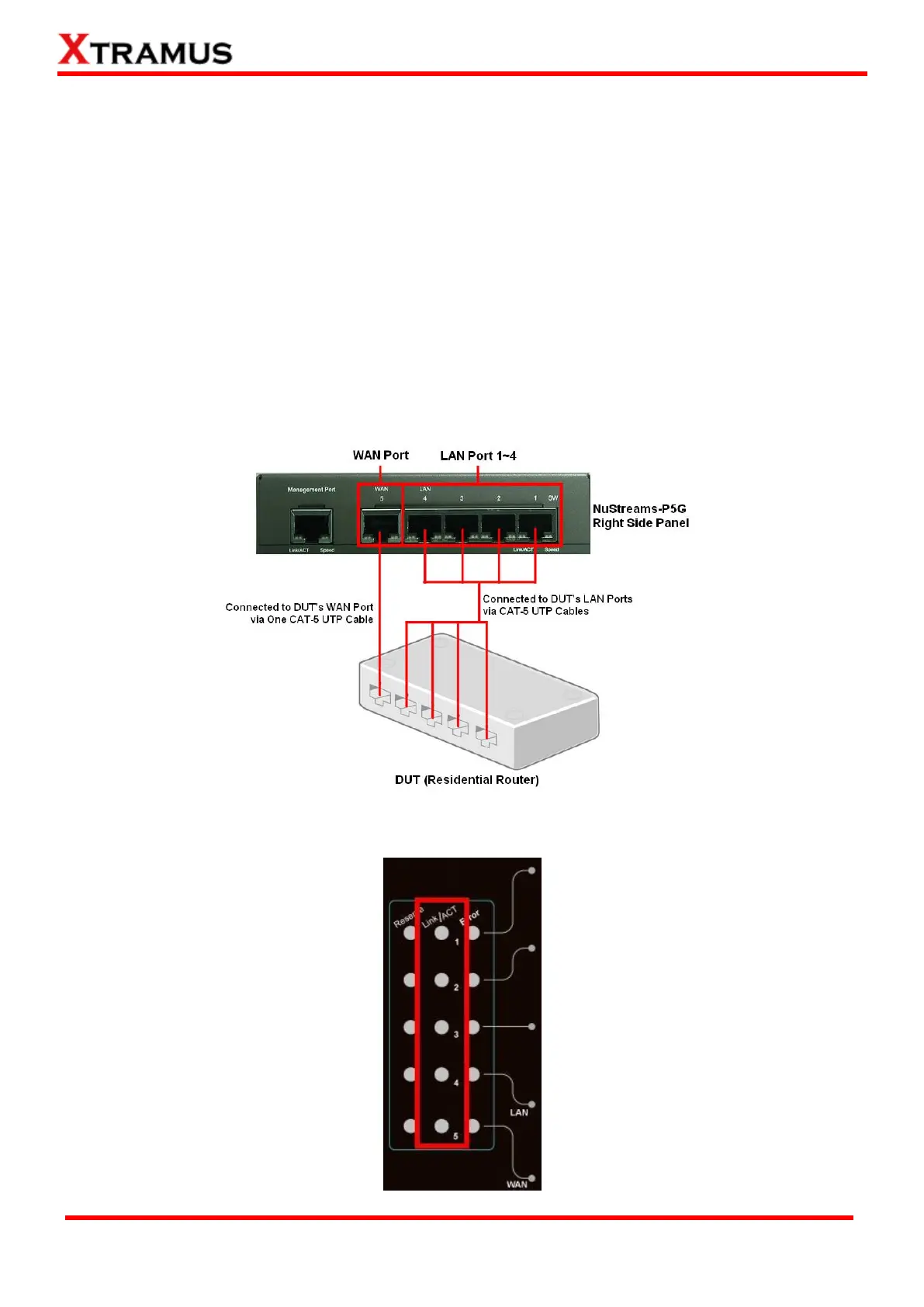

While performing tests on Residential Gateway (Broadband Router), both WAN and LAN ports of the
DUT must be connected to NuStreams-P5G with CAT-5 UTP cables as shown in the figure down below:
If NuStreams-P5G’s WAN/LAN Ports and DUT’s ports are connected via CAT-5 UTP cables correctly,
the Link/ACT LEDs located on NuStreams-P5G’s LAN Port Status LED will be ON accordingly.
