SonTek RS5 User Manual (August 2020) 34

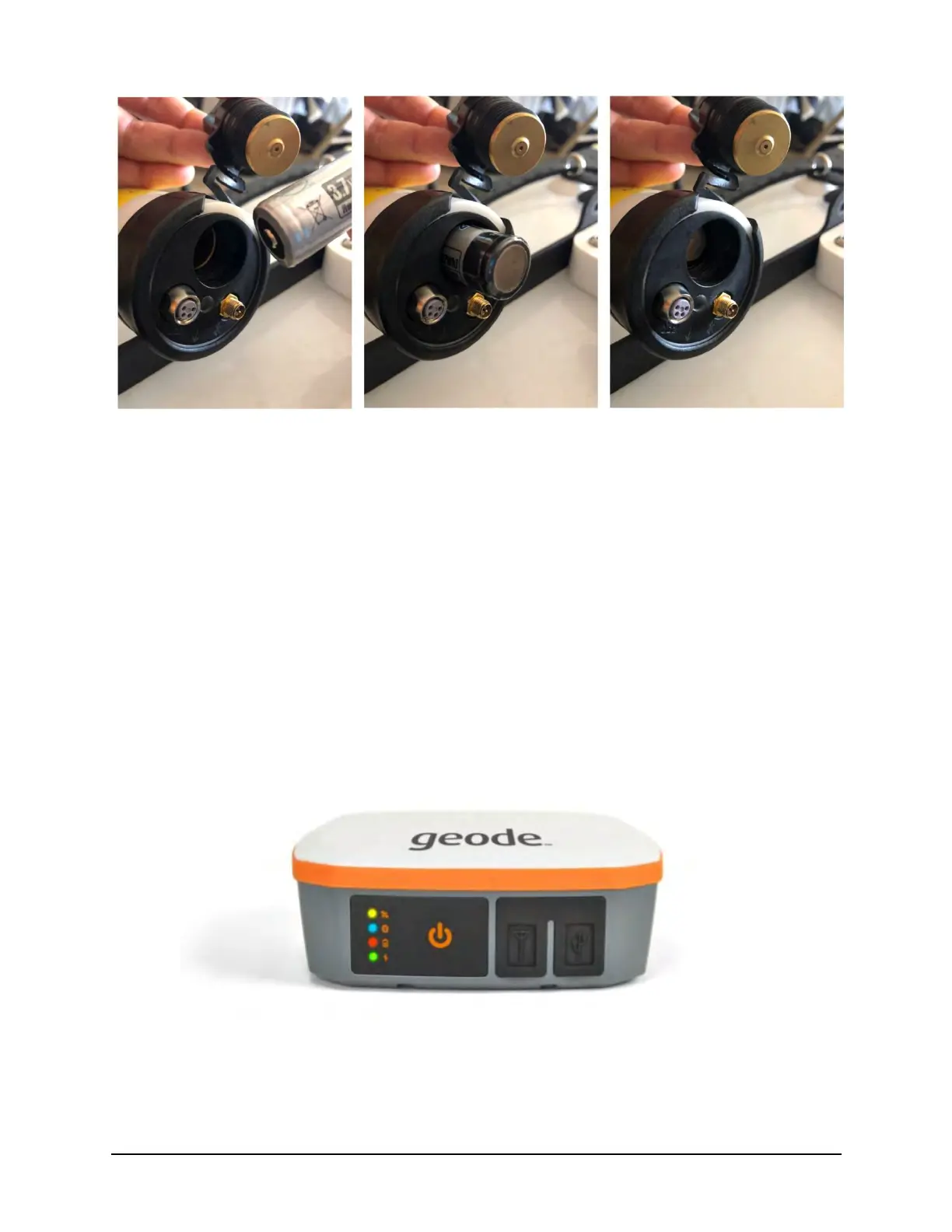

Figure 9. Place Battery Inside Compartm ent
The system’s LED light will flash white quickly, followed by two fast red flashes. After a
few seconds of delay, the LED will flash slowly red, indicating that it is powered on and
in Stand-by mode and ready for connection.
5.2. Powering on GNSS Accessories (Max)
5.2.1 Differential GNSS: Geode Antenna
The RS5 Differential GNSS solution comes standard with a Geode TM antenna
manufactured by Juniper Systems. The Geode antenna comes equipped with its own
battery, which requires charging using its own supplied charging cable, pictured in
Figure 10.
Figure 10. Geode Antenna
To turn on the Geode antenna, push the large Power button, shown in Figure 10.
Various lights will flash and illuminate on the system. Please refer to the Geode manual
