SonTek RS5 User Manual (August 2020) 90
7.10.3 Start Sampling
From the Smart Page, click the Start Sampling button (or use [F5]) to begin data
collection (Figure 62). Alternatively, sampling can begin from the Loop or SMBA dialogs
by choosing to proceed to the Start Edge. The data preview display will appear (Figure
70).

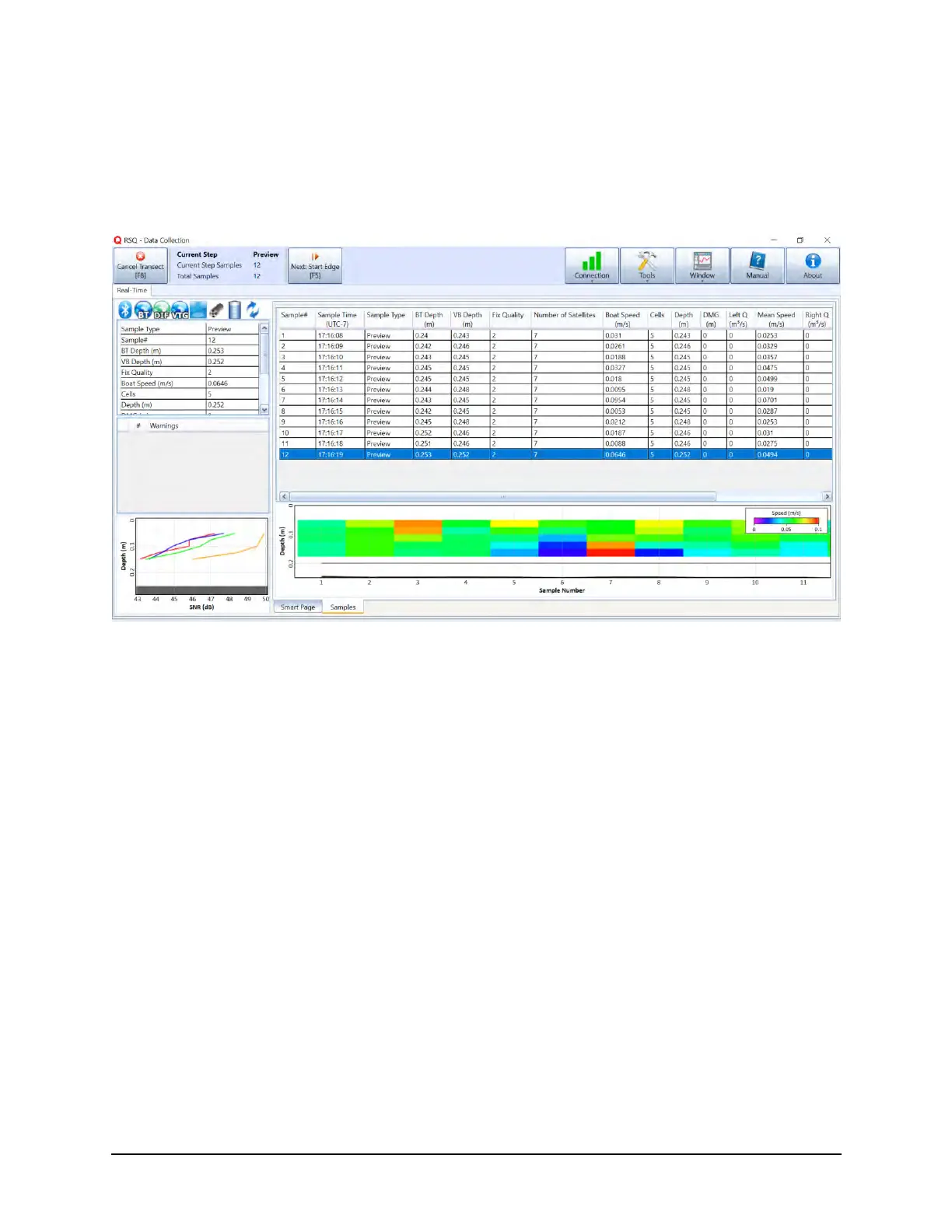

Figure 70. Start Sampling Preview
Ensure that all status icons and data appear reasonable for the site. Position the vessel
at the start edge of the transect. In general, edge data should contain at least 2 vertical
cells of valid data in order to proceed. Once the user is satisfied with the data preview,
they can proceed to begin the Start Edge collection.
7.10.4 Start Edge
Click the Next: Start Edge button (or use [F5]), highlighted in Figure 71.
