Yaesu FT-710 - Information Displayed on the Scope Screen; Scope Display Setting; Center;Cursor;Fix; Center

22

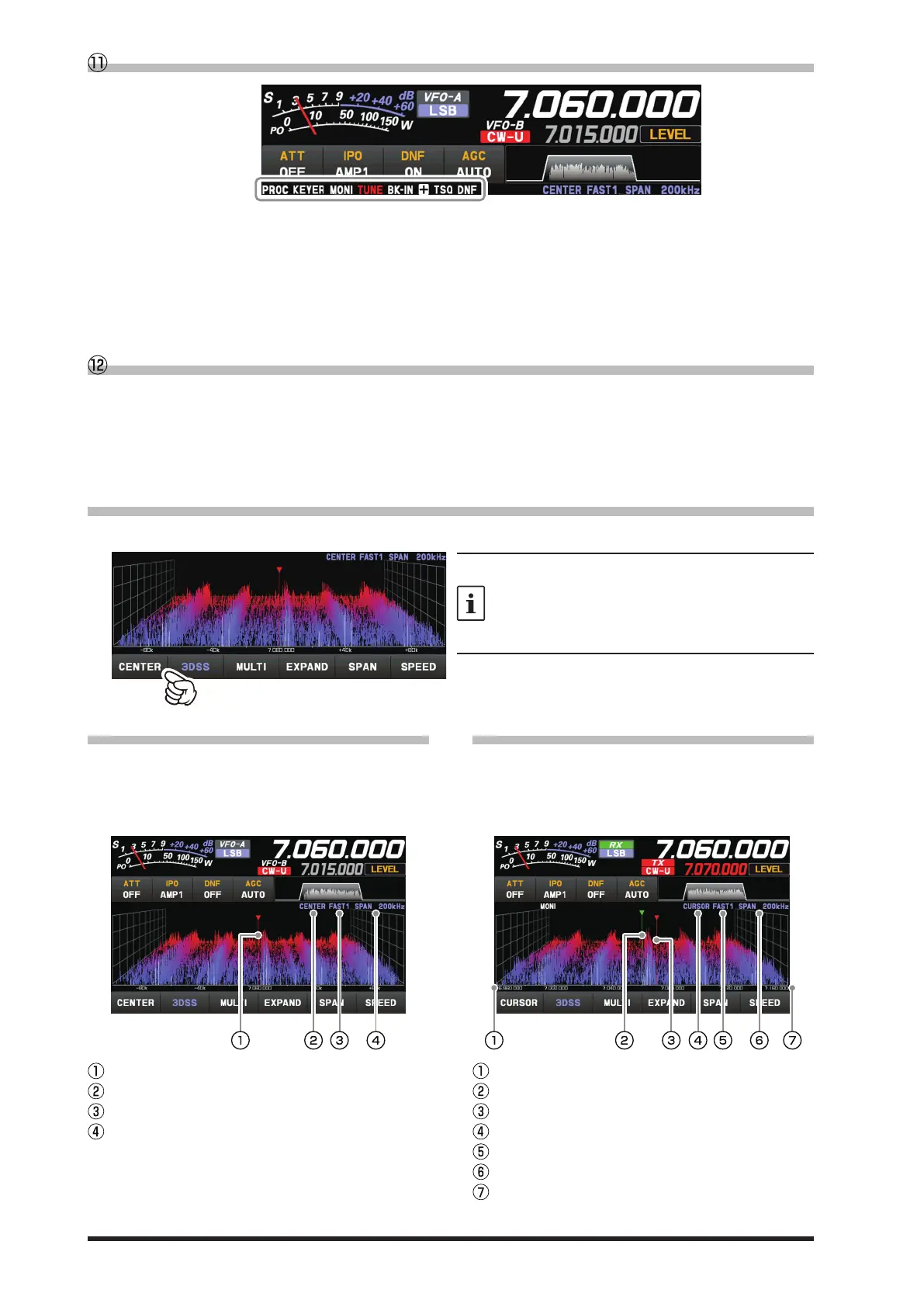

Information displayed on the scope screen
PROC
KEYER
MONI
TUNE
BK-IN
: Lights when the Speech function is activated.
: Lights when the Built-in electronic keyer is
activated.
: Lights when the MONITOR function is activated.
: Lights when the internal Automatic Antenna
Tuner is activated. Blinks during tuning.
: Lights when the CW Break-in function is activated.
+/－
ENC
TSQ
DNF
: Lights in plus (+) or negative (-) shift (repeater
operation).
: Lights when the tone encoder is operating.
: Lights during tone squelch operation.
: Lights when the DNF (Digital Notch Filter) is
activated.
Scope Display Setting
In addition to the conventional two-dimensional waterfall spectrum display, Yaesu has added the 3-Dimen-
sion Spectrum Stream (3DSS) color display. The constantly changing band conditions and signals are
depicted in real time and color. The frequency span is shown on the horizontal X axis, the vertical Y axis
depicts the signals and their strengths, and the time is represented on the receding Z axis. The FT-710
operator can intuitively grasp the band and signal conditions at any instant.
• CENTER/CURSOR/FIX
Switches the Spectrum Scope operation each time the key is touched.
• When the display area is touched, the receive
frequency is moved to that point.
• In CENTER mode, the frequency touched be-
comes the center.
• In CURSOR and FIX mode, the marker and the
receive frequency move to the touched position.
• CENTER
The receive frequency is always shown at the center
of the screen and spectrum display. The band spec-
trum is shown within the range set by “SPAN”. The
CENTER mode is convenient for monitoring the sig-
nal activity around the operating frequency.
Marker*
Current display mode (CENTER)
Sweep Speed
Scope Screen frequency span (display range).
*At factory shipment, marker display is ON.
• CURSOR
Monitors the spectrum within the range set with
“SPAN”. When the frequency (marker) exceeds the
upper limit or the lower limit of the range, the screen
is automatically scrolled and the status beyond the
setting range can be observed.
The lower limit frequency of the display area.
Marker* (Receive Frequency)
Marker* (Transmit Frequency)
Current display mode (CURSOR)
Sweep Speed
Scope Screen frequency span (display range).
The upper limit frequency of the display area.
*At factory shipment, marker display is ON.
