3-25
ENG

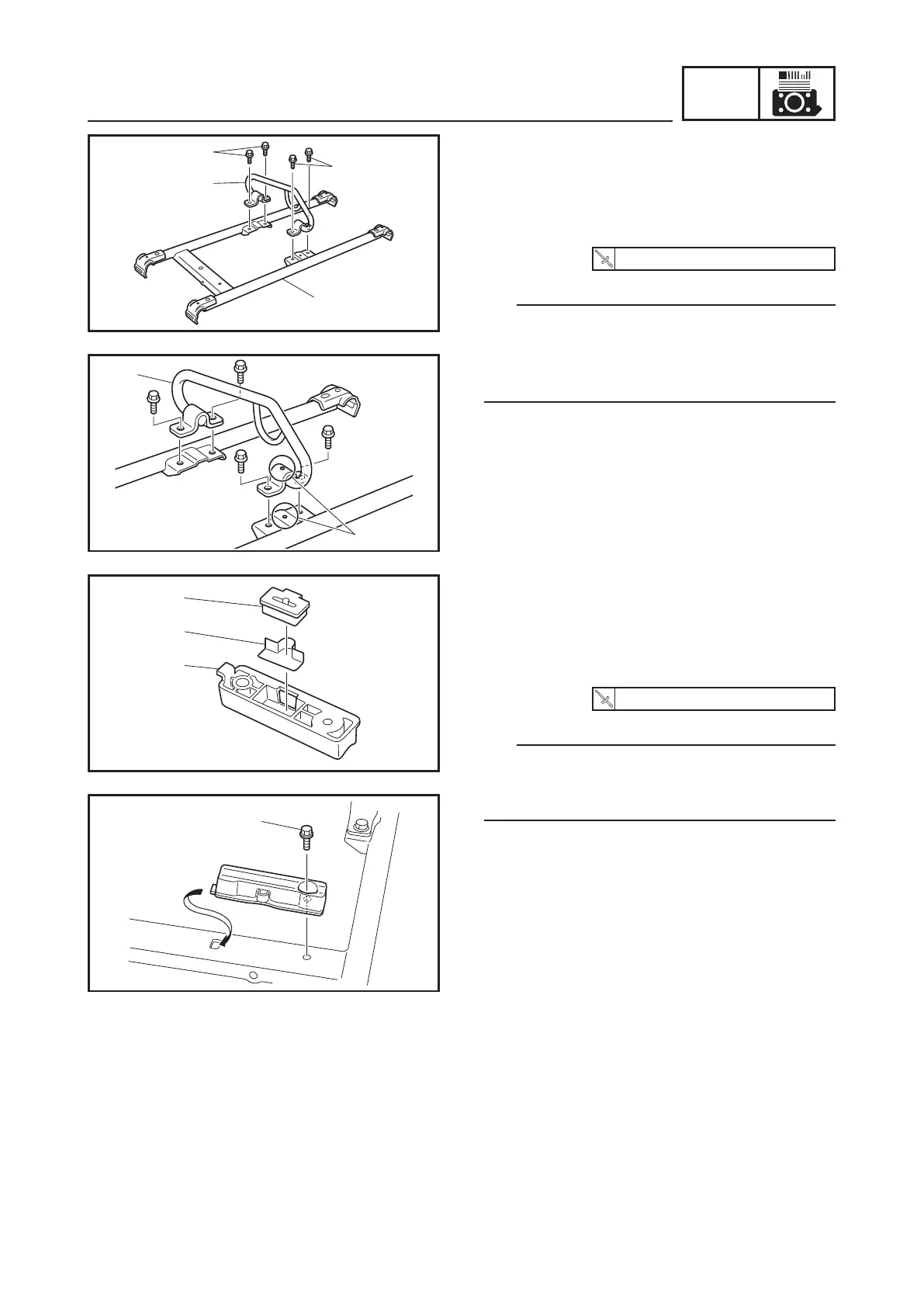

HANDLE AND WHEELS (FOR EF7200DE CAN)
INSTALLING THE HANDLE
1. Install:
9 Engine hanger 1
9 Carrier frame 2
9 Engine hanger bolts 3
16 Nm (1.6 m · kgf, 12 ft · lbf)
TIP
9 Fasten the engine hanger 1 to the carrier
frame 2 with the engine hanger bolts 3.
9 Match the punch marks a as shown in the
illustration.
2. Install:
9 Damper 1
9 Plate 2
9 Stopper 3
9 Stopper bolt 4
7 Nm (0.7 m · kgf, 5.1 ft · lbf)
TIP
Install the damper 1 and plate 2 into the
stopper 3, and tightly fasten it to carrier
frame with the stopper bolt 4.
1
2
3
3
a
1
1
2
3
4
To Next Page
