Yamaha F90D - Page 55

6D81G11
4-10
1
2
3
4
5
6
7
8
9

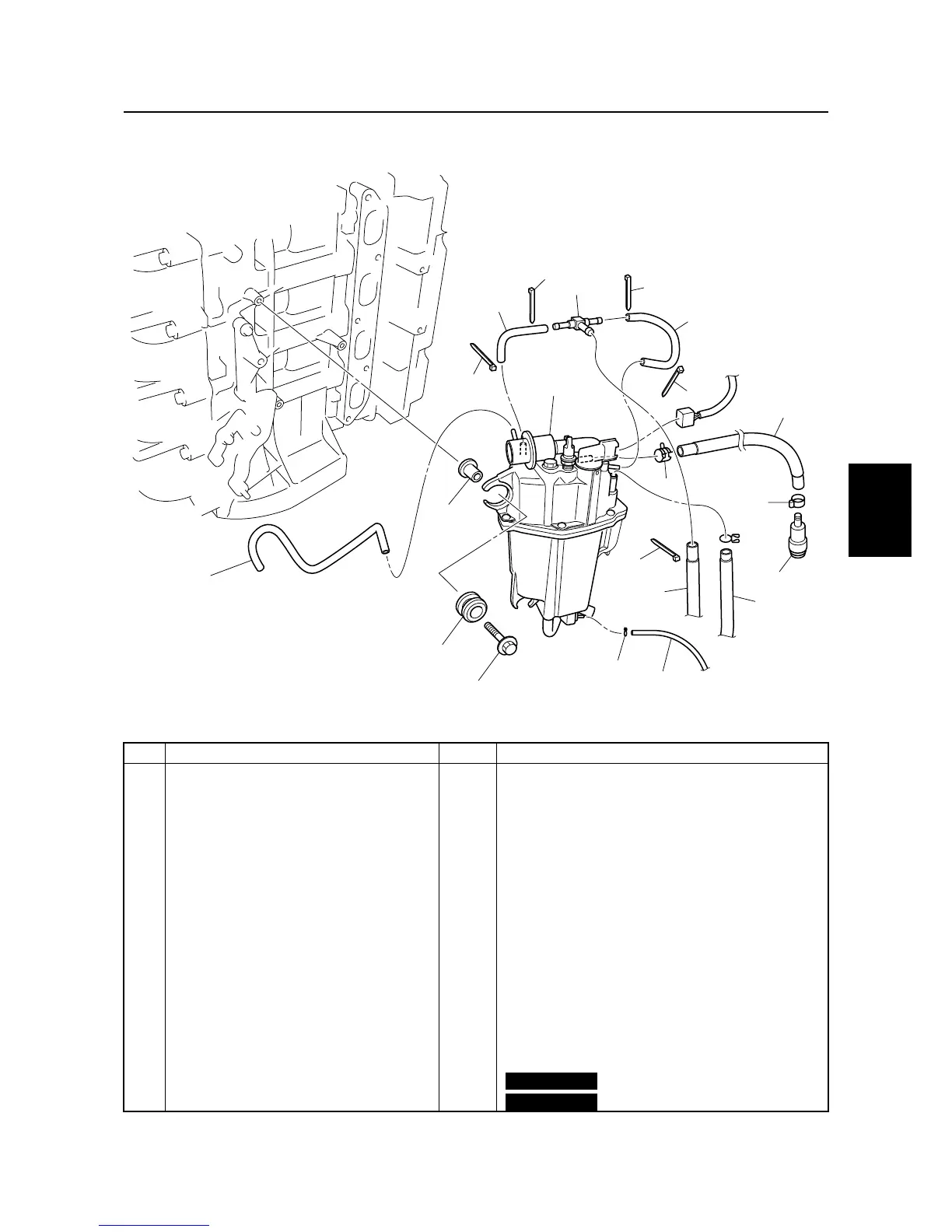

Vapor separator
4
No. Part name Q’ty Remarks
1 Vapor separator 1
2Bolt 3 M6
×
30 mm
3Grommet 3
4 Collar 3
5 Fuel hose 1
6 Fuel inlet hose 1
7Hose 1
8 Joint 1
9Hose 1
10 Hose 1
11 Hose 1
12 Hose 1
13 Clamp 1
14 Clamp 1
15 Quick connector 1
16 Clamp 1
Not reusable
17 Plastic tie 5
Not reusable
S6D84070
17
10
17
17
17
16
15
6
7
3
4
11
1
2
14
17
12
13
5
8
9
Intake manifold / Vapor separator
