Yamaha F90D - Page 56

FUEL

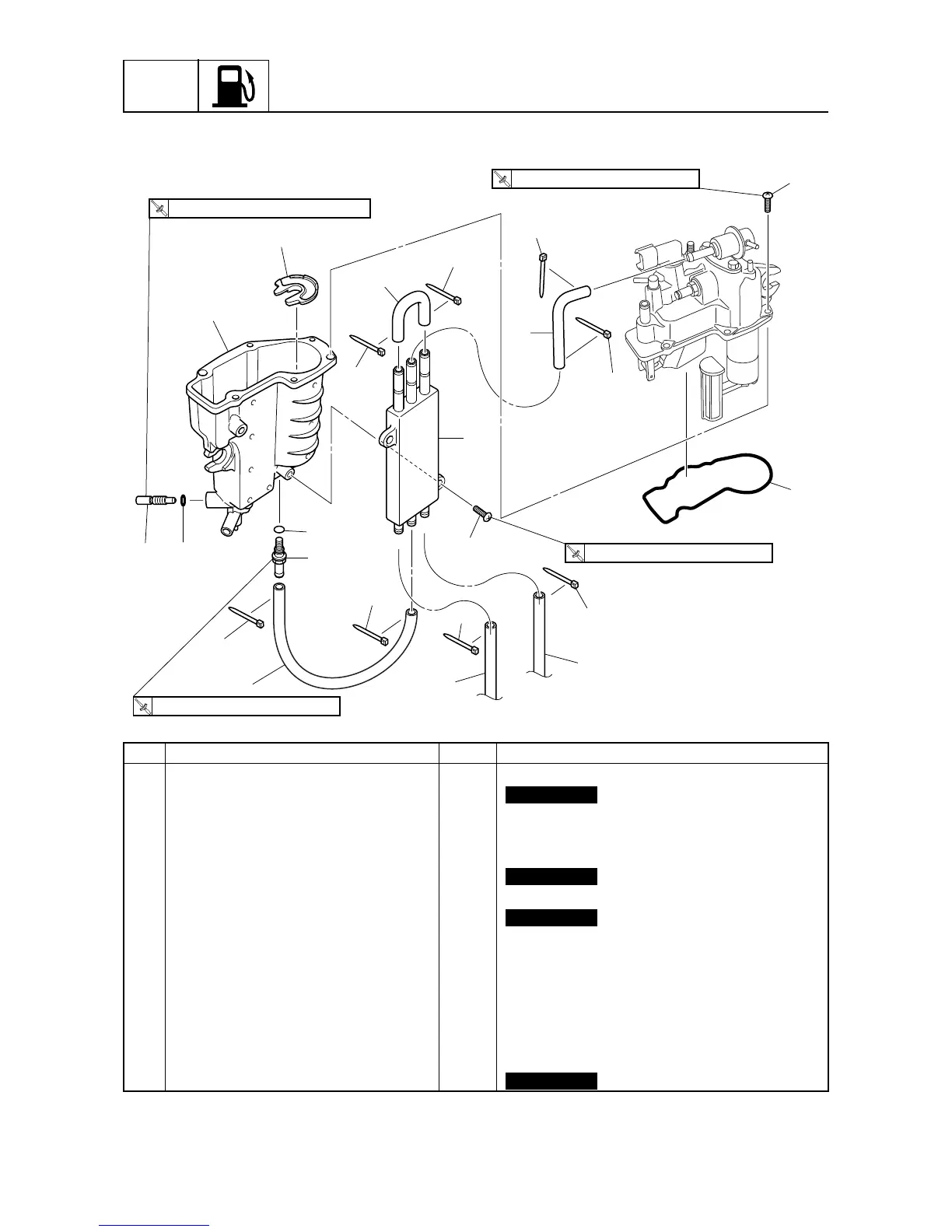

Fuel system
4-11
6D81G11
4
No. Part name Q’ty Remarks
1Screw 6 ø5
×
14 mm
2Gasket 1
Not reusable
3 Float chamber 1
4Damper 1
5Drain screw 1
6O-ring 1
Not reusable
7 Joint screw 1
8O-ring 1
Not reusable
9 Fuel hose 1
10 Fuel cooler 1
11 Screw 2 ø6
×
15 mm
12 Fuel hose 1
13 Hose 1
14 Hose 1
15 Hose 1
16 Plastic tie 8
Not reusable
S6D84080
1
16
16
16
1616
14
15
16
16
9
8
6
3
4
5
7
10
11
13
12
16
2
T
R
.
.
3 N
·
m (0.3 kgf
·
m, 2.2 ft
·
Ib)
T
R
.
.
3 N
·
m (0.3 kgf
·
m, 2.2 ft
·
Ib)
T
R
.
.
1.5 N
·
m (0.15 kgf
·
m, 1.1 ft
·
lb)
T
R
.
.
4 N
·
m (0.4 kgf
·
m, 3.0 ft
·
Ib)
