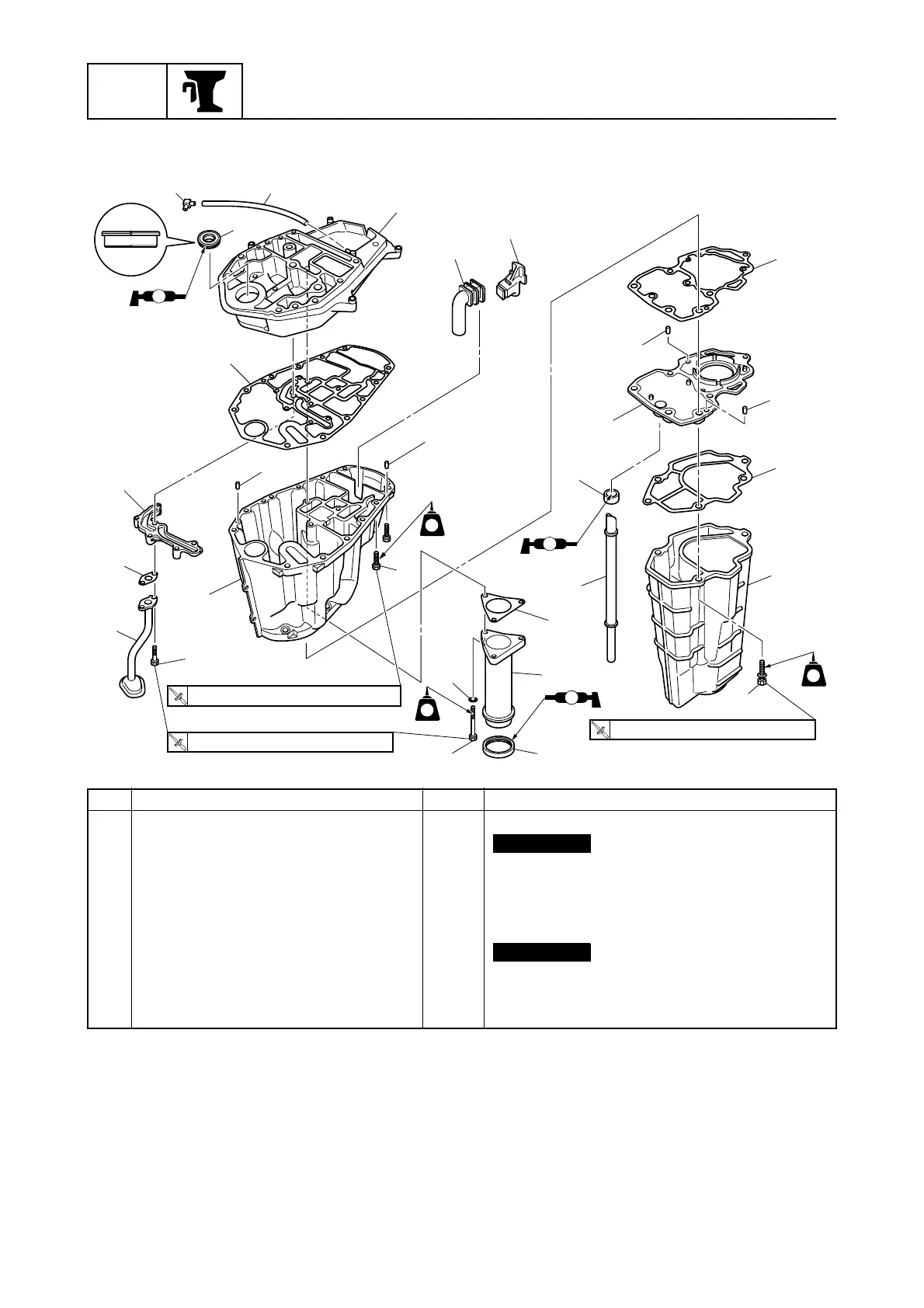

Yamaha FT60D - Page 214

BRKT
Bracket unit
7-17
6C13G11
7
No. Part name Q’ty Remarks
18 Rubber seal 1
19 Gasket 1
Not reusable
20 Plate 1
21 Dowel 2
22 Grommet 1
23 Pipe 1
24 Gasket 1
Not reusable
25 Muffler 1
26 Bolt 6 M6
×
24 mm
27 Bolt 4 M8
×
30 mm
S6C17100
4
9
5
13
6
10
7
16
17
22
20
21
23
8
15
18
14
26
3
1
2
21
24
25
19
13
27
12
11
AA
LT
572
LT
AA
LT
572
LT
AA
LT
572
LT
T
R
.
.
10 N
·
m (1.0 kgf
·
m, 7.4 ft
·
Ib)
T
R
.
.
10 N
·
m (1.0 kgf
·
m, 7.4 ft
·
Ib)
T
R
.
.
27 N
·
m (2.7 kgf
·
m, 20.0 ft
·
Ib)
