Yamaha QL5 Reference Manual

Monitor and Cue functions
Reference Manual
107
C CUE LEVEL knob
Indicates the output level of the cut out. You can adjust the values by using the [TOUCH
AND TURN] knobs.
D CUE OUT PATCH button
Press this button to open the PORT SELECT window, in which you can select an output
port to patch to the cue out L/R channels.
*1. QL1: 1-32
*2. QL1: 1-8
 FADER CUE RELEASE field
Move the fader of the channel that is cued to set the FADER CUE RELEASE function for
releasing the cue.
E ON button
Switches the FADER CUE RELEASE function on or off.
F THRESHOLD knob
Sets the fader value for releasing the cue. If the fader value exceeds the value set with
this knob, the cue is released.

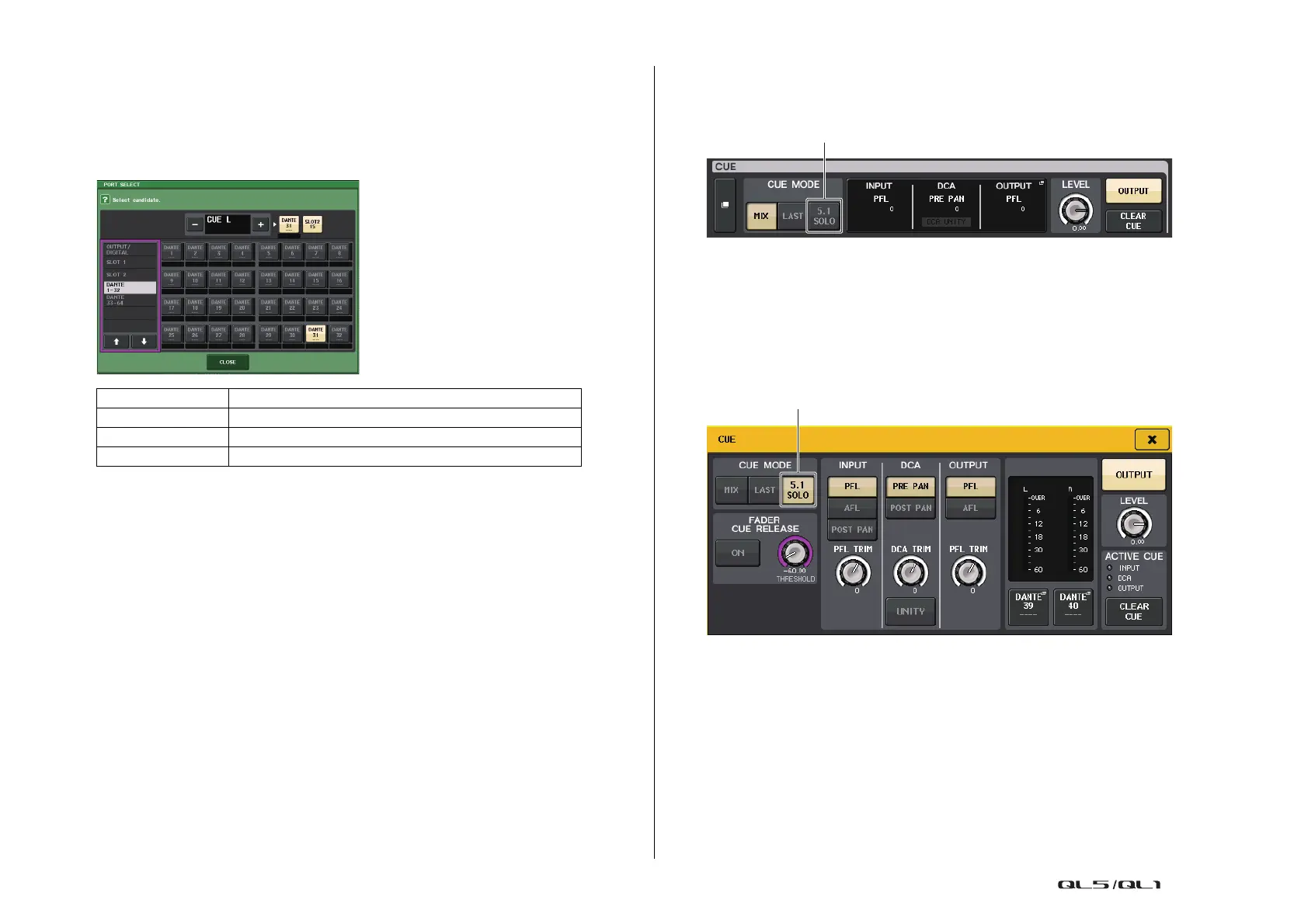

MONITOR screen (CUE field in Surround mode)
If you set a bus to Surround mode in BUS SETUP, the CUE field in the MONITOR screen
appears as shown below.
1 5.1. SOLO Button
Used to cue only the input channels to be used in the 5.1 channel mix. Outputs,
PLAYBACK OUT, and EFFECT cannot be cued.
CUE screen (Surround mode)
If you set a bus to Surround mode in BUS SETUP, the CUE screen (where you can make
detailed cue settings) appears as shown below.
1 5.1. SOLO Button
5.1 SOLO is only for input channels. Outputs, PLAYBACK OUT, and EFFECT cannot be
cued.
DANTE1–64
*1
Output channels 1–64 to audio network
*1
OMNI1–16
*2
OMNI OUT jacks 1–16
*2
DIGI OUT L/R DIGITAL OUT jack on the QL unit
SLOT1-1–SLOT2-16 Output channels 1–16 of an I/O card installed in slots 1–2
1
1

Yamaha QL5 Specifications

General

DJ mixer	-
Product color	Black
Video capability	No
Channels quantity	72 channels
Supported sample rates	44.1, 48 kHz
Digital sound processing	- bit
Phantom power	48 V
AC input voltage	100-240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	200 W
Total Harmonic Distortion (THD)	0.05 %

Weight and Dimensions

Depth	563 mm
Width	828 mm
Height	272 mm
Weight	21800 g
