Yamaha QL5 Reference Manual

I/O devices and external head amps
Reference Manual
152

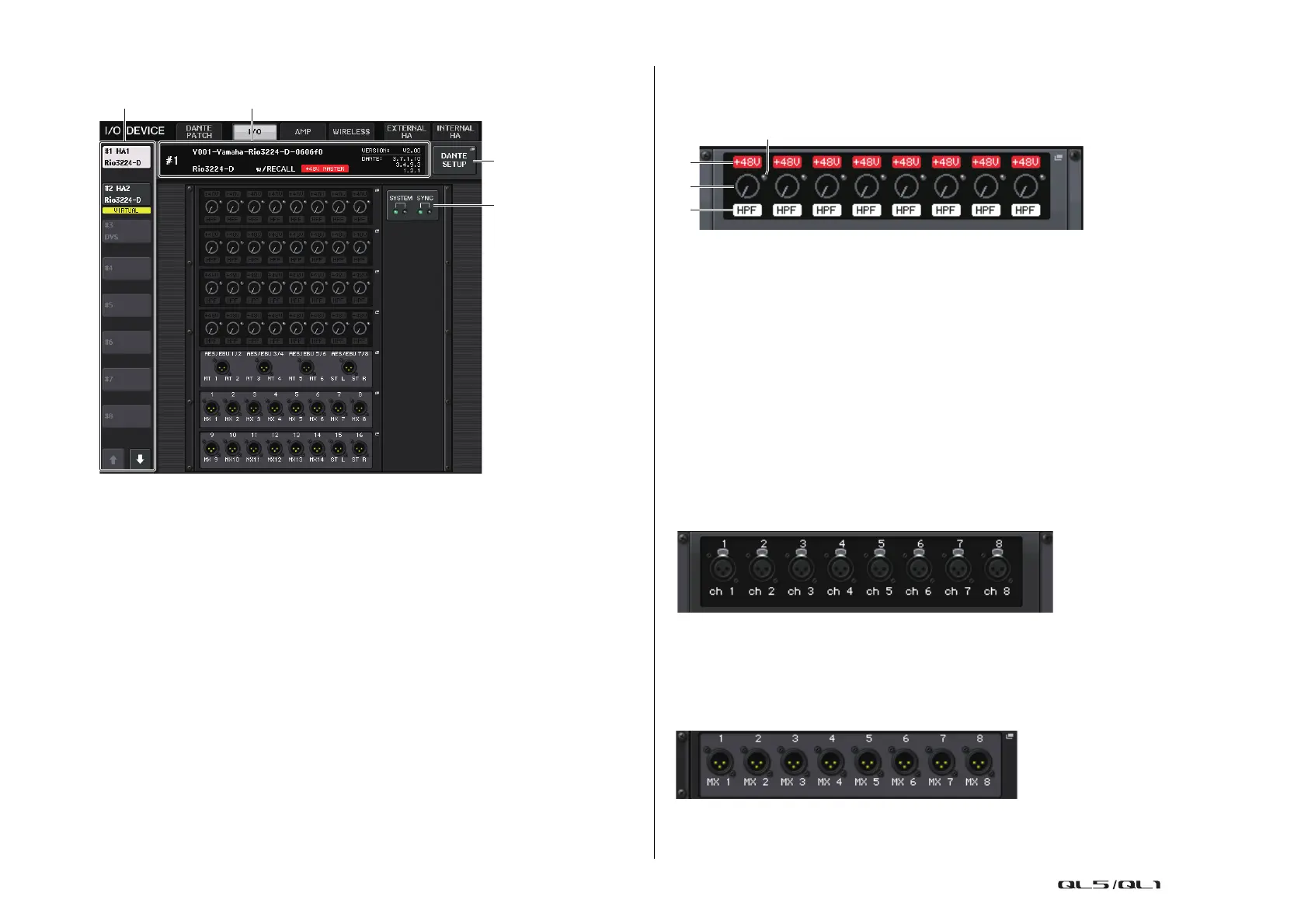

I/O DEVICE screen (I/O page)
1 Display switch buttons
Press one of these buttons to view the corresponding I/O device. If you press and hold
down this button, all LEDs of the corresponding I/O device will blink.
For more information about VIRTUAL/CONFLICT/DUPLICATE displayed below this
button, refer to
1 on page 149, “I/O device list.”
2 ID/Model name display
This shows the ID number, model name, and version of the I/O device.
If the WITH RECALL button is turned ON in the REMOTE HA SELECT screen, “w/RECALL”
is displayed. If the +48V MASTER switch for the mounted device is turned ON,“+48V
MASTER” is displayed.
3 DANTE SETUP button
Press this button to open the DANTE SETUP window, in which you can make settings
for the audio network.
4 SYSTEM/SYNC indicators
Error, warning, and information messages are displayed. Refer to the list (page 228) for
detailed information about messages.
 HA display
This shows the HA settings of the I/O device. Press this area to open the I/O DEVICE HA
window, in which you can make detailed head amp settings.
If you press the [SEL] key of an input channel, the corresponding port will light. (It does not
light for external QL series consoles.)
5 Analog GAIN knob
Indicates the analog gain setting. This screen is only for display; the value cannot be
edited.
6 +48V indicator
Indicates the phantom power (+48V) on/off status for each port.
7 OVER indicator
Warns you when the input signal is clipping.
8 HPF indicator
Indicates the high-pass filter on or off status for each port.
 INPUT display
This shows the input settings of I/O devices not assigned to REMOTE HA ASSIGN.
If you press the [SEL] key of an input channel, the corresponding port will light. (It does not
light for external QL series consoles.)
 OUTPUT display
This shows the output settings of the I/O device. Press here to access the OUTPUT PATCH
window, where you can make output port settings for the I/O device.
If you press the [SEL] key of an output channel, the corresponding port will light. (It does not
light for external QL series consoles.)
1 2
4
3
6
8
5
7

Yamaha QL5 Specifications

General

DJ mixer	-
Product color	Black
Video capability	No
Channels quantity	72 channels
Supported sample rates	44.1, 48 kHz
Digital sound processing	- bit
Phantom power	48 V
AC input voltage	100-240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	200 W
Total Harmonic Distortion (THD)	0.05 %

Weight and Dimensions

Depth	563 mm
Width	828 mm
Height	272 mm
Weight	21800 g
