Setup

Reference Manual

183

 BUS SETUP field

This field enables you to make bus-related settings.

D BUS SETUP button

Press this button to open the BUS SETUP window, in which you can make MIX bus/

MATRIX bus-related settings.

E SURROUND SETUP button

Press this button to call up the SURROUND SETUP screen. In this screen, you can switch

the bus settings from Stereo mode to Surround mode. If set to Stereo mode, the bus

settings for MIX1-6 will be grayed out. If you press the 5.1 SURROUND button to switch

to Surround mode, you can then set the bus settings for MIX1-6.

Assign channels to MIX 1 - 6 for surround output. You can press the APPLY button to

open the CONFIRMATION dialog box. Press the OK button to set the bus to Surround

mode.

NOTE

• When you switch from Stereo mode to Surround mode, the signals for MIX1/2, 3/4, and 5/6

change to MONO x2.

• When you switch from Surround mode to Stereo mode, the signals for MIX1/2, 3/4, and 5/6

remain as MONO x2.

• When you switch from Stereo mode to Surround mode, the STEREO and MONO(C) inserts are

turned off.

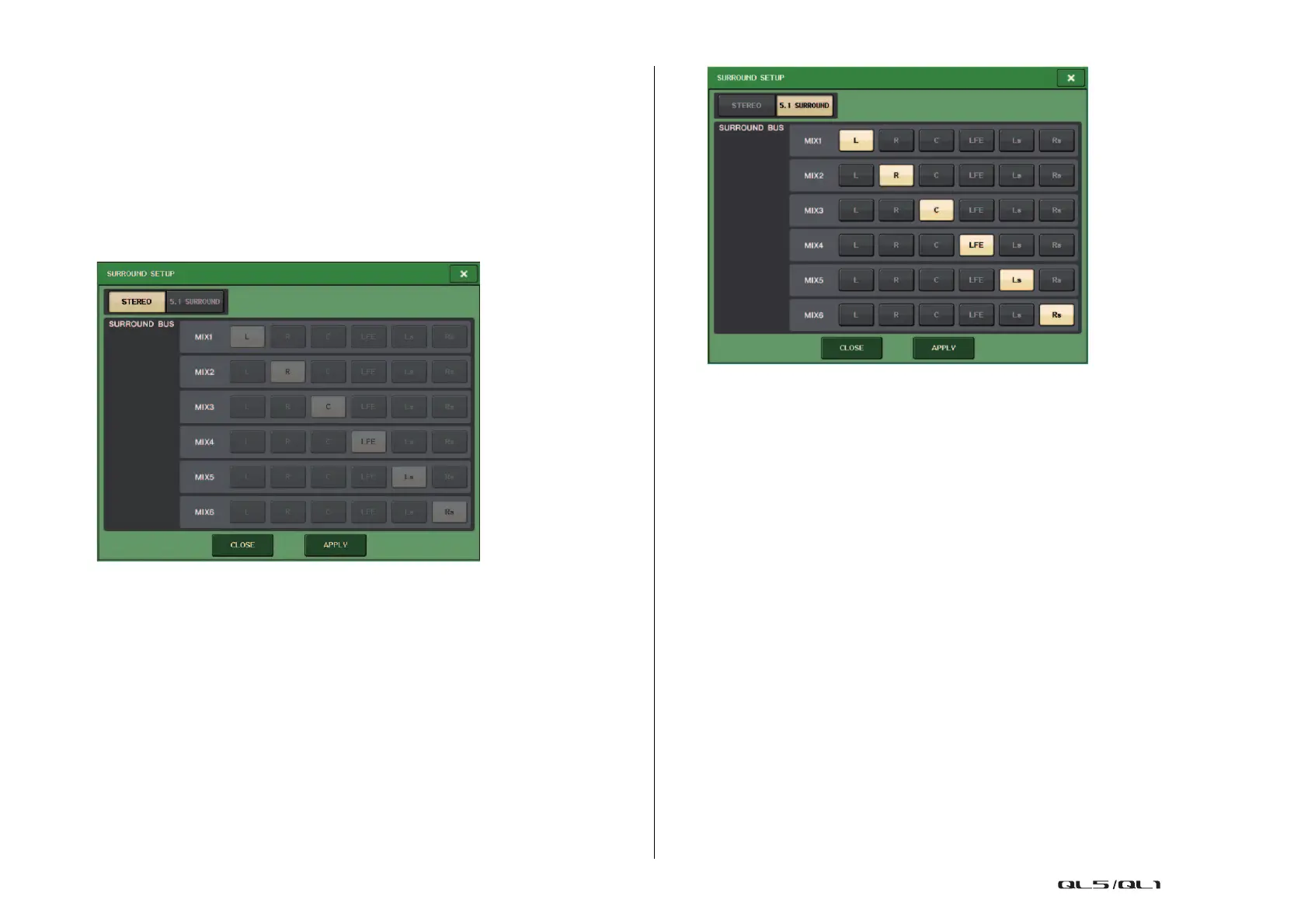

For Stereo mode

For Surround mode

Yamaha QL5 Specifications

General

DJ mixer	-
Product color	Black
Video capability	No
Channels quantity	72 channels
Supported sample rates	44.1, 48 kHz
Digital sound processing	- bit
Phantom power	48 V
AC input voltage	100-240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	200 W
Total Harmonic Distortion (THD)	0.05 %
