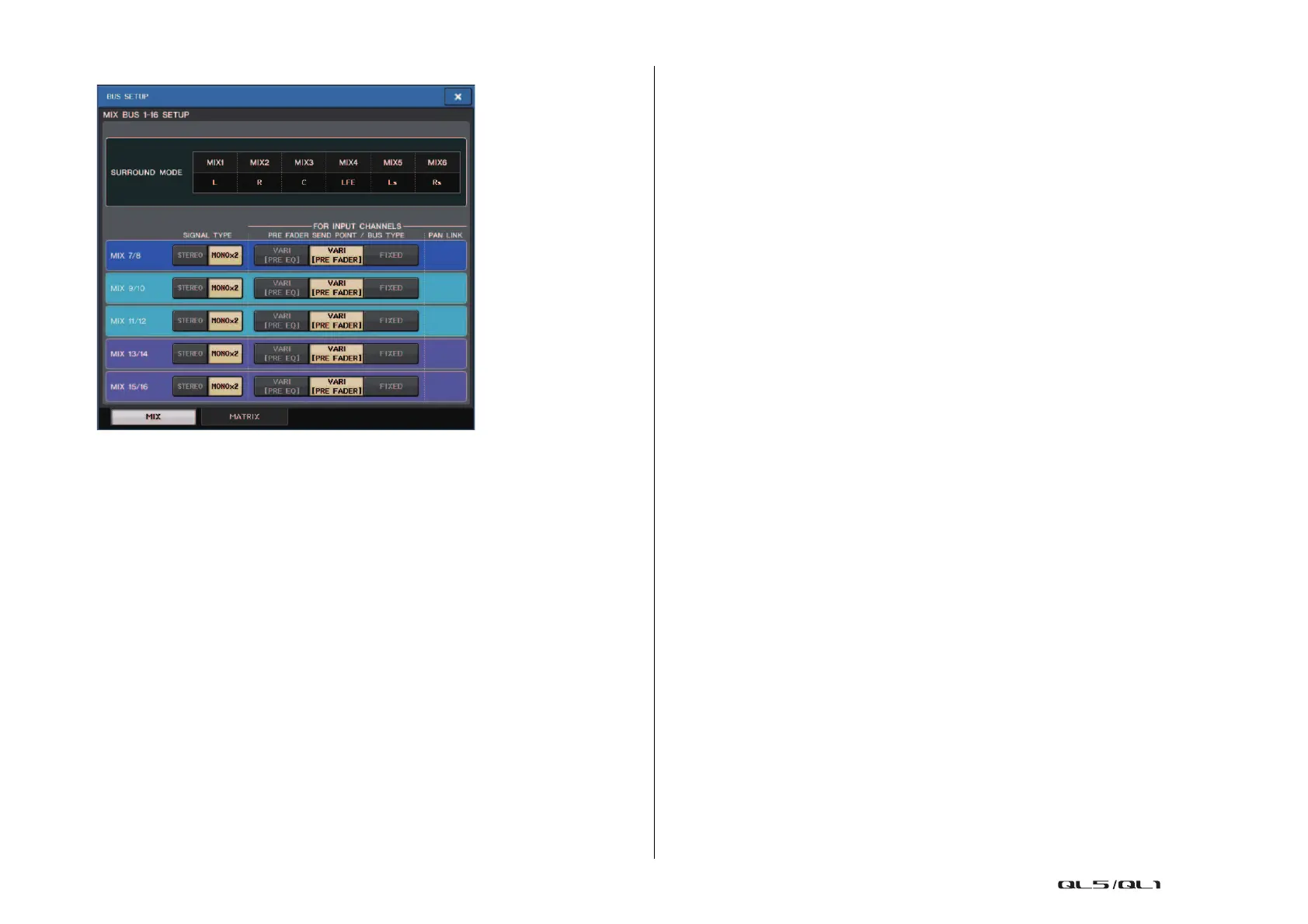

If you set Surround mode, the BUS SETUP screen appears as shown below.
DATE/TIME button
Press this button to open the DATE/TIME window, in which you can set the date and time.
NETWORK button
Press this button to open the NETWORK window, in which you can set the network address.
Indicator field
This field displays various information about the console.
F BATTERY indicator
Indicates the status of the internal battery.
NOTE
The LOW or NO indication will appear if the battery runs down. In this case, immediately contact
your Yamaha dealer or a Yamaha service center listed at the end of the operating manual
(separate document) to have the backup battery replaced.
G POWER SUPPLY indicator
Indicates the currently-running power supply.
• INT .........................Internal
H Version indicator
Indicates the version number of the CPU and DANTE module.
CONSOLE LOCK button
This button executes the Console Lock function. If the console password has been set,
pressing this button will open the AUTHORIZATION window. Enter the correct password to
execute Console Lock.
If the console password has not been set, pressing this button will execute Console Lock
immediately.
CONTRAST/BRIGHTNESS field
This field enables you to set the LCD brightness and contrast.
I BANK A/BANK B buttons
Select a bank to which you want to save the brightness and contrast settings. You can
save two different settings in bank A and B, and switch between them if desired.
J CONTRAST NAME knob
Adjusts the contrast of the channel name display.
K BRIGHTNESS NAME knob
Adjusts the brightness of the channel name display.
BRIGHTNESS CH COLOR knob
Adjusts the brightness balance of the channel color and the channel name display.
BRIGHTNESS SCREEN knob
Adjusts the brightness of the display.
BRIGHTNESS PANEL knob
Adjusts the brightness of the panel LEDs.
BRIGHTNESS LAMP knob
Adjusts the brightness of the lamp connected to the LAMP connector.
