Setup
Reference Manual
224
Mounting an I/O device on the Dante audio network
Here’s how to select which of the multiple I/O devices on the Dante audio network will be
mounted so that they can be used. Up to 24 units can be mounted for one QL series console.

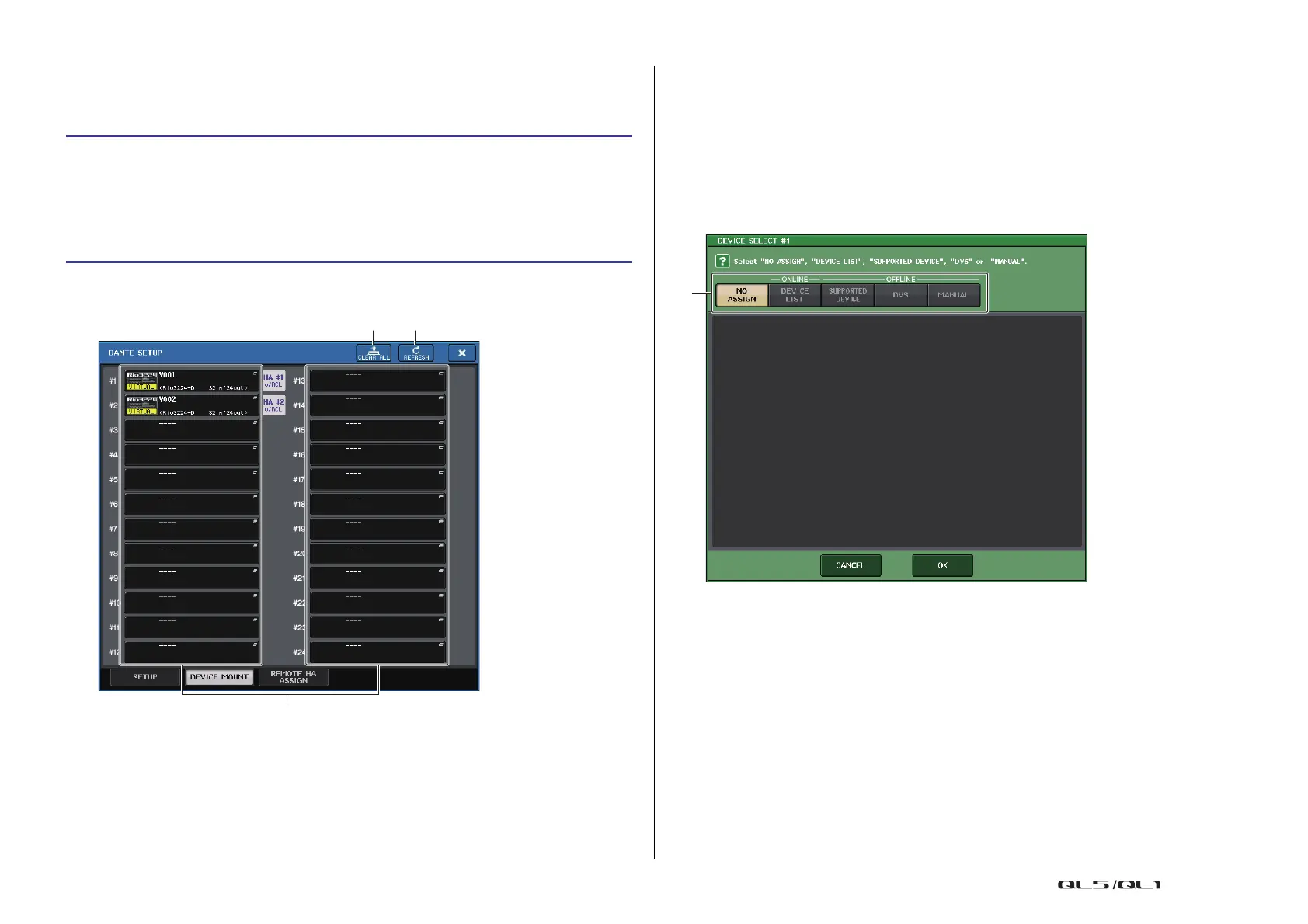

DANTE SETUP window (DEVICE MOUNT page)
1 CLEAR ALL button
Clears all I/O devices in the list to an unmounted state.
2 REFRESH button
Updates the displayed list of I/O devices on the Dante audio network.
3 I/O device select buttons
Press one of the buttons to open the DEVICE SELECT window. The upper line of the
button shows the device label. The lower line of the button shows the model name and
the number of inputs and outputs. If no device has been mounted, the upper row will
indicate “---” and the lower row will show nothing.
For more information on VIRTUAL/CONFLICT/DUPLICATE shown below these buttons,
refer to
1 on page 149, “I/O device list.”
DANTE SETUP window
1 Setup method select buttons
Choose one of the following methods for mounting the I/O device.
• NO ASSIGN ........................ Not mounted
• DEVICE LIST...................... Select and mount from the device list
• SUPPORTED DEVICE ....... Select and mount a supported device
• DVS..................................... Enter a device label and mount (only for DVS)
• MANUAL............................. Enter a device label and mount
STEP
1. Press the DEVICE MOUNT tab in the lower part of the DANTE SETUP window.
2. Press the I/O device select button.
3. In the DEVICE SELECT window, press the setup method select button.
4. Use the [TOUCH AND TURN] knob to make settings.
5. When you have finished making settings, press the OK button to close the window.
