Yamaha QL5 Reference Manual

Setup
Reference Manual
225

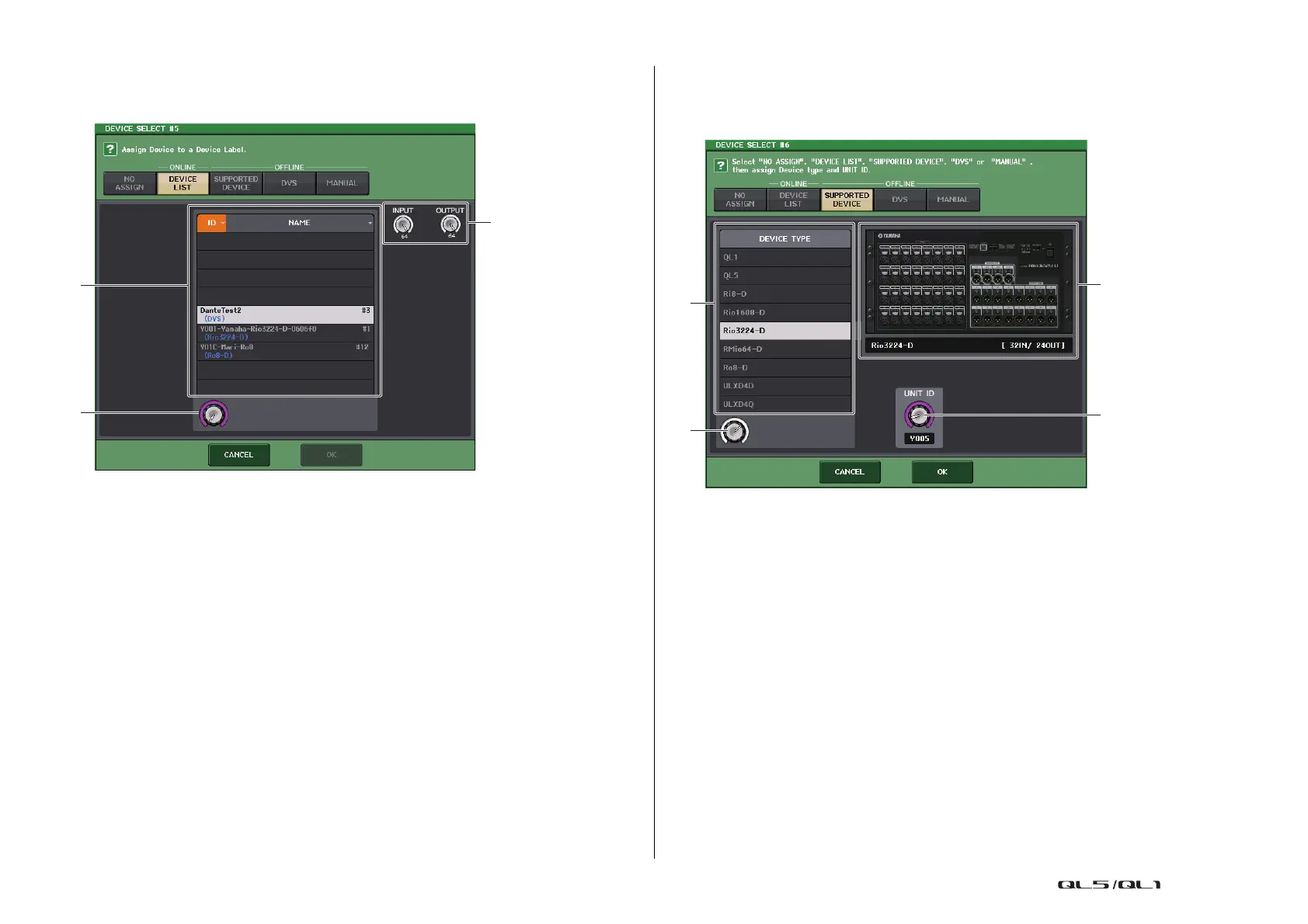

 When the setup method select button is DEVICE LIST
To mount by choosing from a list of the I/O devices on the Dante audio network, press the
DEVICE LIST button to display the DEVICE LIST field.
1 DEVICE LIST
Shows a list of the I/O devices on the Dante audio network.
From the list, choose the I/O device that you want to mount.
2 DEVICE LIST select knob
Use the [TOUCH AND TURN] knob to select the I/O device that you want to mount.
3 INPUT/OUTPUT knobs
Use the [TOUCH AND TURN] knob to specify the number of inputs and outputs on the
Dante audio network. If the selected I/O device is supported by the QL series, the inputs
and outputs will be entered and displayed automatically.
 When the setup method select button is SUPPORTED DEVICE
If you want to select and mount an I/O device that is supported by the QL series, press the
SUPPORTED DEVICE button to see the SUPPORTED DEVICE field. These settings can be
made even when not connected to a Dante audio network.
1 DEVICE TYPE
This area shows a list of the I/O device types that are supported by the QL series.
From the list, choose the type of I/O device that you want to mount.
2 DEVICE TYPE select knob
Use the [TOUCH AND TURN] knob to select the type of I/O device that you want to
mount.
3 I/O device indication
This area shows the selected I/O device.
The upper line shows the front panel of the I/O device.
The lower line shows the model name and the number of inputs and outputs.
4 UNIT ID knob
Use the [TOUCH AND TURN] knob to specify the UNIT ID.
The indicator shows the UNIT ID.
1
2
3
1
2
3
4

Yamaha QL5 Specifications

General

DJ mixer	-
Product color	Black
Video capability	No
Channels quantity	72 channels
Supported sample rates	44.1, 48 kHz
Digital sound processing	- bit
Phantom power	48 V
AC input voltage	100-240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	200 W
Total Harmonic Distortion (THD)	0.05 %

Weight and Dimensions

Depth	563 mm
Width	828 mm
Height	272 mm
Weight	21800 g
