CONNECTIONS
Connecting speakers
En 23
■

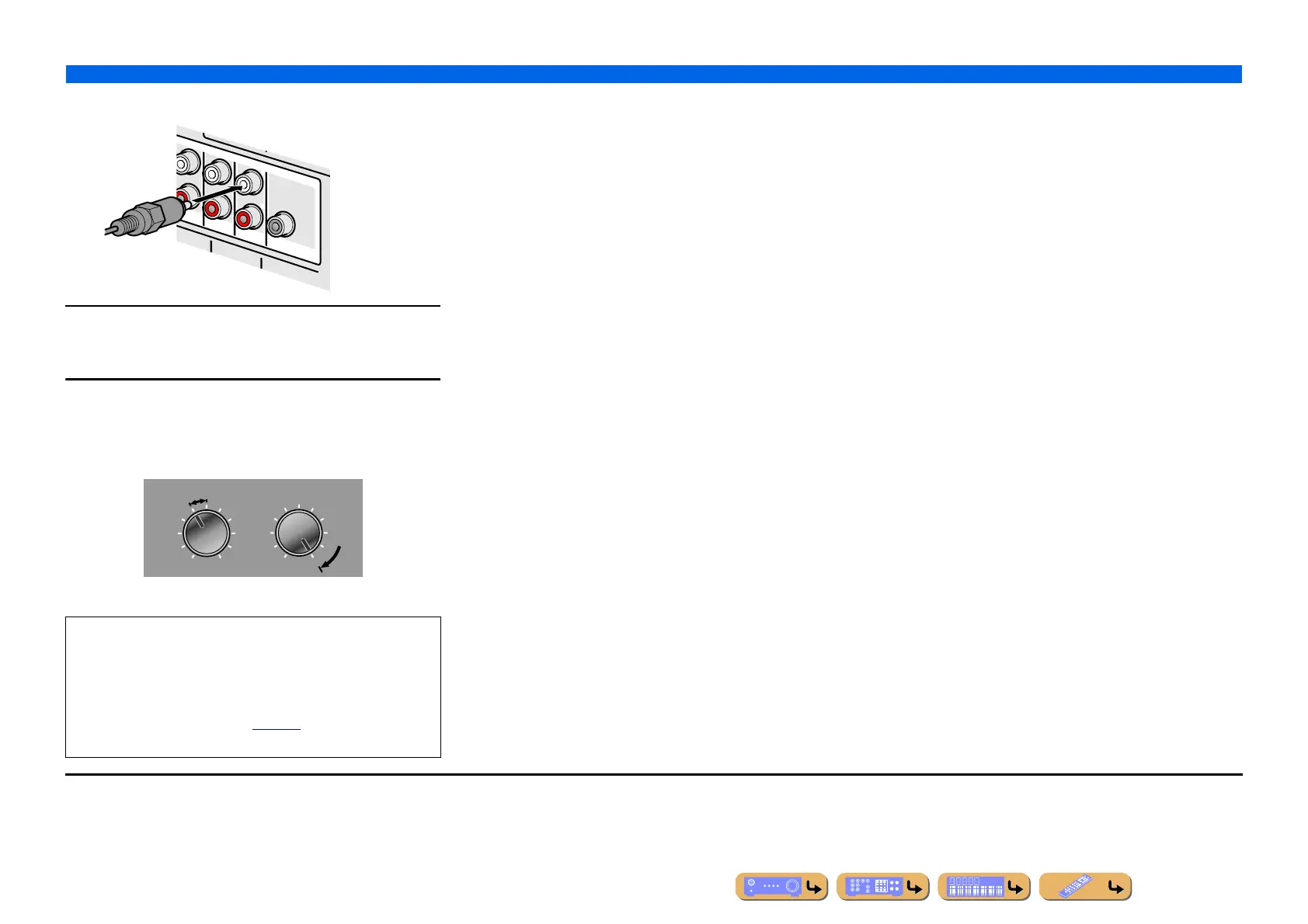

Connecting the subwoofers
1
Connect the subwoofer input jack to the
SUBWOOFER 1 and/or 2 jack on this unit with an
audio pin cable. J1
2
Set the subwoofer volume as follows.
Volume: Set to approximately half volume (or slightly less than
half).
Crossover frequency (if available): Set to maximum.
NOTE
After connection, applying this setting to this unit is required to
activate all speaker connections. With using “Power Amp
Assign” function, you can easily apply the speaker
configuration.
Refer to “Power Amp Assign” (☞
p. 116) for details on using
“Power Amp Assign” function.
(
SIN
G
LE
)
(
REAR
)
SUBWOOFER
(
FR
O
NT
)
PRE OUT
C
EN
TE
R
C
E
NTE
R
SUR. BACK
SURRUND
1
2
VOLUME
MIN MAX
CROSSOVER/
HIGH CUT
MIN MAX
Subwoofer examples
J
1 : When using the only one subwoofer, connect the subwoofer to the
SUBWOOFER1 jack.
To Next Page
