FRONT WHEEL AND BRAKE
4. Check:
• brake drum inner surface
Oil deposits -»Clean.
Remove the oil with a rag soaked in lac-
quer thinner or solvent.
Scratches -» Repair.
Lightly and evenly polish the scratches
with an emery cloth.
5. Check:
•brake camshaft
Damage/wear -» Replace.
EAS00537

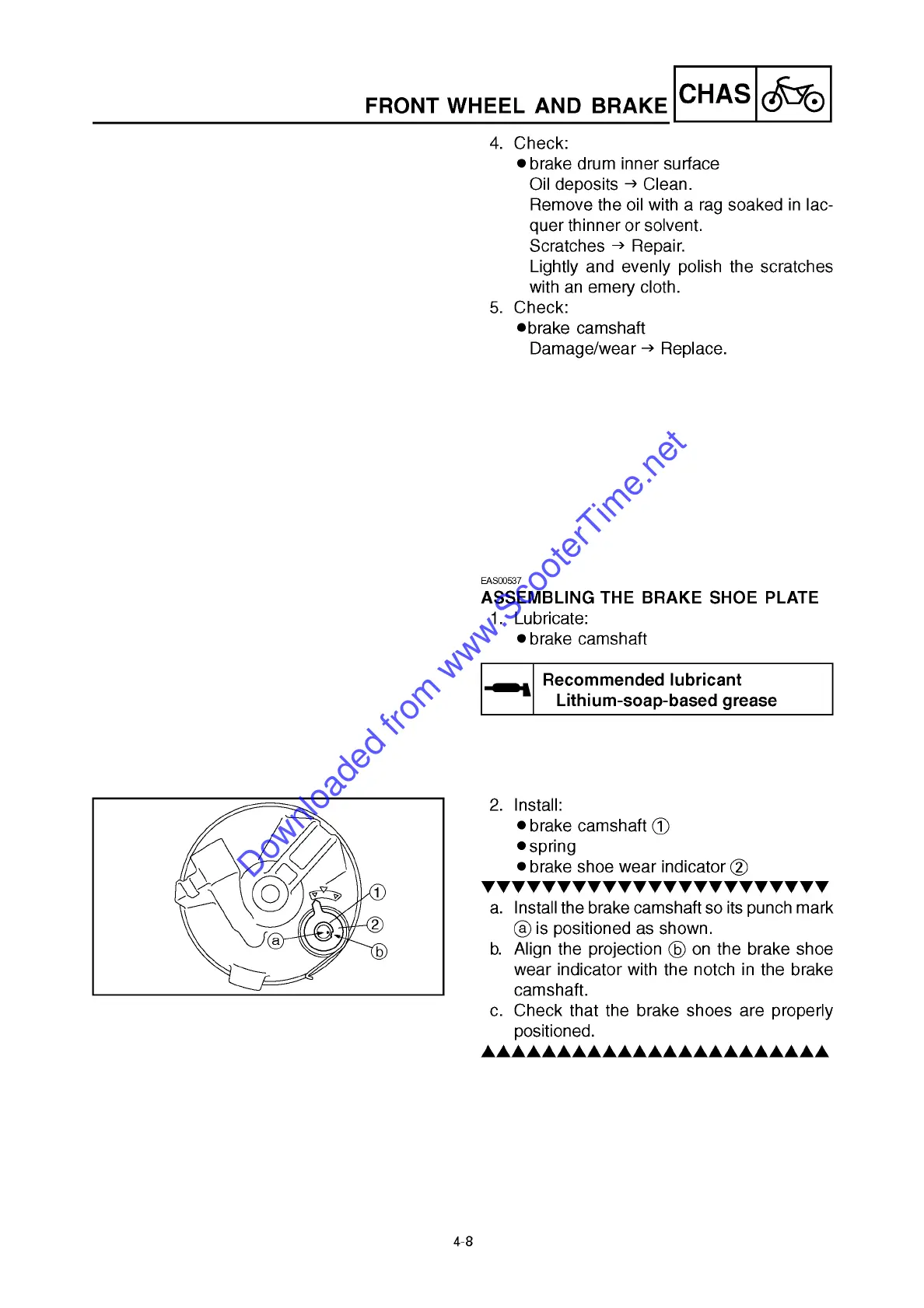

ASSEMBLING THE BRAKE SHOE PLATE
1. Lubricate:
8brake camshaft
Recommended lubricant
Lithium-soap-based grease
2. Install:
8brake camshaft 1
8spring
8brake shoe wear indicator 2
•••••••••••••••••••••••
a. Install the brake camshaft so its punch mark
a is positioned as shown.
b. Align the projection b on the brake shoe
wear indicator with the notch in the brake
camshaft.
c. Check that the brake shoes are properly
positioned.
•••••••••••••••••••••••
4-8
